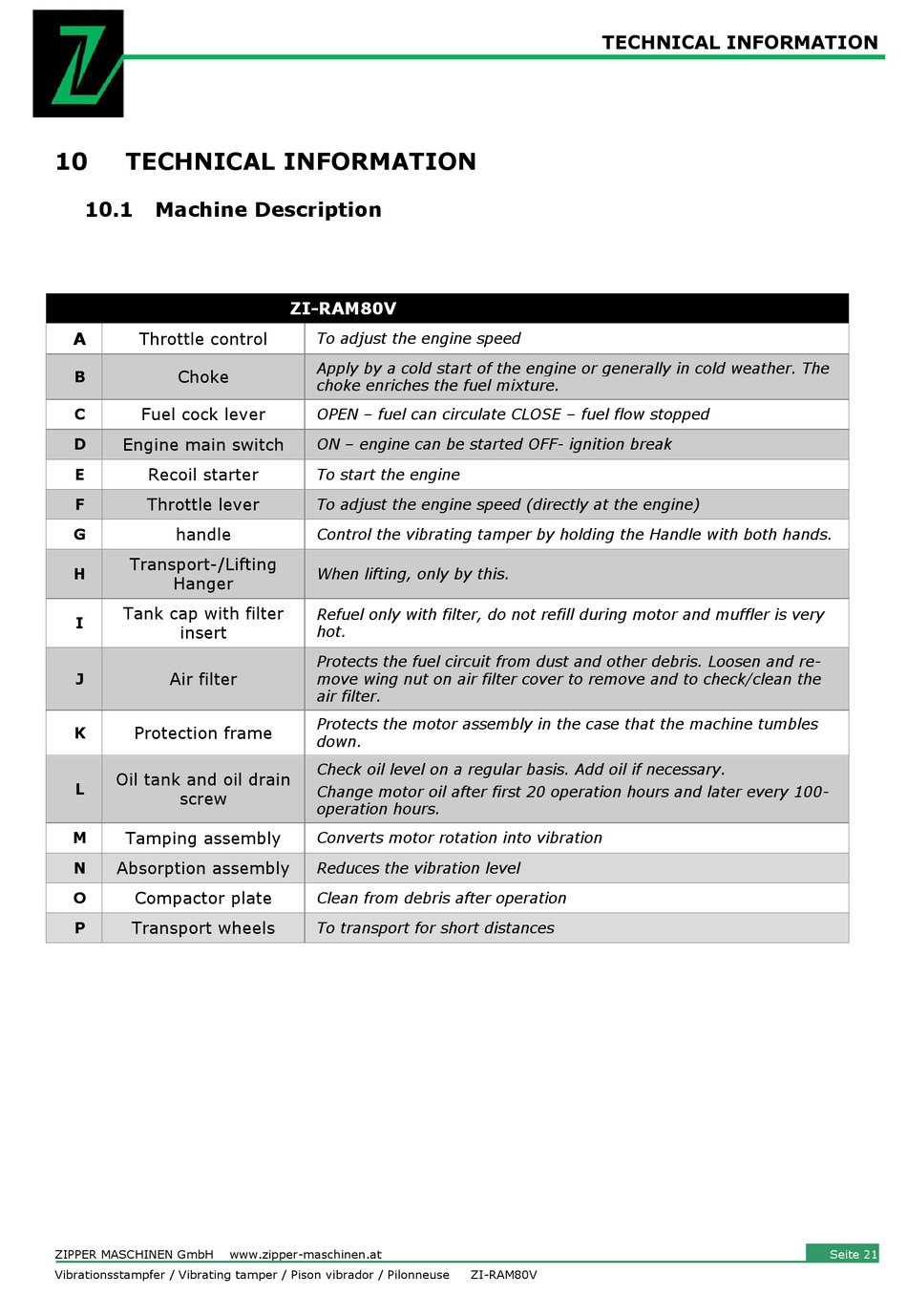

TECHNICAL INFORMATION

10.1

Machine Description

A Throttle control
Choke
B
Fuel cock lever
C
Engine main switch
D
Recoil starter
E
Throttle lever
F
handle
G
Transport-/Lifting
H
Hanger
Tank cap with filter
I
insert
Air filter
J
Protection frame
K
Oil tank and oil drain
L
screw
M Tamping assembly
Absorption assembly
N
Compactor plate
O
Transport wheels
P
ZIPPER MASCHINEN GmbH www.zipper-maschinen.at
Vibrationsstampfer / Vibrating tamper / Pison vibrador / Pilonneuse
ZI-RAM80V
To adjust the engine speed
Apply by a cold start of the engine or generally in cold weather. The
choke enriches the fuel mixture.
OPEN – fuel can circulate CLOSE – fuel flow stopped
ON – engine can be started OFF- ignition break
To start the engine
To adjust the engine speed (directly at the engine)
Control the vibrating tamper by holding the Handle with both hands.
When lifting, only by this.
Refuel only with filter, do not refill during motor and muffler is very
hot.
Protects the fuel circuit from dust and other debris. Loosen and re-
move wing nut on air filter cover to remove and to check/clean the
air filter.
Protects the motor assembly in the case that the machine tumbles
down.
Check oil level on a regular basis. Add oil if necessary.
Change motor oil after first 20 operation hours and later every 100-
operation hours.
Converts motor rotation into vibration
Reduces the vibration level
Clean from debris after operation
To transport for short distances
