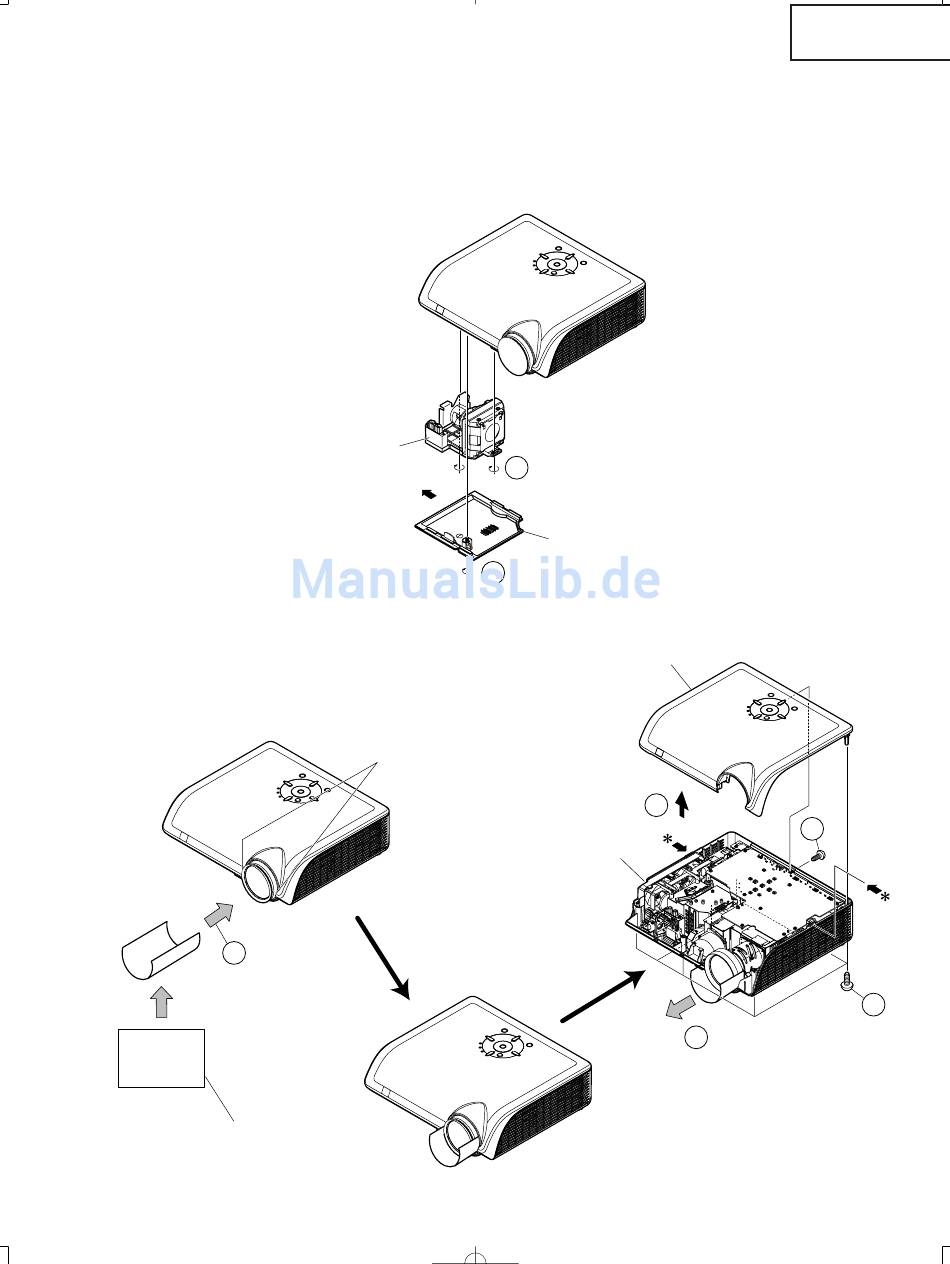

1. Removing the lamp unit cover and the lamp unit
1-1. Loosen the lamp unit cover fixing screw, slide the lamp unit cover in allow direction and lift off the lamp unit
cover.
1-2. Loosen 2 lamp unit fixing screws and lift off the lamp unit.
2. Removing the top body
2-1. Insert thick paper such as a postcard under the lens barrel.
2-2. Remove 7 fixing screws for the top and bottom bodies.
2-3. Press and hold the areas (marked with *) and disengage the claws on the top body to remove the top body.
2-4. Draw out a postcard.
2-1
Short side
(10cm)
Long side
(15cm)
Thick paper such as a postcard.

REMOVING OF MAJOR PARTS

Lamp Unit
1-2
To protect the lens barrel
against scratches.
1-3
Lamp Unit Cover
Top Body
2-3
Bottom Body
17
XV-Z2000
DT-400
2-2
2-2
2-4
