Details
see chpt. 13

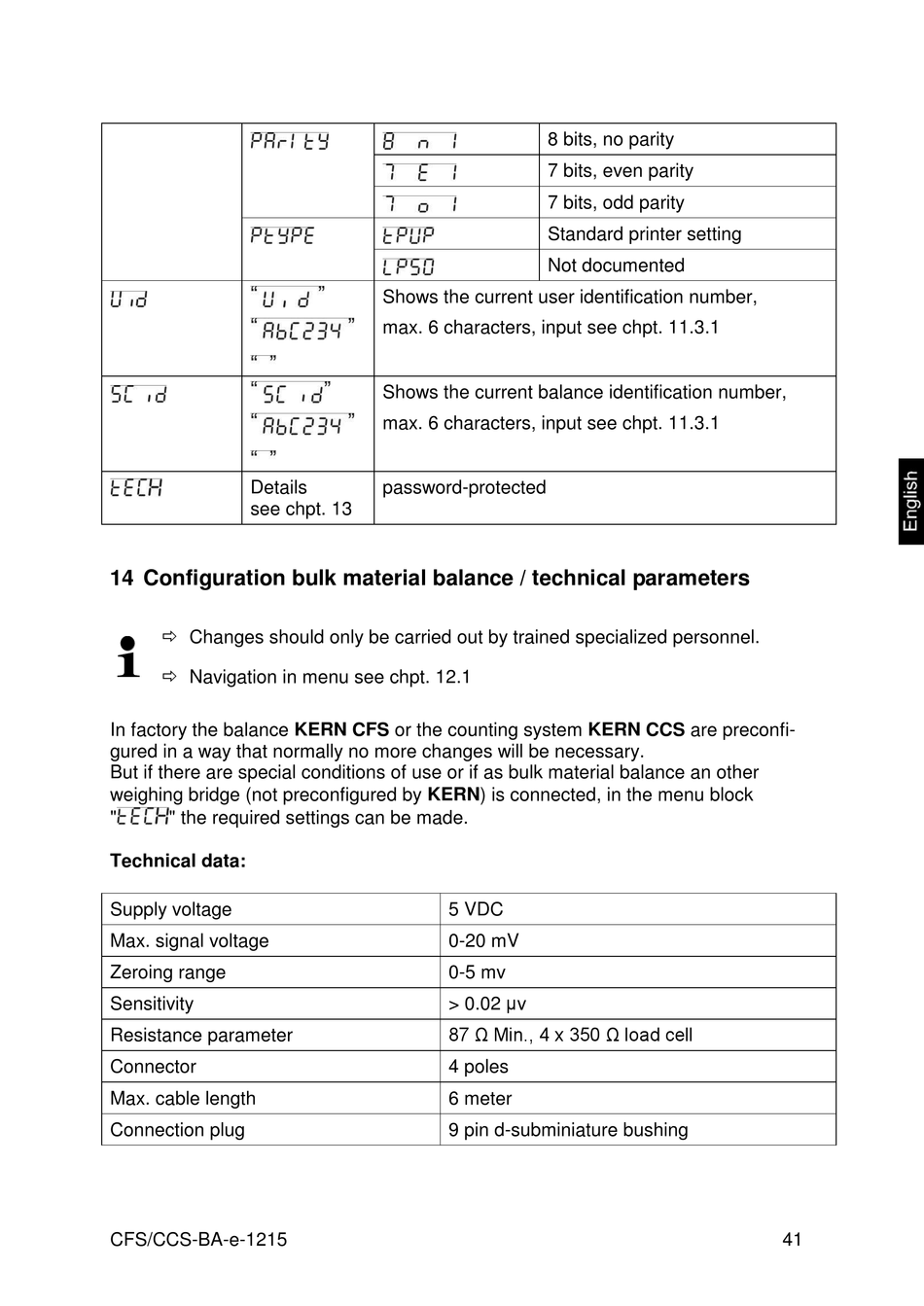

14 Configuration bulk material balance / technical parameters

 Changes should only be carried out by trained specialized personnel.
 Navigation in menu see chpt. 12.1
In factory the balance KERN CFS or the counting system KERN CCS are preconfi-
gured in a way that normally no more changes will be necessary.
But if there are special conditions of use or if as bulk material balance an other
weighing bridge (not preconfigured by KERN) is connected, in the menu block
" " the required settings can be made.
Technical data:
Supply voltage
Max. signal voltage
Zeroing range
Sensitivity
Resistance parameter
Connector
Max. cable length
Connection plug
CFS/CCS-BA-e-1215
8 bits, no parity
7 bits, even parity
7 bits, odd parity
Standard printer setting
Not documented
Shows the current user identification number,
max. 6 characters, input see chpt. 11.3.1
Shows the current balance identification number,
max. 6 characters, input see chpt. 11.3.1
password-protected
5 VDC
0-20 mV
0-5 mv
> 0.02 μv
87 Ω Min., 4 x 350 Ω load cell
4 poles
6 meter
9 pin d-subminiature bushing
41
