for type Eu 3l: 300 x 1150 mm

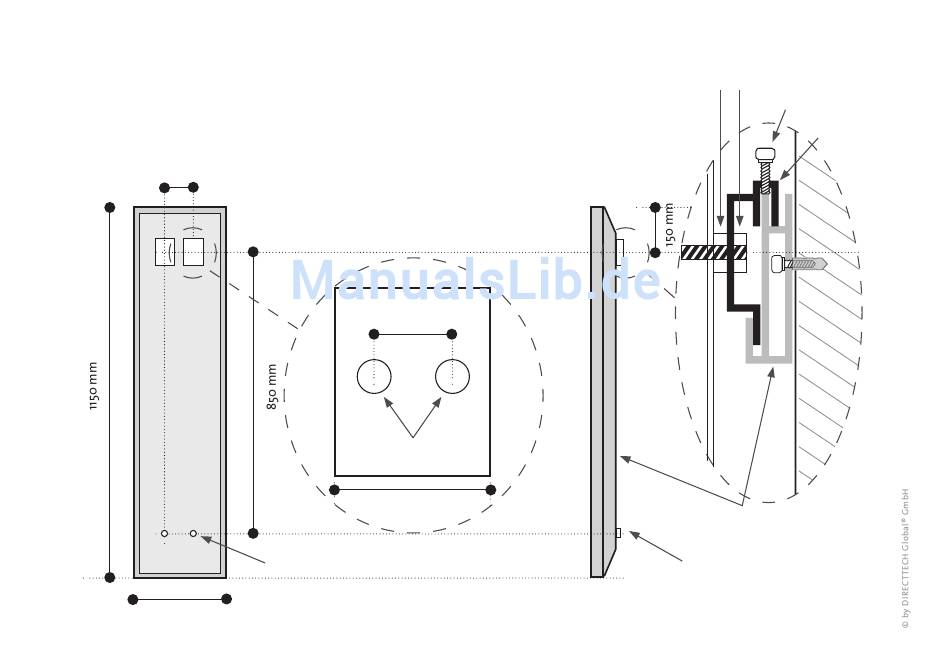

SKETCH
Back side view
140 mm
300 mm
The installation site must provide a suffi cient carrying capacity and strength in accordance
with the weight of the product. Please hereto consult your ceiling installer/architect.
18 mm 18 mm
36 mm
2 holes each 6,5 mm
60 mm
Spacer sleeves
62
Side view
Nut 1 Nut 2
Hight-adjusting
screw
Clasp (agraffe)
Wall
Wall bracket
Spacer sleeves
