InSTAllATIon InSTRuCTIonS
foR DIRECTTECH CRYSTAl & DIRECTTECH mIRRoR
with clip bracket professional
Delivery contents:
• 1 piece DIRECTTECH heating panel
• 2 pieces clip brackets, attached on heating panel
Additional accessories:
(not included in delivery)
• in accordance with local conditions appropriate mounting
material
• 1 piece Allen key 4 mm

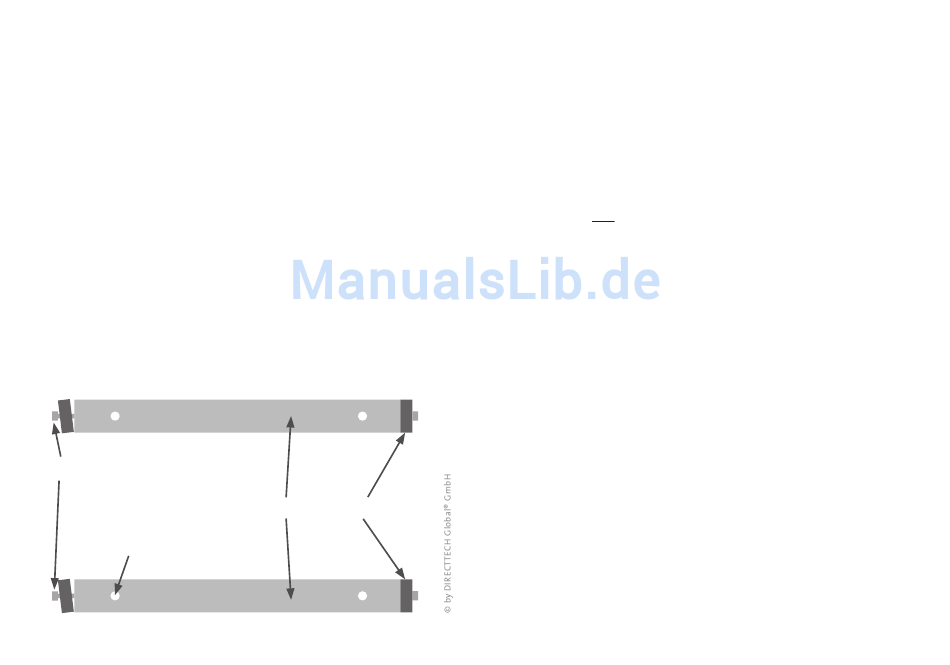

SKETCH
Allen screws
Drilling holes
for mounting
screws
The installation site must provide a suffi cient carrying capacity and strength in accordance
with the weight of the product. Please hereto consult your ceiling installer/architect.
(wITH 2 pERSonS)
Clips
Clip brackets
Installation:
1. Before installation, remove both clip brackets which are at-
tached on the DIRECTTECH heating panel. This is happening
by releasing one clip of each clip bracket (Allen key 4 mm).
The clip is not completely loosed but only far enough that
it is possible to remove the complete clip bracket from the
DIRECTTECH heating panel.
2. The clip brackets are mounted parallelly on the wall or
ceiling (as shown in the drawing). The distance between
the clip brackets should at least be half as long as the
DIRECTTECH heat panel. Both loosened clips are situated at
the same side.
3. For electric installations, the regulations of EN/VDE and of
the local power supply company (EVU) are decisive.
4. The DIRECTTECH heating panel is to be hooked into the rail
of the frame at both fi xed clips and pushed in the direc-
tion of the still unfastened clips. The frame is now pressed
against the clip brackets, so that the unfastened clips
immerse in the rail of the frame. Now, both clips are to be
tightened with the Allen key (torque approx. 2Nm).
Dismantling:
1. Disconnect the electrical connections according to safety
instructions and technical rules.
2. The dismantling takes place in reverse sequence.
48
