DIRECTTECH SKIZZE Handbuch Seite 61

for type Eu 3: 750 x 600 mm
SKETCH
The installation site must provide a suffi cient carrying capacity and strength in accordance
with the weight of the product. Please hereto consult your ceiling installer/architect.

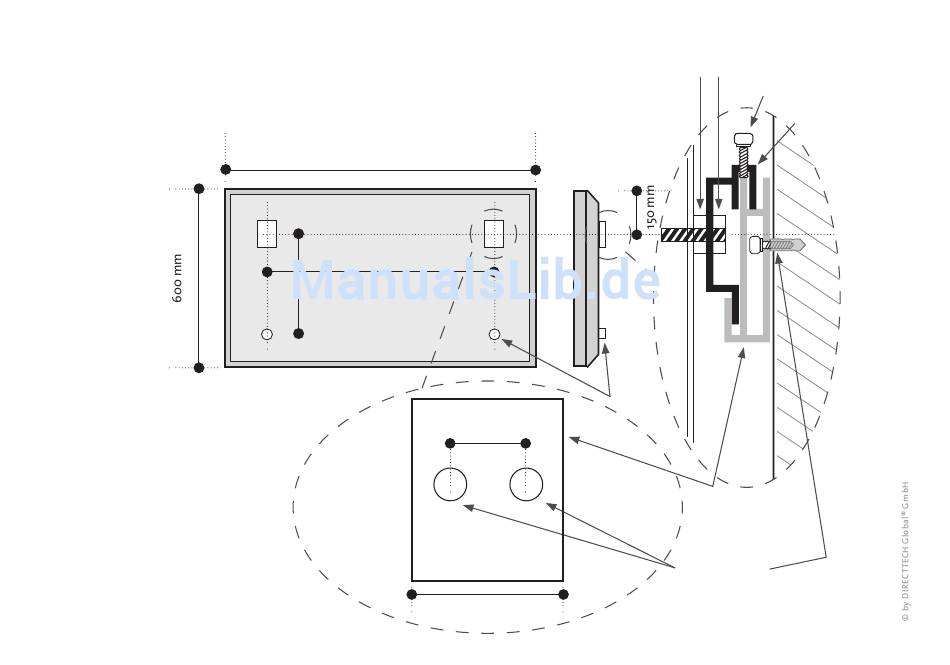

Back side view
750 mm
A: 450 mm
B: 300 mm
18 mm
36 mm
60 mm
61
Side view
Nut 1
Spacer
sleeves
18 mm
2 holes each 6,5 mm
Nut 2
Hight-adjusting screw
Clasp (agraffe)
Wall
Wall bracket
