view D500
597 mm
The installation site must provide a suffi cient carrying capacity and strength in accordance
with the weight of the product. Please hereto consult your ceiling installer/architect.

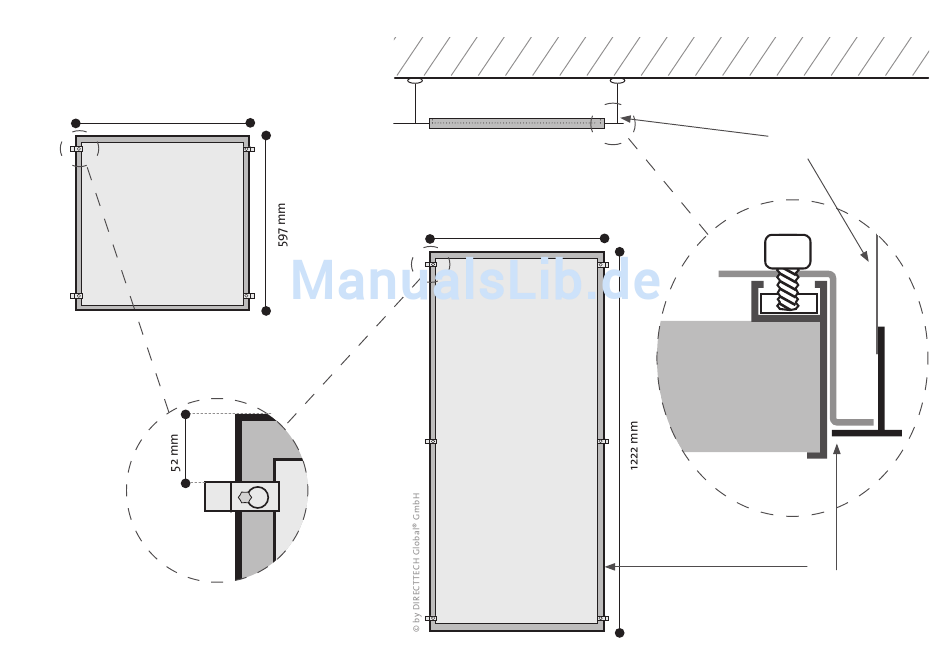

SKETCH
Short side view D1000
597 mm
57
Existing raw ceiling
Tensioning wire and T-rail
of the suspended ceiling
Z-rail mounted on
the panel
