6.4

Free room

When installing the unit leave enough free room to allow opening, correct use and easy maintenance in safe
conditions.
6.5

Installation

Place the condensing unit LBBWH on the floor.
LBWWH:

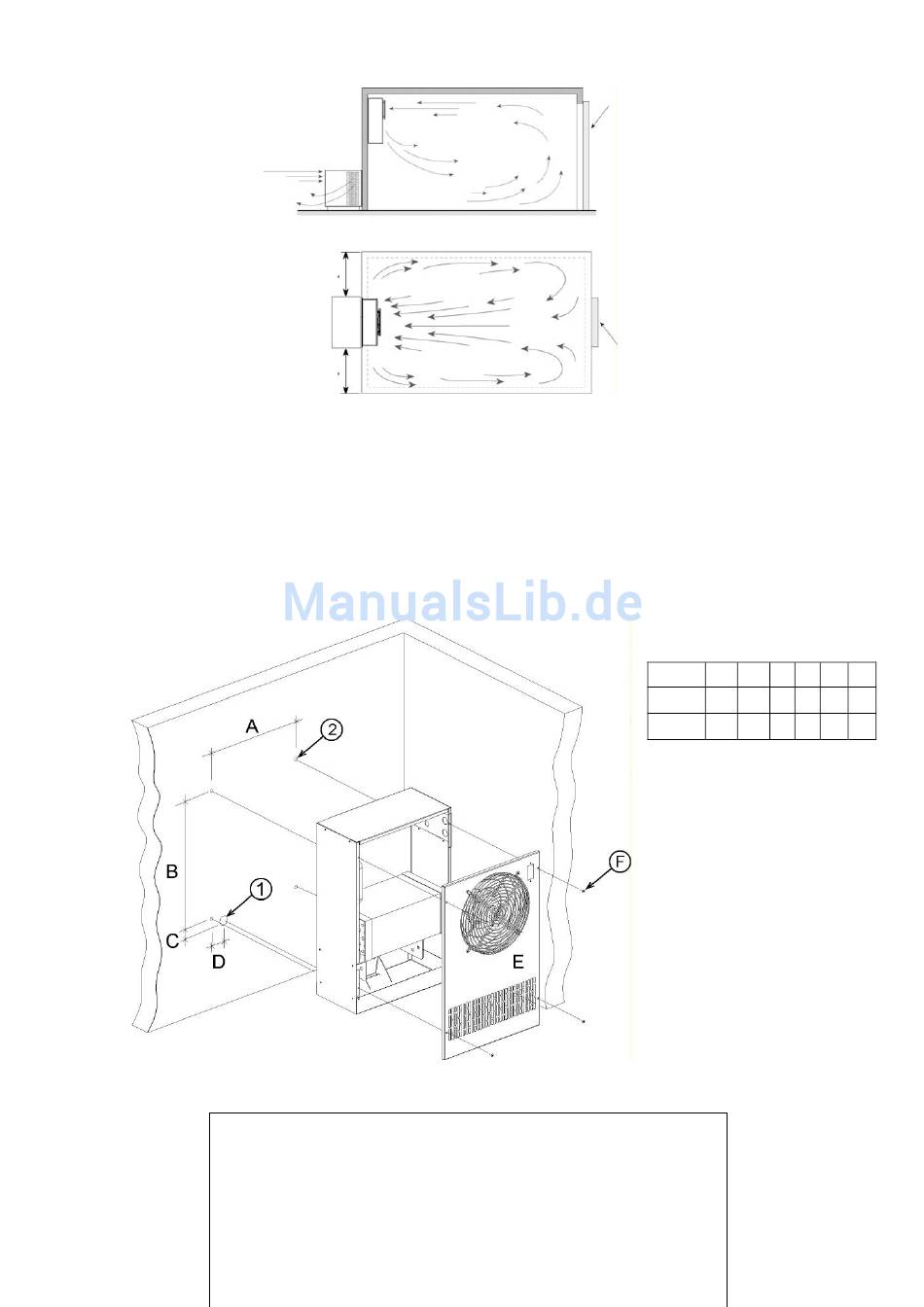

Install the evaporator as follows:
A) open fan cover E by unscrewing the 4 screws F; drill the holes on the wall of the coldroom keeping the
necessary distance from the wall
Secure the evaporator with the material supplied.
A B C D Ø1 Ø2
030-050 330 420 21 47 30
060-075 550 420 21 47 30
