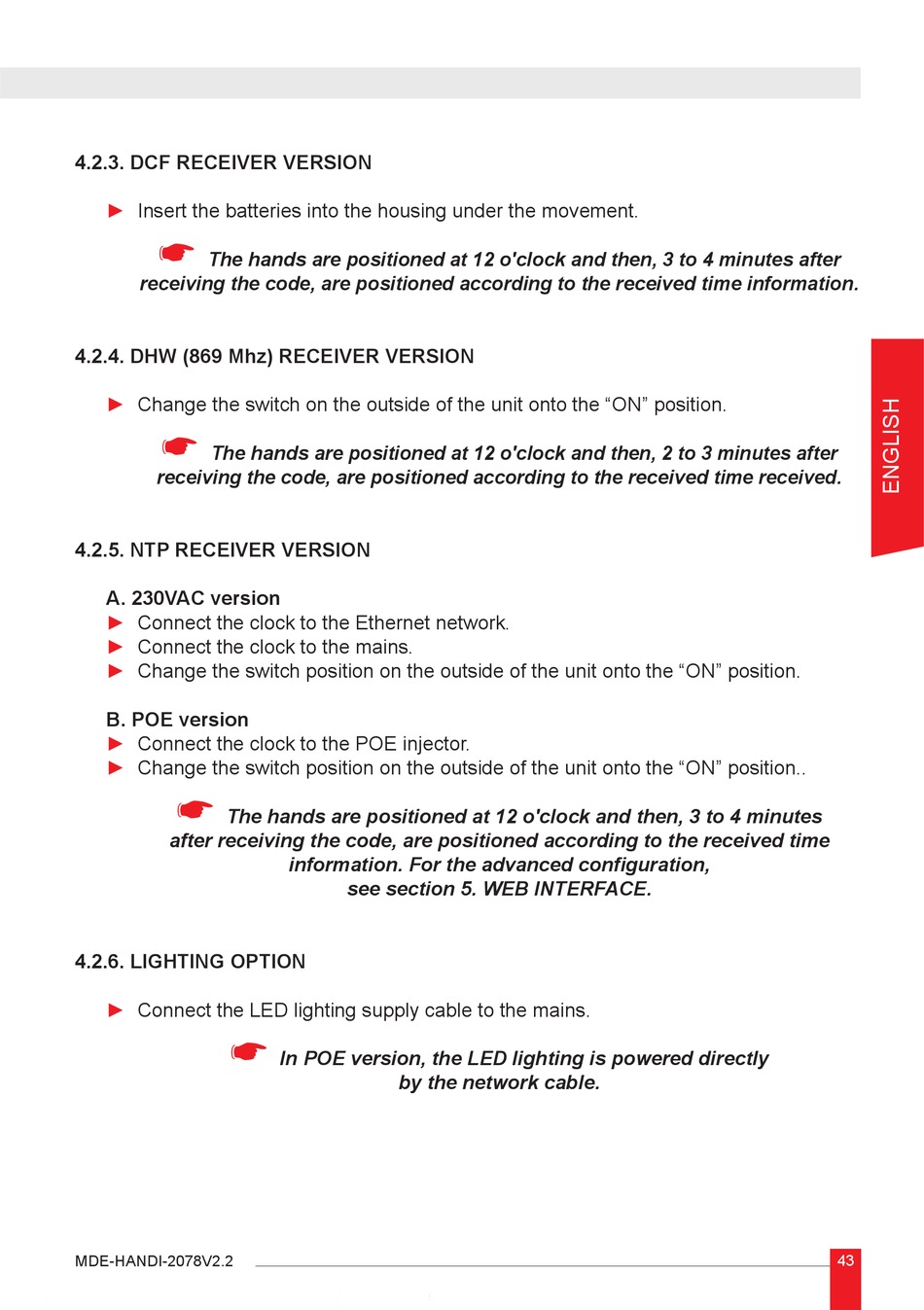

4.2.3. DCF RECEIVER VERSION
►
Insert the batteries into the housing under the movement.
☛
The hands are positioned at 12 o'clock and then, 3 to 4 minutes after
receiving the code, are positioned according to the received time information.
4.2.4. DHW (869 Mhz) RECEIVER VERSION
►
Change the switch on the outside of the unit onto the "ON" position.
☛
The hands are positioned at 12 o'clock and then, 2 to 3 minutes after
receiving the code, are positioned according to the received time received.
4.2.5. NTP RECEIVER VERSION
A. 230VAC version
►
Connect the clock to the Ethernet network.
►
Connect the clock to the mains.
►
Change the switch position on the outside of the unit onto the "ON" position.
B. POE version
►
Connect the clock to the POE injector.
►
Change the switch position on the outside of the unit onto the "ON" position..
☛
The hands are positioned at 12 o'clock and then, 3 to 4 minutes
after receiving the code, are positioned according to the received time
4.2.6. LIGHTING OPTION
►
Connect the LED lighting supply cable to the mains.
☛
MDE-HANDI-2078V2.2
information. For the advanced configuration,
see section 5. WEB INTERFACE.
In POE version, the LED lighting is powered directly
by the network cable.
