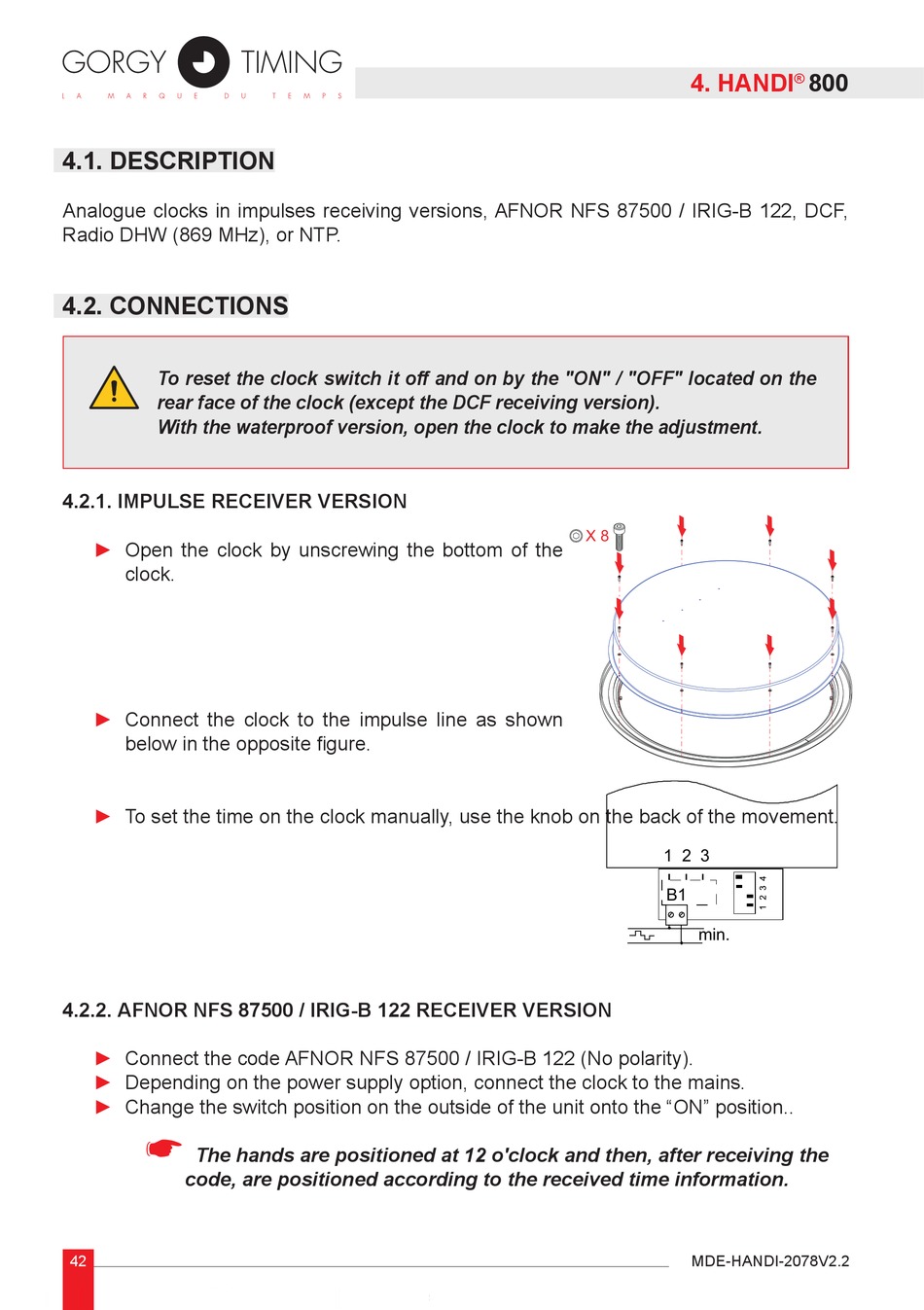

4.1. DESCRIPTION

Analogue clocks in impulses receiving versions, AFNOR NFS 87500 / IRIG-B 122, DCF,
Radio DHW (869 MHz), or NTP.

4.2. CONNECTIONS

To reset the clock switch it off and on by the "ON" / "OFF" located on the
rear face of the clock (except the DCF receiving version).
With the waterproof version, open the clock to make the adjustment.

4.2.1. IMPULSE RECEIVER VERSION

► Open the clock by unscrewing the bottom of the
X 6
clock.
► Connect the clock to the impulse line as shown
below in the opposite figure.
► To set the time on the clock manually, use the knob on the back of the movement.

4.2.2. AFNOR NFS 87500 / IRIG-B 122 RECEIVER VERSION

► Connect the code AFNOR NFS 87500 / IRIG-B 122 (No polarity).
► Depending on the power supply option, connect the clock to the mains.
► Change the switch position on the outside of the unit onto the "ON" position..
☛
The hands are positioned at 12 o'clock and then, after receiving the
code, are positioned according to the received time information.
42
X 6
4. HANDI
X 8
1 2 3
B1
min.
MDE-HANDI-2078V2.2
800
®
