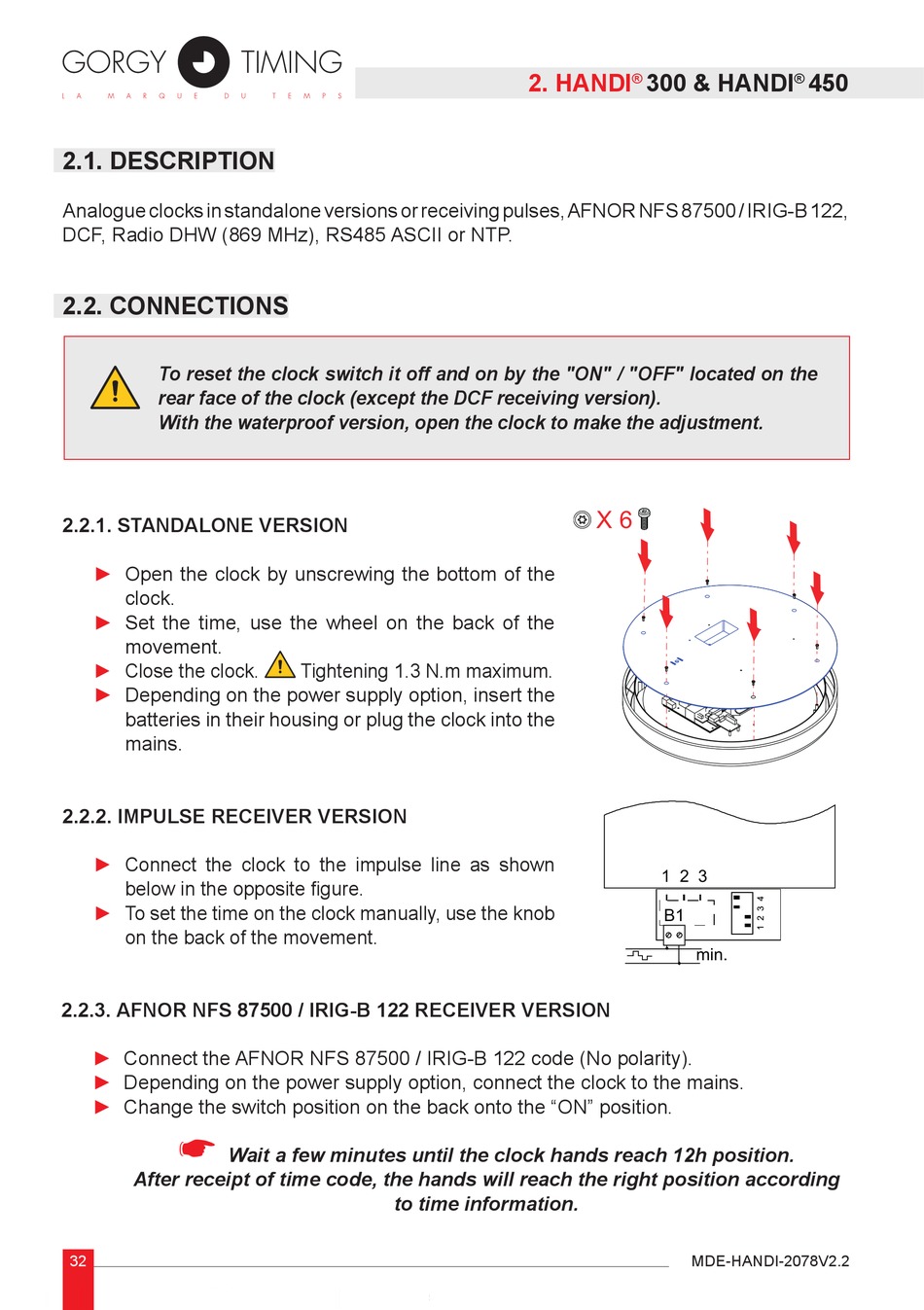

2.1. DESCRIPTION

Analogue clocks in standalone versions or receiving pulses, AFNOR NFS 87500 / IRIG-B 122,
DCF, Radio DHW (869 MHz), RS485 ASCII or NTP.

2.2. CONNECTIONS

To reset the clock switch it off and on by the "ON" / "OFF" located on the
rear face of the clock (except the DCF receiving version).
With the waterproof version, open the clock to make the adjustment.

2.2.1. STANDALONE VERSION

► Open the clock by unscrewing the bottom of the
clock.
► Set the time, use the wheel on the back of the
movement.
► Close the clock.
► Depending on the power supply option, insert the
batteries in their housing or plug the clock into the
mains.

2.2.2. IMPULSE RECEIVER VERSION

► Connect the clock to the impulse line as shown
below in the opposite figure.
► To set the time on the clock manually, use the knob
on the back of the movement.

2.2.3. AFNOR NFS 87500 / IRIG-B 122 RECEIVER VERSION

► Connect the AFNOR NFS 87500 / IRIG-B 122 code (No polarity).
► Depending on the power supply option, connect the clock to the mains.
► Change the switch position on the back onto the "ON" position.
☛
Wait a few minutes until the clock hands reach 12h position.
After receipt of time code, the hands will reach the right position according
32
Tightening 1.3 N.m maximum.
to time information.
