QR15 INSTALLATION INSTRUCTIONS

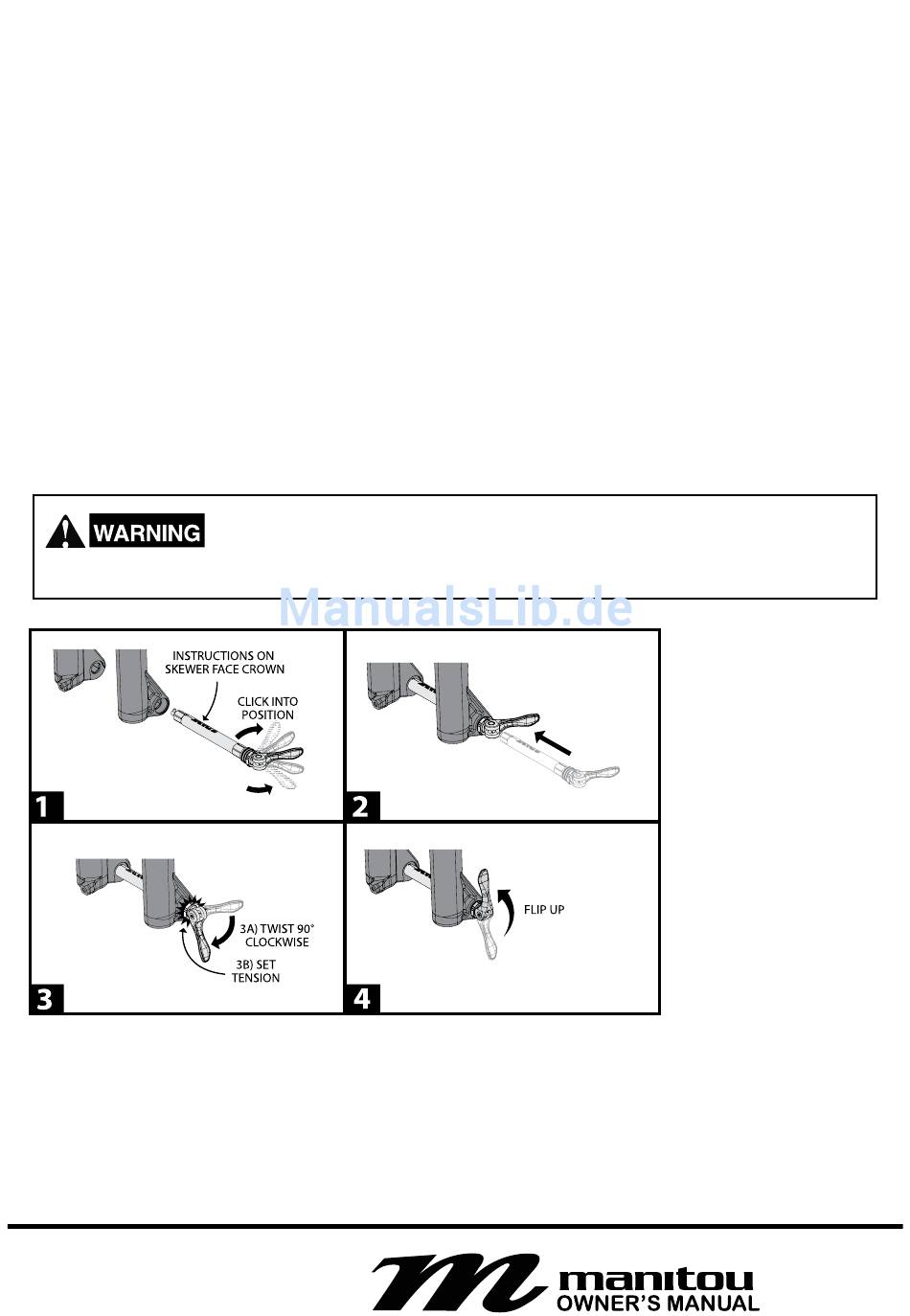

1. Flip the lever to the open position. You'll see an open arrow on the side of
the lever. Align cross pin with the arrow on the axle. You will feel it click into
place when it is in the proper position.
2. Place wheel into fork. Insert axle into the drive side dropout of the fork.
When inserting the axle, you want to make sure that the writing or arrow on
the axle is facing up and that the cross pin is vertical. The lever of the axle
will be pointing out towards the front of the fork. Insert axle thru the casting
and hub until it stops (the O-ring by the tension dial should be inside the
casting counter bore).
3. Rotate lever 90 degrees clockwise until you feel it click into place.
4. Flip lever up to the closed position locking the axle. If it feels like it requires
too much force to close the lever, adjust the tension with the adjuster dial.
Adjust by turning the adjuster dial clockwise to decrease tension. Counter-
clockwise rotation will increase tension if the axle feels too loose when
closing the lever.
IMPROPERLY TENSIONED AXLE, LEVER NOT COMPLETELY ENGAGED
OR THE LEVER BEING IN ANY OTHER POSITION THAN THE UPWARDS
CLOSED POSITION COULD RESULT IN DISENGAGEMENT OF THE AXLE
POSSIBLY CAUSING SERIOUS INJURIES OR DEATH.
