TIRE CLEARANCE
Before riding your bike for the first time and after any tire change you must check for
proper tire clearance. You must measure the tire width and the arch clearance of the

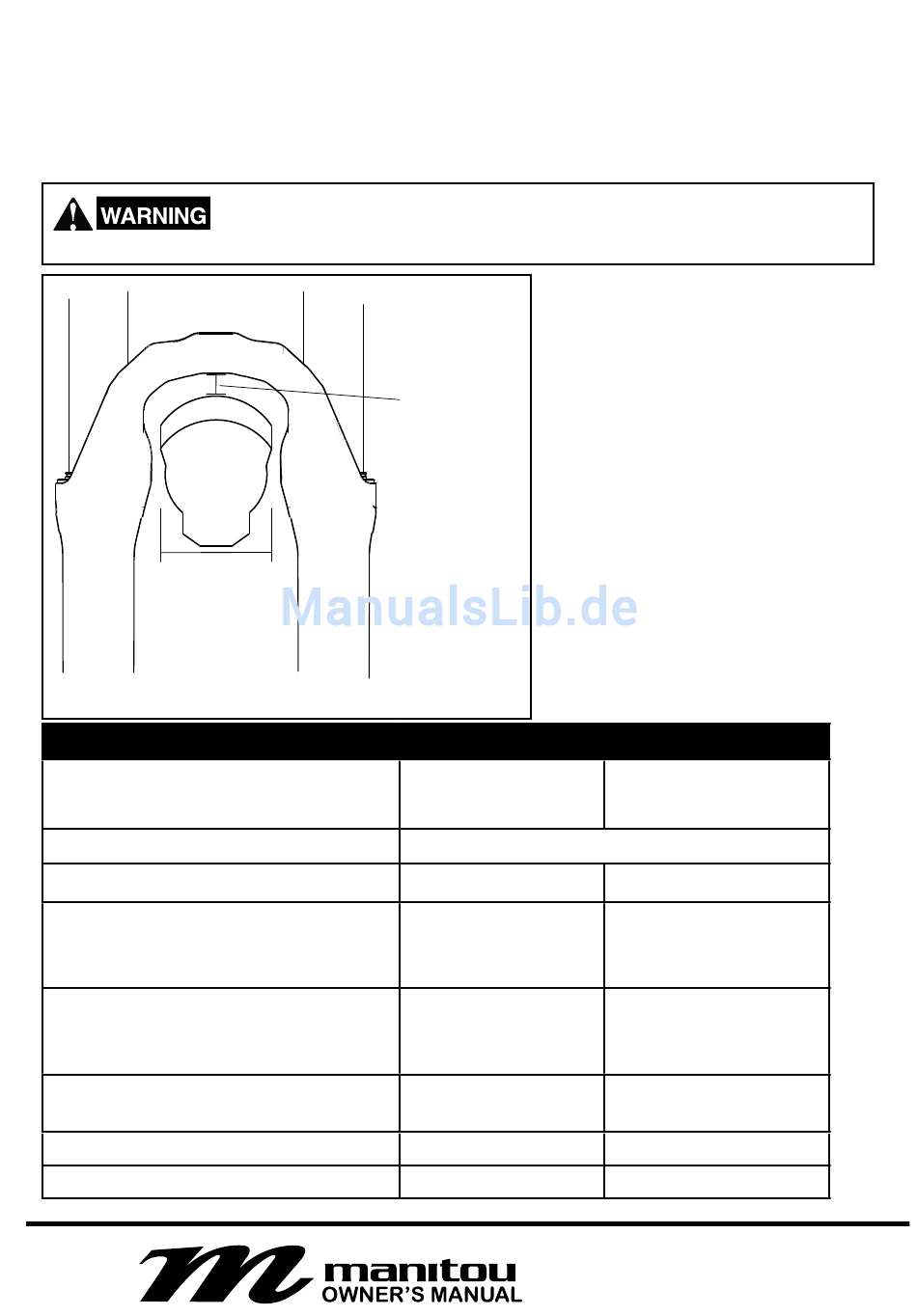

tire. Below is a diagram to assist you in checking for proper tire clearance.
Maximum
Tire
Width
TABLE 1 - TIRE CLEARANCE
FORK MODEL
R7 PRO, R7 MRD, M30
CIRCUS SPORT, EXPERT, COMP
MINUTE/MARVEL 26" FORKS
MATCH 26" FORKS
MINUTE 29" FORKS
MARVEL 29" FORKS
MATCH 29" FORKS
MINUTE 27.5" FORKS
MARVEL 27.5" FORKS
MATTOC
MAGNUM
6
FAILURE TO FOLLOW THE TIRE CLEARANCE GUIDELINES COULD
RESULT IN THE TIRE STRIKING THE CROWN WHICH COULD CAUSE
SERIOUS INJURY OR DEATH.
FIG. A
Please refer to the chart below
for dimensions specific to your
fork model.
Minimum
Arch
Clearance
MINIMUM ARCH
CLEARANCE
(SEE FIGURE A)
10mm
9.5mm
12.0mm
12.0mm
12.0mm
12.0mm
MAXIMUM
TIRE WIDTH
60mm
63mm
63mm
65mm
68mm
87mm
