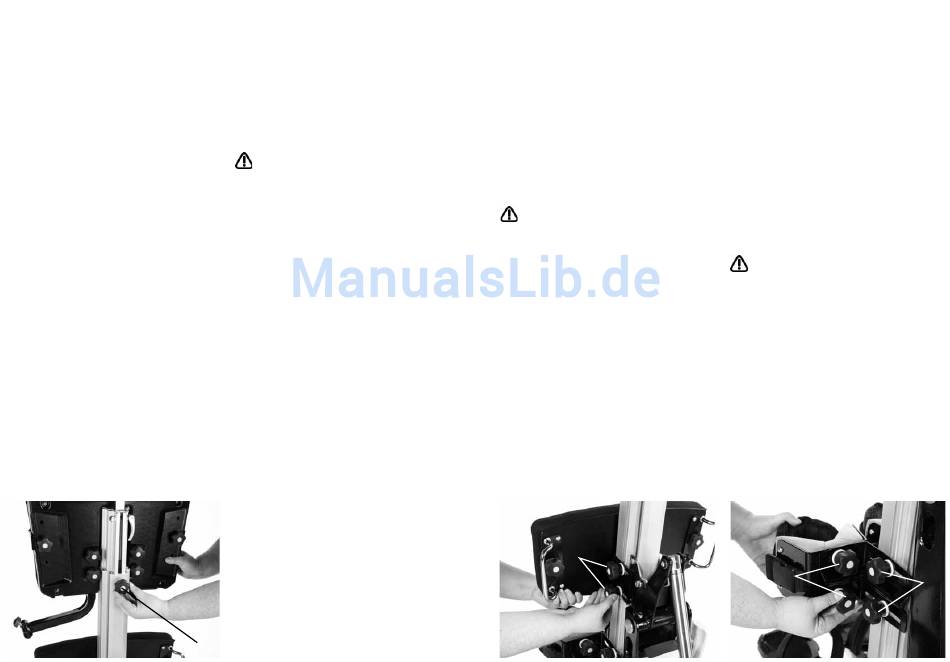

8.1 Adjusting the
Chest Pad
For prone standing you should firstly
measure the distance from the users feet
to just under their arms and for supine you
should measure to the top of the shoulder.
This is best done were practical in a lying
position on a mat. The height between the
top of the chest pad or top and the
sandals should be set to the equivalent
of this distance.
To position the pad loosen the knob at
the back of the spine (a) and slide the pad to
the required position and retighten securely.
Always support the pad before loosening
the knob to prevent the pad slipping
unexpectedly.
The height of the chest pad should not be
adjusted when the stander is in an upright
position and in use. Maximum adjustment
of the chest pad is 40 cm/16 inches as
displayed on the calibration strip at the
side of the spine.
Never adjust the height of the chest
pad when the user is in the product
as the user's weight may collapse the
height of the frame causing injury to
the user or carer.
A
8.2 Adjusting the Hip Pad
The hip pad can be height, depth and
angle adjusted for optimum pelvic position.
The height of the pad is set to the equivalent
distance between the user's pelvis and their
feet. To adjust the hip pad loosen the four
knobs (a) on either side of the central spine
at the back of the pad and slide the pad
into the required position. Once the required
position is obtained the knobs should be
re-tightened securely.
Always check the pads are secure before
placing the user in the product.
A
8.3 Adjusting the Knee
Supports
The height and depth of the knee supports
can be positioned independently by
adjusting the mounting plate. To adjust
the plate loosen the two knobs (a) and slide
the plate and knee support to the required
position and then retighten the knobs
securely. Repeat the process for the
other plate.
To alter the width of the knee supports
and also if required achieve some rotation
loosen the knobs (b) and slide the pad to
the required position and then retighten the
knobs.
Always use caution when making this
adjustment, as fingers could become
trapped in the slot while positioning.
B
A
