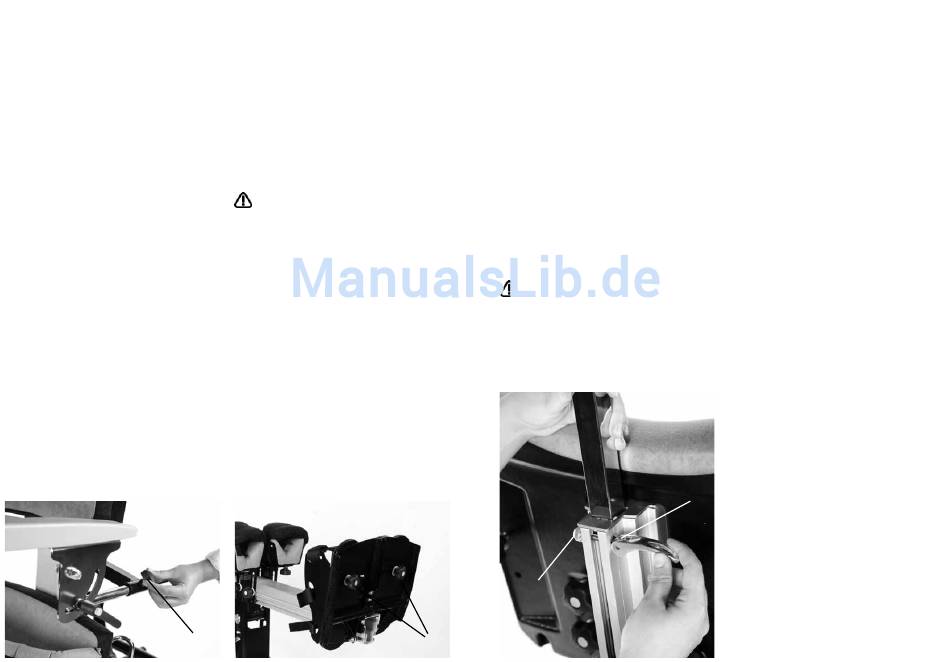

7.2 How to attach the
tray in supine standing
The Tray is attached to and removed from
the frame by the metal brackets located
below the chest pad. To attach the tray slide
the metal bars into the receiving tubes to the
required depth and secure by tightening the
knobs (a) on either side.
7.3 How to attach
the sandals
Each sandal is attached to the footplate
individually with a single fixing bolt. Remove
the sandals from their packaging and
unscrew the plastic knob and washers.
Place the sandal on the footplate locating
the fixing bolt through the slot, place the
rubber washer on first and then the
metal washer. Secure in place with
the plastic knob (a).
Always use caution when making this
adjustment, as fingers could become
trapped in the slot while positioning.
A
7.4 How to attach the
headsupport & extended
headrest bracket in Supine
To attach and height adjust, slide the square
tubing into the top of the central spine on
the backrest. To lock the head support push
the locking lever down until it touches the
metal spine (b). To remove simply reverse
this process. The extended headrest, the
contoured head support and the Whitmyer
Pro-Series range of headsupports can also
be attached to the frame as detailed above.
After use locking lever may need to be fine
tuned to ensure secure locking. To do this
lift up the lever and turn the nut (c) while
holding the lever in a fixed position. Push the
lever back down to check if it locks the tube
securely. Repeat the process as necessary.
Always use caution when making
this adjustment, as fingers could
become trapped in the receiving tube
while positioning.
C
A
7.5 How to attach the
headsupport in prone
If headsupport is needed in prone standing
the Leckey Interface Frame (LIF) can be
used with Horizon Stander. The LIF is
attached to and removed from the frame by
the metal brackets located below the chest
pad. To attach, slide the metal bars into the
receiving tubes to the required depth
and secure by tightening the knobs on
either side.
Please refer to the specific user manual on
the Leckey Interface Frame to safely position
the frame and its accessories.
This frame will also accommodate the
Whitmyer pro-series range of headsupports.
B
