ENGLISH

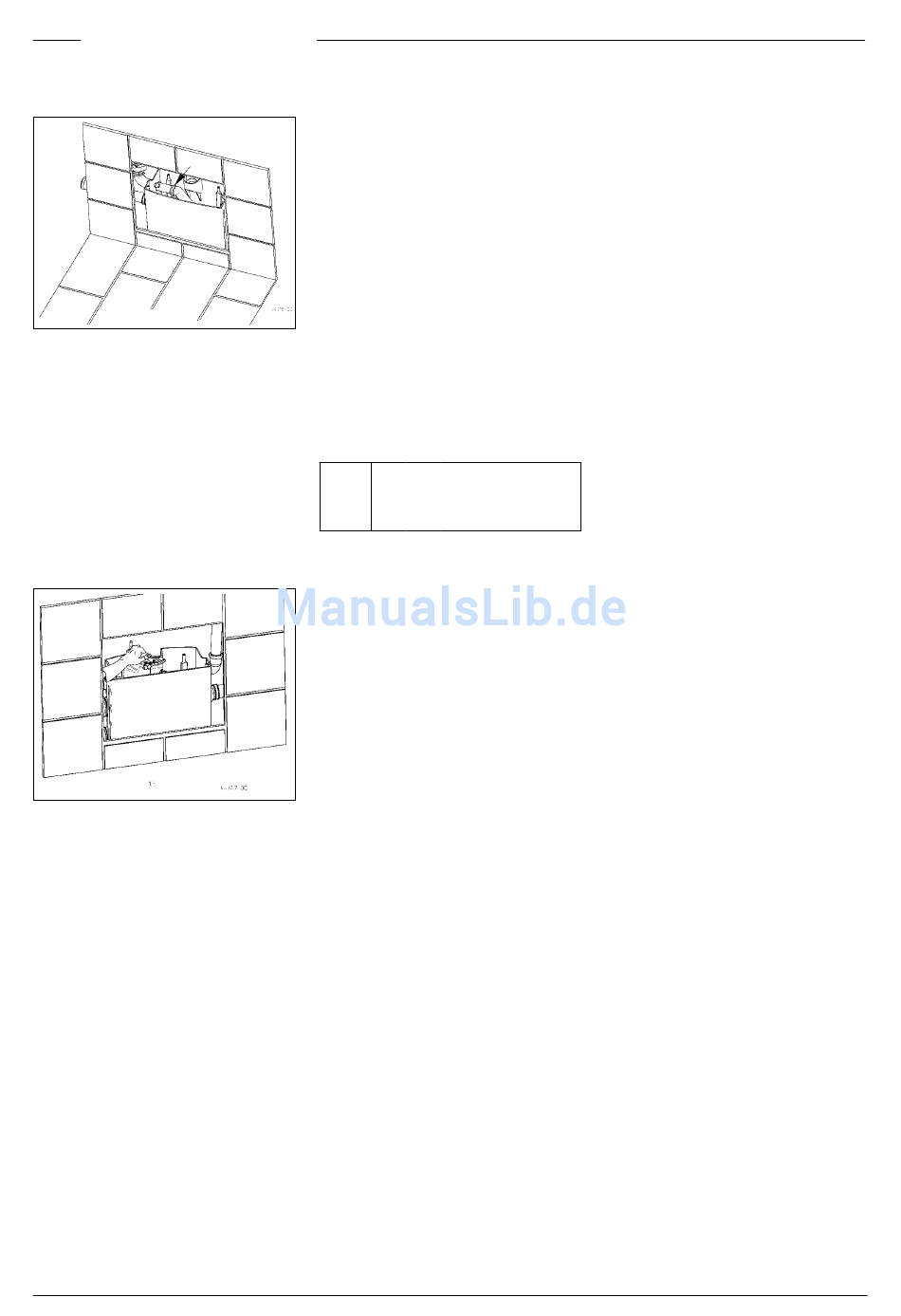

Step 2
Loosen the wing bolt on the hose clamp
on the discharge branch. The flexible
discharge elbow can now be detached
from the pressure pipe. Grip the pump
by the handle and carefully take it out
of the tank. Ensure that the float switch
does not detach itself from the retaining
brackets on the inside wall of the tank.
Remove any foreign matter from the
tank and the pump and clean the com-
ponents.
Step 3
Assemble the system again carefully in
reverse order. To do so, insert two feet of
the pump into the holding fixtures in the
tank floor and carefully place the float
lever in the float switch bracket. Test
whether this is firmly secured in place
by turning the pump handle gently from
side to side. Place the flexible discharge
elbow onto the discharge branch as far
as it will go and tighten the wing bolts
of the hose clamp by hand. Check that
these components work by moving the
float switch up and down by hand. Press
the lid down onto the tank and hand
tighten the screws in the brackets in a
crosswise order. To prevent a collision
between the cable and the movable
parts in the tank, draw the cable out of
the tank as far as possible and securely
tighten the cable gland.
12

TECHNICAL DATA

Weight 6.2 kg
Pressure branch DN 32
Motor power P1 0.32 kW
Motor power P2 0.20 kW
Voltage 1/N/PEx230 V
Frequency 50 Hz
Rated current 1.4 A
Type of enclosure Plug unit IP 20
Control voltage for alarm circuit 12 V DC
(SELV)
Performance
H
1 2 3 4
[m]
Q
6,5 5,5 5,0 4,0 3,0 1,5
[m³/h]
5 6
