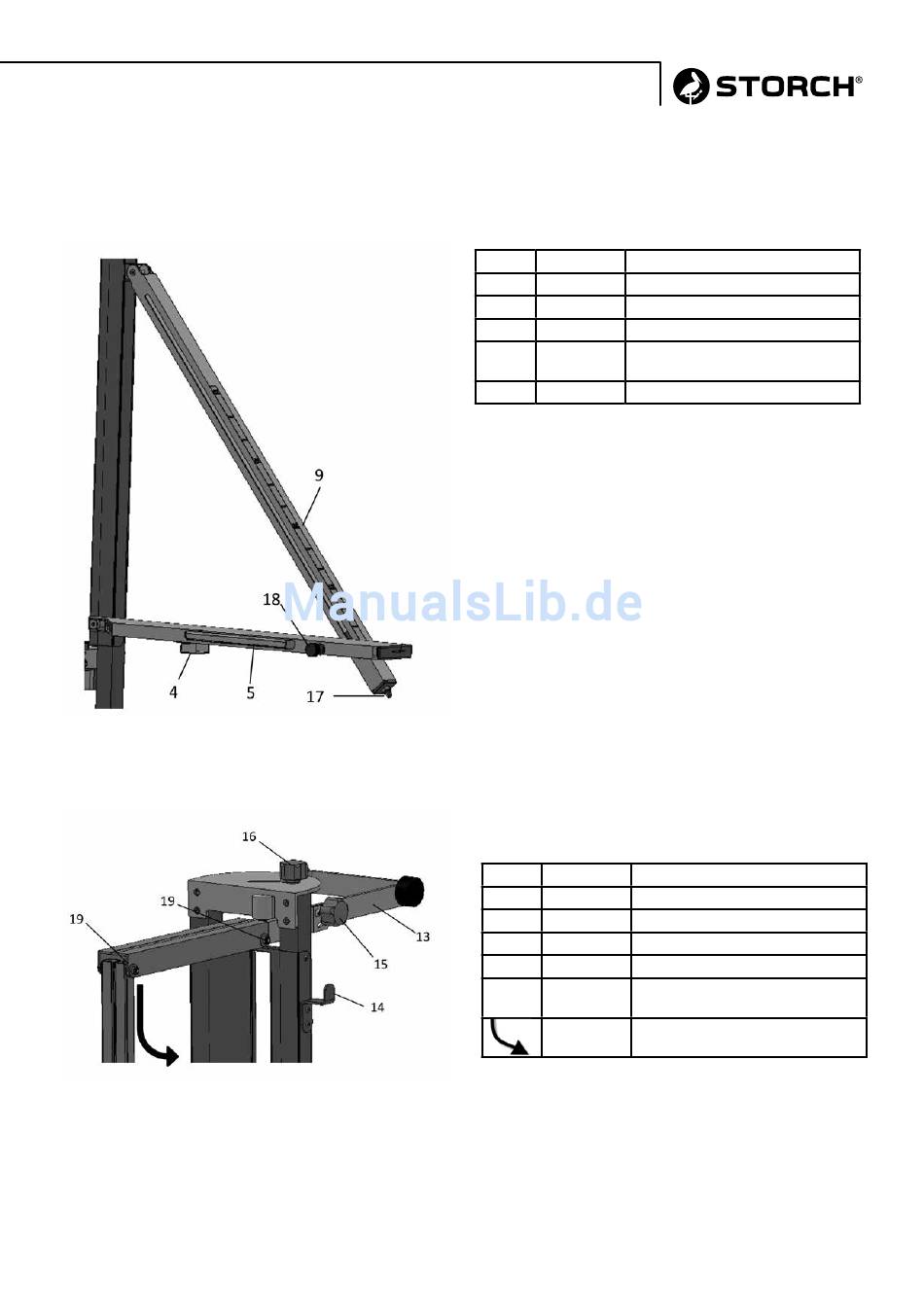

Detailed view for:
Horizontal adjustment of bearing rail, board support, angle scale (right), holding fixture for
sliding bevel
Fig. b
Detailed view of foldable cutting guide, rear support, mounting bracket for saw
Fig. c
Pos. Art. no.
4 57 01 71
5 57 01 72
9 57 01 77
17 57 01 87
18 57 01 88
Pos. Art. no.
13 57 01 82
14 57 01 83
15 57 01 84
16 57 01 86
19 57 01 89
45
Designation
Holding fixture for sliding bevel
Board support, foldable
Angle scale, right
Horizontal adjustment for bea-
ring rail
Screw for bearing rail, left + right
Designation
Rear support, adjustable
Mounting bracket for saw
Screw for rear support
Screw for mitre angle
Screw for upper hinge, hinged
bow rear
Folding movement of the bow for
securing the board
Translation of the original instruction
