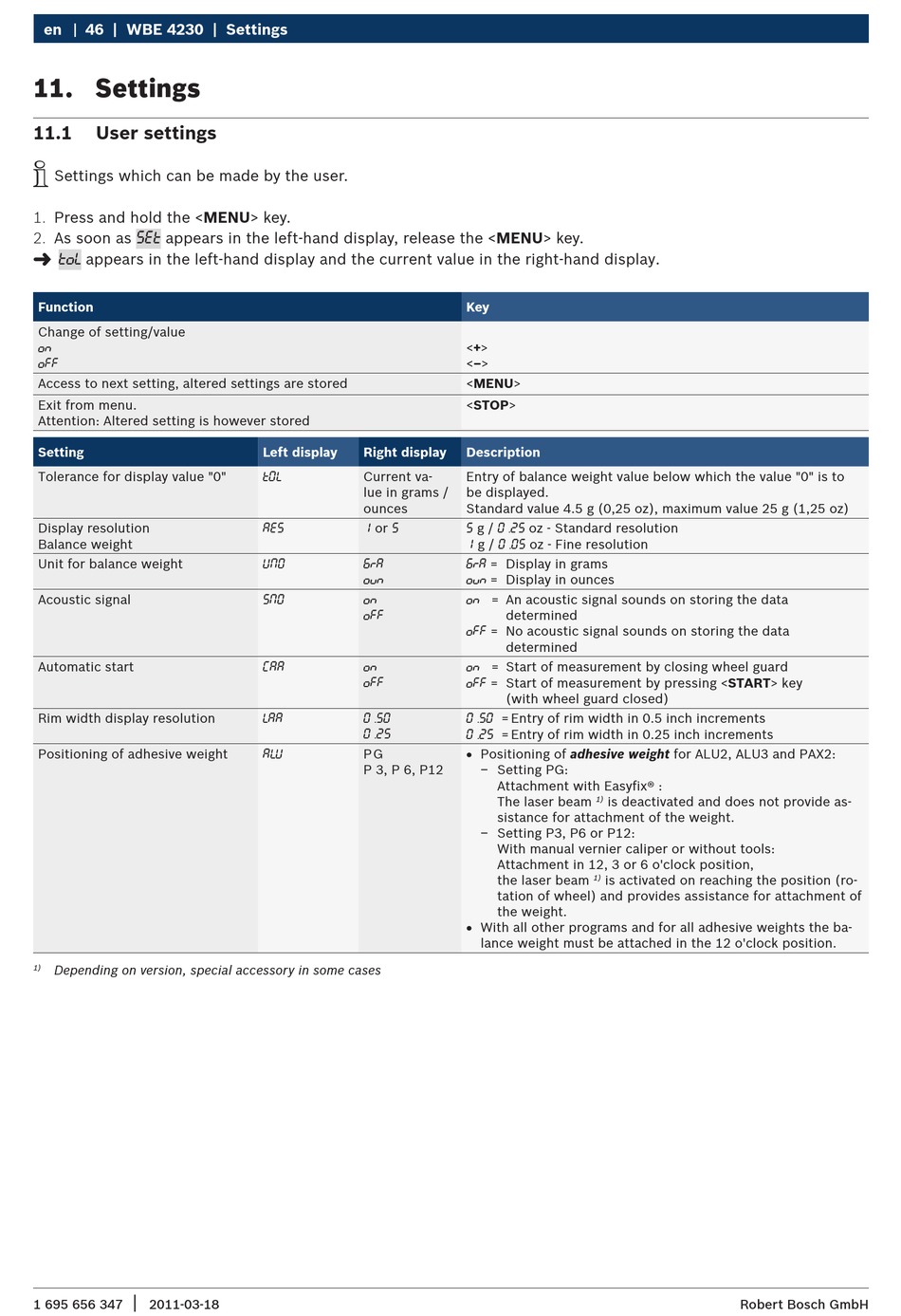

en 46 | WBE 4230 | Settings

11. Settings

11.1

User settings

i
Settings which can be made by the user.
1. Press and hold the <MENU> key.
2. As soon as appears in the left-hand display, release the <MENU> key.
5Et
"
appears in the left-hand display and the current value in the right-hand display.
toL
Function
Change of setting/value
on
oFF
Access to next setting, altered settings are stored
Exit from menu.
Attention: Altered setting is however stored
Setting
Tolerance for display value "0"
Display resolution
Balance weight
Unit for balance weight
Acoustic signal
Automatic start
Rim width display resolution
Positioning of adhesive weight
Depending on version, special accessory in some cases
1)
|
1 695 656 347 2011-03-18
Left display Right display
Current va-
t0L
lue in grams /
ounces
1 or 5
AE5
UM0 6rA
oun
5M0 on
oFF
CAA on
oFF
LAA 0.50
0.25
P G
ALU
P 3, P 6, P12
Key
<+>
<–>
<MENU>
<STOP>
Description
Entry of balance weight value below which the value "0" is to
be displayed.
Standard value 4.5 g (0,25 oz), maximum value 25 g (1,25 oz)
5 g / 0.25 oz - Standard resolution
1 g / 0.05 oz - Fine resolution
6rA = Display in grams
oun = Display in ounces
on = An acoustic signal sounds on storing the data
determined
oFF = No acoustic signal sounds on storing the data
determined
on = Start of measurement by closing wheel guard
oFF = Start of measurement by pressing <START> key
(with wheel guard closed)
0.50 = Entry of rim width in 0.5 inch increments
0.25 = Entry of rim width in 0.25 inch increments
R Positioning of adhesive weight for ALU2, ALU3 and PAX2:
$ Setting PG:
Attachment with Easyfix® :
The laser beam is deactivated and does not provide as-
1)
sistance for attachment of the weight.
$ Setting P3, P6 or P12:
With manual vernier caliper or without tools:
Attachment in 12, 3 or 6 o'clock position,
the laser beam is activated on reaching the position (ro-
1)
tation of wheel) and provides assistance for attachment of
the weight.
R With all other programs and for all adhesive weights the ba-
lance weight must be attached in the 12 o'clock position.
