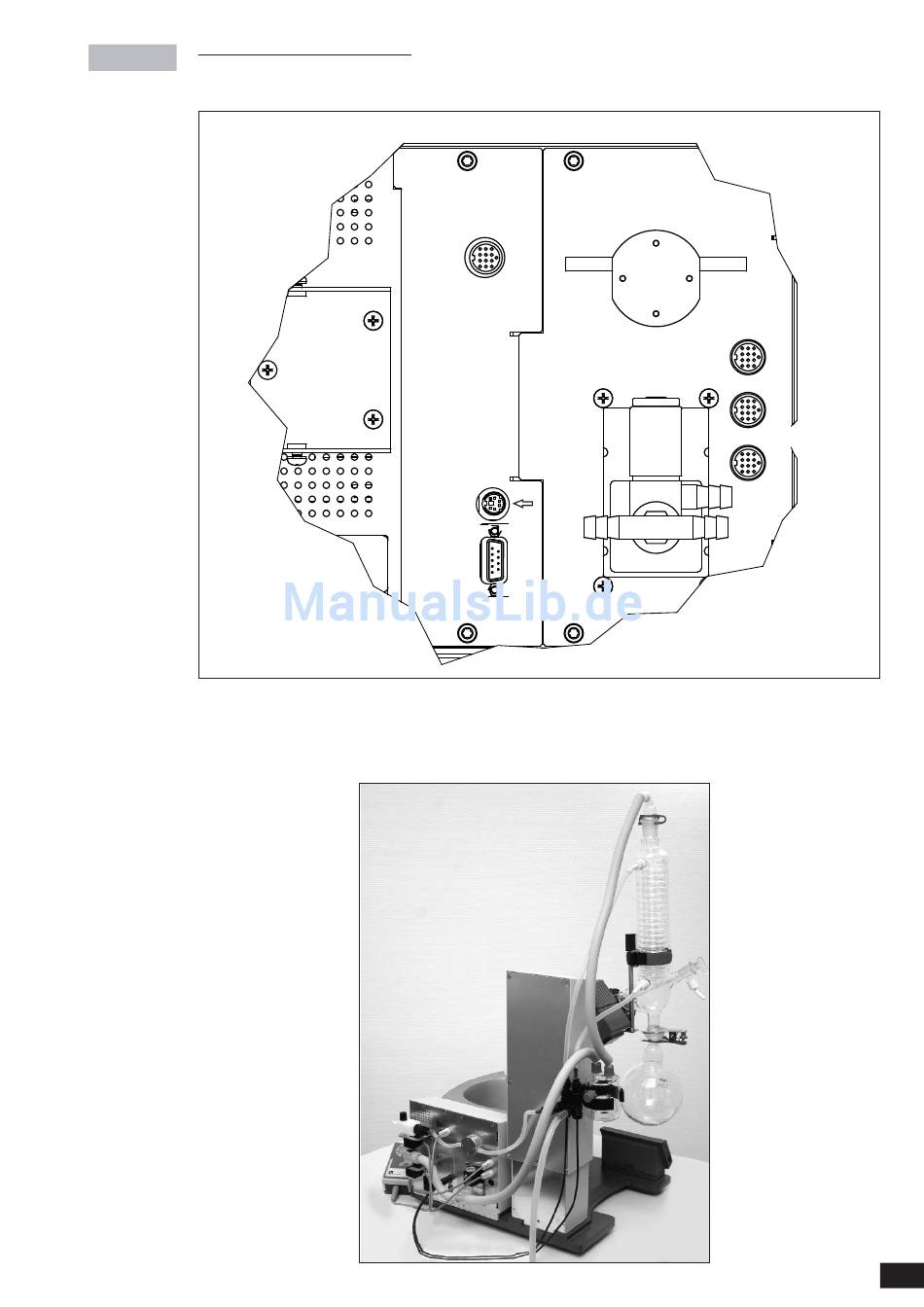

Schematic view of connections (rear view)
☞ Insert the valve connector cable (RV10.5001 or RV10.4001/2 resp. RV10.4003 Valve) resp. the network cable (RV10.4003 pump control) ) into the
appropriate socket (Fig. 20).
042009
RV10.4003
Pump control
dT
RS 232
☞ Connect the pressure sensor to the Woulff bottle and the Woulff
bottle to the vacuum connector on the condenser using the va-
cuum hoses supplied. Please note that the vacuum must always
be connected to the highest connection point on the condenser
(fig. 21).
RV10.5001
RV10.4001/2
RV10.4003 Valve
Fig. 20
Fig. 21 41
