Vacuum

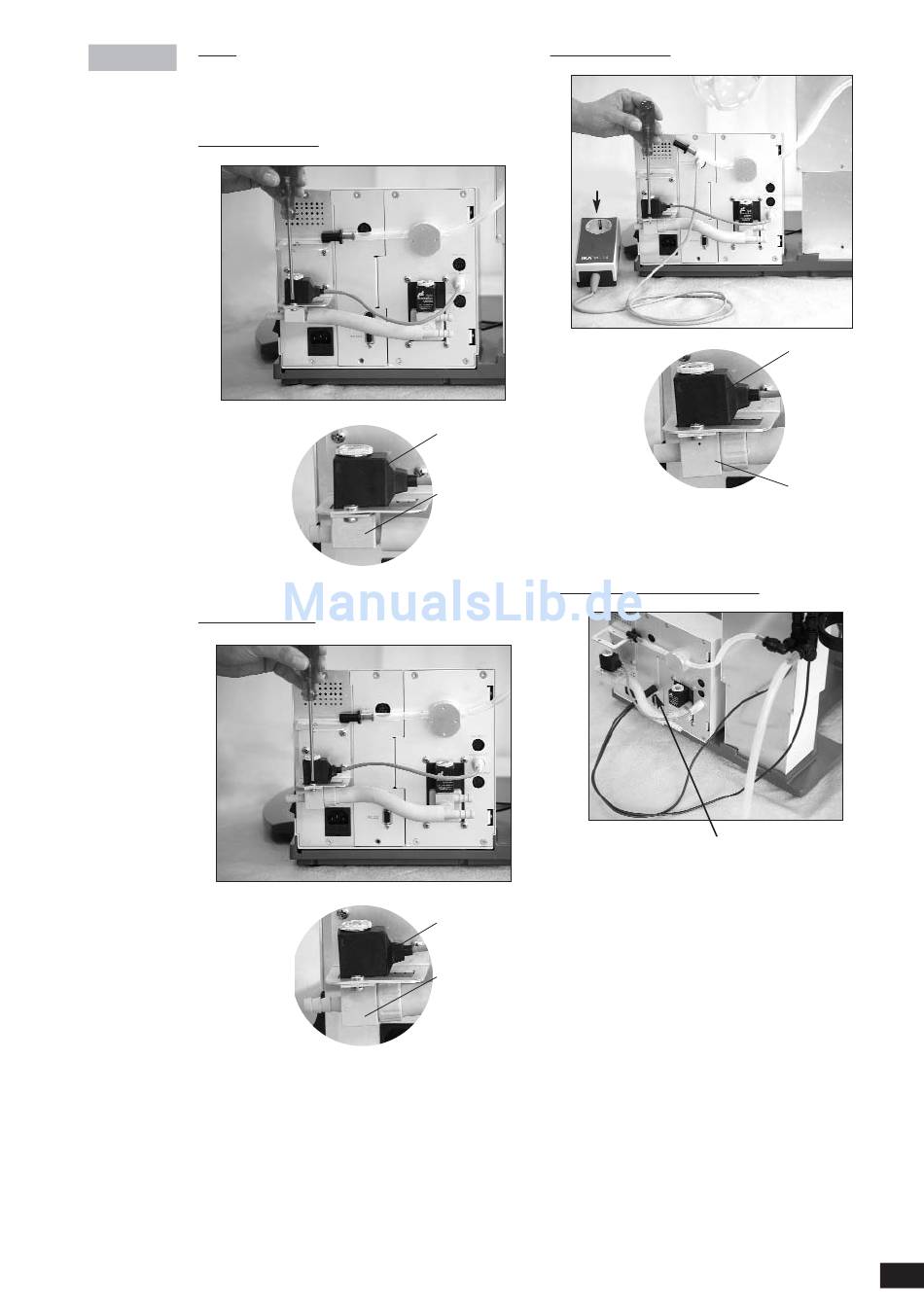

☞ Fit one of the optional RV10.4001, RV10.4002 or RV10.4003 vacuum
valves, as appropriate for the type of vacuum system used, in the
bracket provided for this purpose and connect the vacuum hose to
the valve (Figure 15a, b, c).
Connection RV 10.4001
Connection RV 10.4002
042009
Connection RV 10.4003
Power
supply
pump
Fig. 15a
Solenoid rotates freely
Direction of suction
corresponds to the
arrow marking.
Always check for cor-
rect orientation.
Connection RV10 temperature sensor (dT)
Note the direction of the arrow.
Fig. 15b
Solenoid rotates freely
Direction of suction
corresponds to the
arrow marking.
Always check for cor-
rect orientation.
Fig. 15c
Solenoid rotates freely
Direction of suction
corresponds to the
arrow marking.
Always check for cor-
rect orientation.
Fig. 15d
dT
