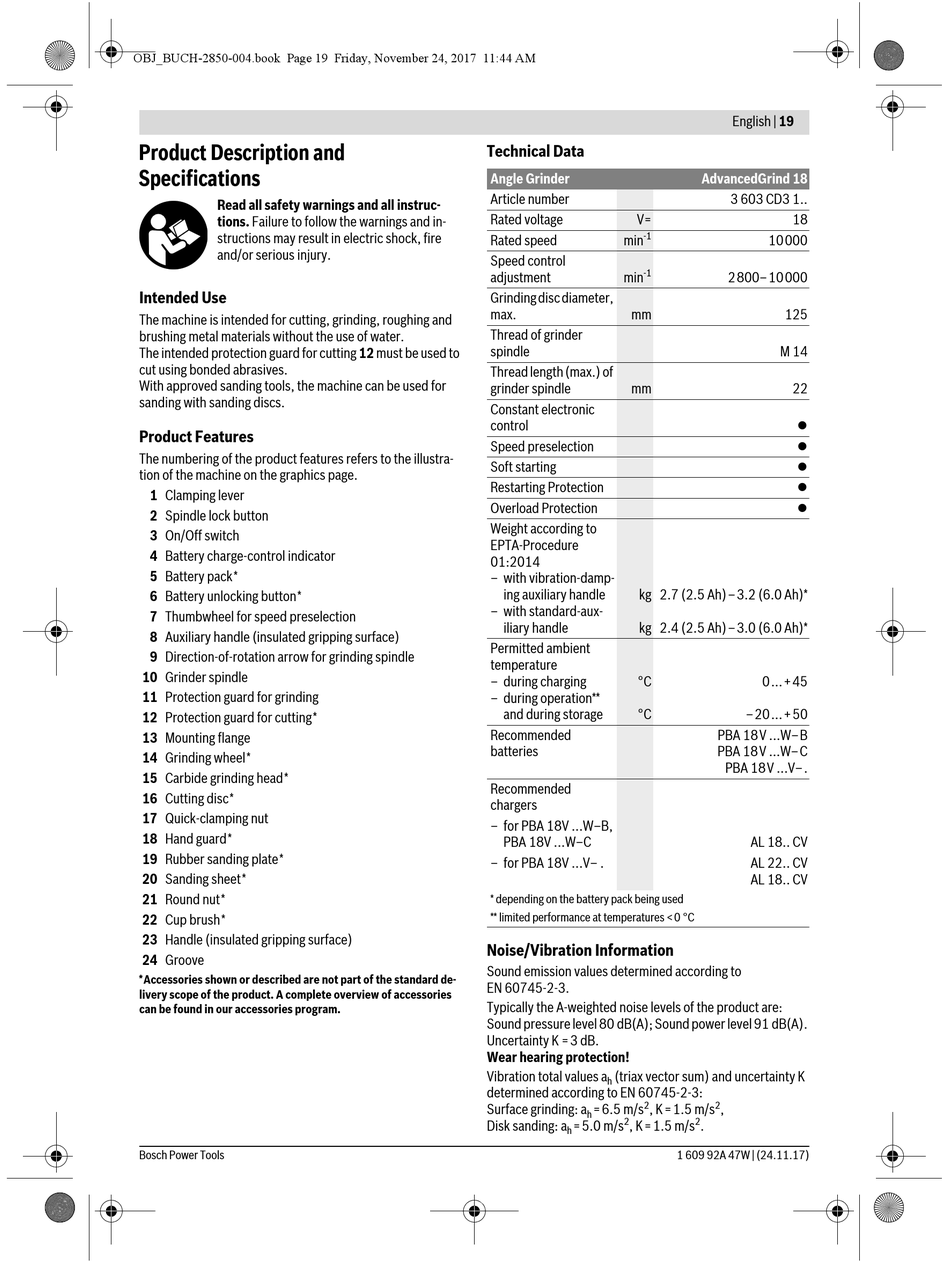

Product Description and
Specifications
Read all safety warnings and all instruc-
tions. Failure to follow the warnings and in-
structions may result in electric shock, fire
and/or serious injury.
Intended Use
The machine is intended for cutting, grinding, roughing and
brushing metal materials without the use of water.
The intended protection guard for cutting 12 must be used to
cut using bonded abrasives.
With approved sanding tools, the machine can be used for
sanding with sanding discs.
Product Features
The numbering of the product features refers to the illustra-
tion of the machine on the graphics page.
1 Clamping lever
2 Spindle lock button
3 On/Off switch
4 Battery charge-control indicator
5 Battery pack*
6 Battery unlocking button*
7 Thumbwheel for speed preselection
8 Auxiliary handle (insulated gripping surface)
9 Direction-of-rotation arrow for grinding spindle
10 Grinder spindle
11 Protection guard for grinding
12 Protection guard for cutting*
13 Mounting flange
14 Grinding wheel*
15 Carbide grinding head*
16 Cutting disc*
17 Quick-clamping nut
18 Hand guard*
19 Rubber sanding plate*
20 Sanding sheet*
21 Round nut*
22 Cup brush*
23 Handle (insulated gripping surface)
24 Groove
*Accessories shown or described are not part of the standard de-
livery scope of the product. A complete overview of accessories
can be found in our accessories program.
Bosch Power Tools
Technical Data
Angle Grinder
Article number
Rated voltage V=
-1
Rated speed min
Speed control
-1
adjustment min
Grinding disc diameter,
max. mm
Thread of grinder
spindle
Thread length (max.) of
grinder spindle mm
Constant electronic
control
Speed preselection
Soft starting
Restarting Protection
Overload Protection
Weight according to
EPTA-Procedure
01:2014
– with vibration-damp-
ing auxiliary handle kg 2.7 (2.5 Ah)–3.2 (6.0 Ah)*
– with standard-aux-
iliary handle kg 2.4 (2.5 Ah)–3.0 (6.0 Ah)*
Permitted ambient
temperature
– during charging °C
– during operation**
and during storage °C
Recommended
batteries
Recommended
chargers
– for PBA 18V ...W–B,
PBA 18V ...W–C
– for PBA 18V ...V– .
* depending on the battery pack being used
** limited performance at temperatures <0 °C
Noise/Vibration Information
Sound emission values determined according to
EN 60745-2-3.
Typically the A-weighted noise levels of the product are:
Sound pressure level 80 dB(A); Sound power level 91 dB(A).
Uncertainty K =3 dB.
Wear hearing protection!
Vibration total values a (triax vector sum) and uncertainty K
h
determined according to EN 60745-2-3:
2
Surface grinding: a =6.5 m/s , K=1.5 m/s
h
2
Disk sanding: a =5.0 m/s , K=1.5 m/s
h
English | 19
AdvancedGrind 18
3 603 CD3 1..
18
10000
2800–10000
125
M 14
22





0...+45
–20...+50
PBA 18V ...W–B
PBA 18V ...W–C
PBA 18V ...V–.
AL 18.. CV
AL 22.. CV
AL 18.. CV
2
,
2
.
1 609 92A 47W | (24.11.17)
