Use a cable cross-section for the electrical installation that is
suitable for up to 8 A (1 - 2.5 mm
recommended. The use of rigid lines may lead to broken cables.
Use flexible lines. Not all (inflexible) lines must have a wire end
splice. Check the crimped cable ends. All wires of a strand must
be enclosed in the splice in order to ensure the total cable cross-
section. The length of the wire end splice contact surface should be
6 - 7 mm.

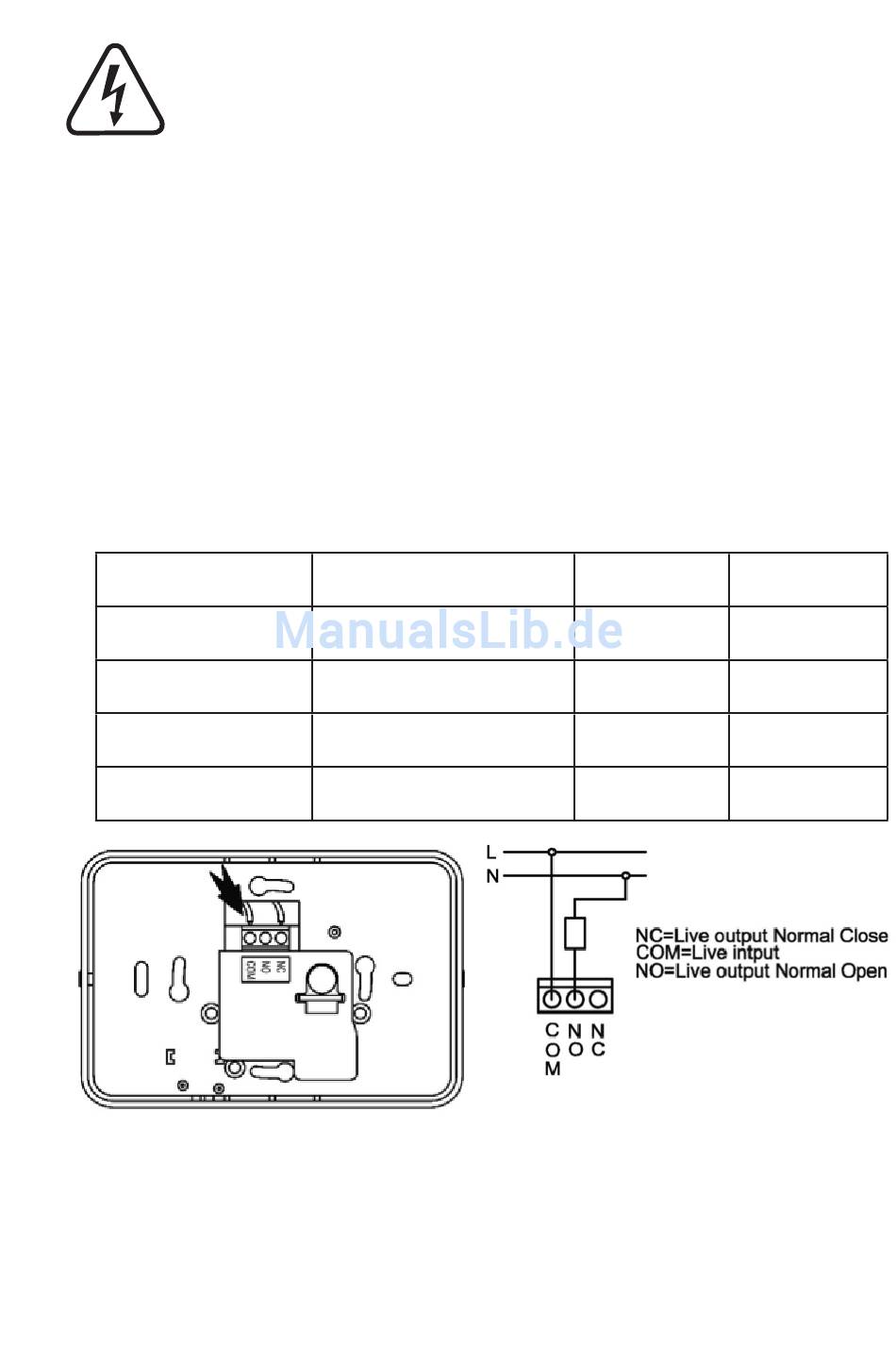

• Decide which cables to connect and how. Connect the COM output to the
phase and, alternatively, NO or NC by way of the (ohmic) load to be con-
nected to the neutral conductor. The NC output is switched as long as the
target temperature has not yet been reached. The NC output switches as
soon as the target temperature is reached. The type of circuit is shown in the
data sheet of the device to be switched.
Heater
Cooling system
42
Actual temperature
> Set temperature
< Set temperature
> Set temperature
< Set temperature
). Silicone coated cables are
2
NO output
OPEN
CLOSE
CLOSE
OPEN
NC output
CLOSE
OPEN
OPEN
CLOSE
