Be careful not to short-circuit the input and output lines. Keep the
wires separate.

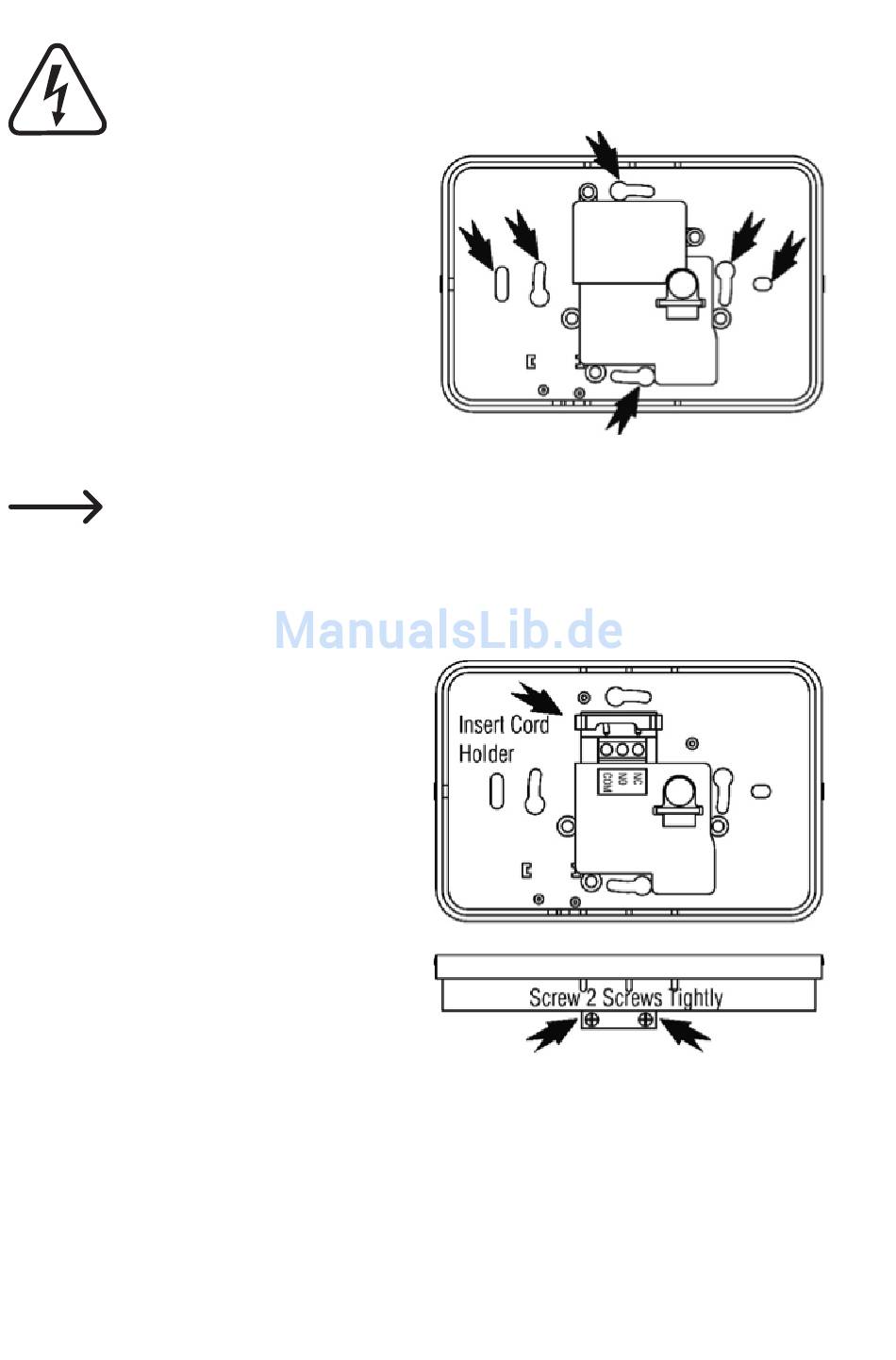

• Use the device as a template and
mark the locations for the bore-
hole on the wall. To do this use the
mounting holes in the rear panel
suitable for your mounting position.
The holes chosen should be located
opposite each other to ensure maxi-
mum stability.
• Use a 6 mm drill and bore at least 30 mm deep at the marks.
Note that, depending on the substrate, other fastening material than
the material in the installation kit .enclosed may be required. Use
the type of installation depending on the conditions.
• Press the anchors in until they fully disappear into the wall.
• Feed the cable through the relay
part and secure to the wall with
screws. Tighten the screws well.
The "UP" arrow should point to the
ceiling.
• Make sure that the cable in the
device remains flexible. Install the
clamping mechanism again and
tighten the two screws.
• Cut the strands into length and re-
move the insulation 6 - 7 mm from
the ends. Do not damage the wires.
