7. Assembly

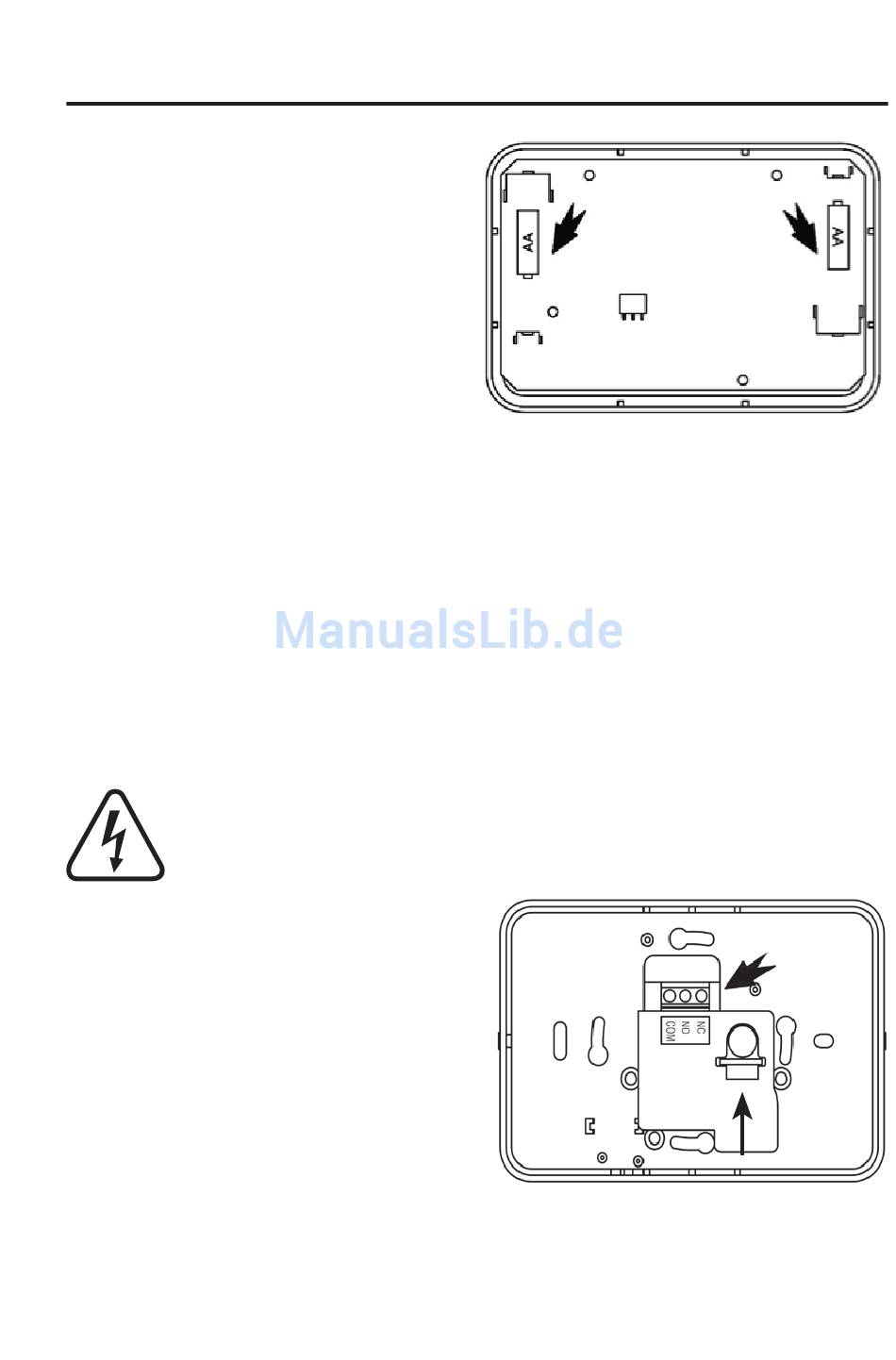

The room thermostat consists of two
parts that are held together by clips.
The switching logic with temperature
sensor, display and control panel is
in the front part. The supply batteries
(2x AA 1.5 V, not included) are placed
inside this part. Always change both
batteries and replace them with two
new batteries of same size, brand,
type and age.
Please pay attention to the correct polarity (plus/+ and minus/-) when inserting
the batteries.
Separate the parts by carefully opening the clips in the wall-mounted part and
detaching the front part with logic and display. You find the clips in the midst at
the left and right. Press below the clips and pull on the front part of the room
thermostat.
• Check whether the place where you intend to install the thermostat has wires
and cables under its surface. These can get damaged by drilling.
Switch off the main switch and secure against being switched on
again. Check that the wires are volt-free.
• Remove the terminal block on the
rear of the relay part and the cover of
the screw contacts. Route the cables
(from the rear) through the opening
of the relay part behind it. The "UP"
arrow should point to the ceiling.
40
UP
