- Seite 2 Datalogic reserves the right to change any specification at any time without prior notice. Datalogic is a registered trademark of Datalogic S.p.A. in many countries and the Datalogic logo is a trademark of Datalogic S.p.A. all licensed to Datalogic Scanning, Inc. All other trademarks and trade names referred to herein are property of their respective owners.
-
Seite 3: Inhaltsverzeichnis
CONTENTS Updates and Language Availability..............iv Gryphon™ D432/D432E Description ..............1 Using Gryphon™ D432/D432E ................2 Indicators......................4 Setup........................4 Connections ......................5 Disconnecting the Cable ..................6 USB Interface Configuration ................6 Interface Selection ....................8 Wedge Keyboard Nationality................9 USB Keyboard Nationality................. -
Seite 4: Updates And Language Availability
UK/US The latest drivers and documentation updates for this product are available on Internet. Log on to: www.scanning.datalogic.com Su Internet sono disponibili le versioni aggiornate di driver e documentazione di questo prodotto. Questo manuale è disponibile anche nella versione italiana. -
Seite 5: Gryphon™ D432/D432E Description

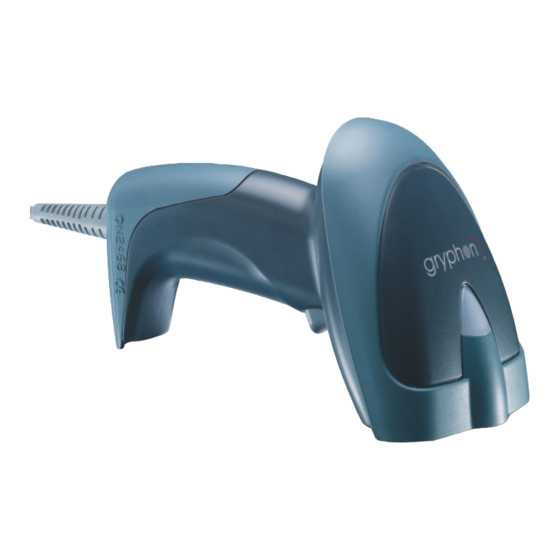

GRYPHON™ D432/D432E GRYPHON™ D432/D432E DESCRIPTION The Gryphon™ D432/D432E reader is an omni-directional barcode scanner having the following characteristics: The Gryphon™ D432/D432E is very ergonomic and user- Plug and Play friendly for intuitive operation and is equipped with plug- and-play enhanced Multistandard Architecture. It can be connected to a Host PC through a USB, RS232 or Wedge emulation cable. -
Seite 6: Datalogic
DATALOGIC USING GRYPHON™ D432/D432E Gryphon™ D432/D432E normally functions by capturing and decoding codes. The Gryphon™ D432/D432E reader uses an intelligent aiming system. By pulling the trigger, the aiming system indicates a field of view, which should be positioned over the code: Aiming System When you pull the trigger a red beam illuminates the code. - Seite 7 GRYPHON™ D432/D432E The Gryphon™ D432/D432E hand-held reader aiming system is designed for general reading and decoding of 1D and 2D symbols. Some variation in reading distance will occur due to narrow bar width and other factors. NOTE If reading codes positioned on reflective surfaces, it may be necessary to tilt the reader with respect to the barcode and/or set the Camera Control parameters.
-
Seite 8: Indicators
DATALOGIC INDICATORS LED INDICATORS The Gryphon™ D432/D432E has one green LED indicator signaling the following reader functions: STATUS BEHAVIOR Power ON The LED lights up for 2 seconds to signal the power supply is present. Power ON with USB (without... -
Seite 9: Connections
GRYPHON™ D432/D432E CONNECTIONS RS232 WEDGE The Gryphon™ D432/D432E reader requires the USB interface cable (CAB412). If required... -
Seite 10: Disconnecting The Cable
DATALOGIC DISCONNECTING THE CABLE USB INTERFACE CONFIGURATION The USB interface is compatible with: Windows 98 (and later) IBM POS for Windows Mac OS 8.0 (and later) 4690 Operating System START-UP As with all USB devices, upon connection, the Host performs several checks by communicating with the Gryphon™... -
Seite 11: First Start-Up
O.S. (if requested). When configuring the USB-COM interface, the relevant files and drivers must be installed from the USB Device Installation software, which downloaded from site http://www.scanning.datalogic.com. The reader is ready. First Start-Up Green LED blinks Connect Gryphon™ D432/D432E to Host Load drivers... -
Seite 12: Interface Selection
DATALOGIC INTERFACE SELECTION RS232 WEDGE – IBM AT AMHKHMFOHNGNENEIEPANHOGOCK AMHKHMFOHNGNENEIEPANHOGOCK AGPEPJAMDKEOFMHMLJAKFEHFKK AGPEPJAMDKEOFMHMLJALFAEHKK AMGNPJCJGIIJCMCEGJMHNDOLLK AEONPJCJGIIJCMCEHPLLHLPPJK AIFBJLBGMHPLNKECPCGMBBIBOK AIFBJLBGMHPLNPDFHGDGFIBDOK AAPHBAJJDAAGMGKDDAOHBGGLHK AAPHBAJJCGCOPJDIMBCEANODDK AEKFBONJCDDIECLFJIJKMCHLIK AFKFBPPJPJCAALOIKIECIPIKLK DLDDLDLDLLDLLLLDLLDDDLDLLL DDLDLDLDDLDLLLLDDDDDDLDLDL USB BULK USB KB EMULATION AMHKHMFOHNGNENEIEPANHOGOCK AMHKHMFOHNGNENEIEPANHOGOCK AGPEPJAMDKEOFMHMLJAKFDDHKK AGPEPJAMDKEOFMHMLJAKEDBEKK AEGNPJCJGIIJCMCEHIJOCEMNPK AMGNPJCJGIIJCMCFHMNJLBJPHK AIFBJLBGMHPKMICPIAFFEONCOK AIFBJLBGMHPKNMBGMJOJEHHAOK AAPHBAJJCCDBHCPKNDBPGLDBBK AAPHBAJICDHCJBCNKPCNNJNFHK AHLFBOPHCJGEMAMPAAEOMGMJKK AFLFBMPJIKPAMFFBBHKCCKNIKK DDDDLDLDLLDLLLLDDDLDDLDLLL... -
Seite 13: Wedge Keyboard Nationality
GRYPHON™ D432/D432E WEDGE KEYBOARD NATIONALITY This parameter default value is restored through the Interface Selection code and not through the Restore Default code. Select one of the following keyboard nationality codes. Belgian English AMHKHNFMFNGNENEIEPANHOGOCK AMHKHNFMFNGNENEIEPANHOGOCK AGOEPBIMDKEOFMHMLJAKFHHHKK AGPEPBIMDKEOFMHMLJAKFGDHKK AMONPJCJGIIJCMCEHIOEHOELLK AMGNPJCJGIIJCMCEGIPKHKFBFK AIFBJLBGMHPLMLDIEKHJAIJDOK AIFBJLBGMHPLNMDJCBLKLEHAOK AAPHBAJJDCDBPHGLDNPMOHIBFK AAPHBAJJCCBAFNLGNPOMLDHNFK... -
Seite 14: Usb Keyboard Nationality
DATALOGIC USB KEYBOARD NATIONALITY This parameter default value is restored through the Interface Selection code and not through the Restore Default code. Select one of the following keyboard nationality codes. Belgian English AMHKHNEIHNGNENEIEPANHOGOCK AMHKHNEIHNGNENEIEPANHOGOCK AGOEPBIMDKEOFMHMLJAKEGBGKK AGPEPBIMDKEOFMHMLJAKEHFGKK AMONPJCJGIIJCMCFHMKLPKLHPK AMGNPJCJGIIJCMCFGMLFPOKNBK AIFBJLBGMHPLNMCPOFAOBCPDOK AIFBJLBGMHPLMLCOIOMNKOBAOK... -
Seite 15: Reading Parameters
GRYPHON™ D432/D432E READING PARAMETERS AIMING SYSTEM DELAY Point the reader at the target and pull the trigger to enable the aiming system and the illuminator (red beam) to capture and decode the image. The aiming system will briefly switch off during the acquisition time and if no code is decoded will switch on again before the next acquisition. -
Seite 16: Default Configuration
DATALOGIC DEFAULT CONFIGURATION RS232 Standard DEFAULT SETTINGS 115200 baud, no parity, 8 data bits, 1 stop bit, no handshake, no protocol, FIFO enabled, intercharacter delay = 0, intercode delay = 0 USB COM Emulation DEFAULT SETTINGS no handshake, no protocol, FIFO enabled, intercharacter delay = 0, intercode... -
Seite 17: Code Selection
GRYPHON™ D432/D432E CODE SELECTION issue identical codes = enable enabled codes Standard Code 39: no check digit control, variable code length; EAN 8/EAN 13 / UPC A/UPC E without ADD ON: UPCE expansion disabled Interleaved 2/5: check digit control and transmission, variable code length Code 128: variable code length PDF417 Datamatrix: rectangular, normal and inverted, variable code length... -
Seite 18: Operating Test
DATALOGIC OPERATING TEST EAN-13 Code 39 (Standard) 1 234567 000992 Code 128 PDF417 Data Matrix (Normal) -
Seite 19: Technical Features
GRYPHON™ D432/D432E TECHNICAL FEATURES Gryphon™ D432/D432E Common Features Electrical Features Operating Voltage 4.75 to 5.25 V Power Consumption @ 5V (Stand-by) 120 mA @ 5V (Typical) 245 mA @ 4.75V (Peak current) 330 mA Communications Features Standard Interfaces RS232, Keyboard emulation AT IBM, USB COM emulation, USB Keyboard emulation Proprietary Interfaces USB Bulk, USB Generic HID... - Seite 20 DATALOGIC Gryphon™ D432 Optical Features Focus distance 115 mm Field of view 21.8° (H) x 16.7° (V) Horizontal field of view at 0.4d + 12 distance (d) in mm Vertical field of view at 0.3d + 9 distance (d) in mm...
- Seite 21 GRYPHON™ D432/D432E Gryphon™ D432E Optical Features Focus distance 65 mm Field of view 20° (H) x 15° (V) Horizontal field of view at 0.32d + 8.67 distance (d) in mm Vertical field of view at 0.24d + 6.50 distance (d) in mm Max Resolution Linear codes - mm Datamatrix –...
-
Seite 22: Services And Support
5 years from the date of shipment, provided that the product is operated under normal and proper conditions. Datalogic has the faculty to repair or replace the product, these provisions do not prolong the original warranty term. -
Seite 23: Compliance
FCC COMPLIANCE Modifications or changes to this equipment without the expressed written approval of Datalogic could void the authority to use the equipment. This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference which may cause undesired operation. -
Seite 24: Laser Safety
DATALOGIC LASER SAFETY The Gryphon™ D432/D432E hand-held reader is a Class 1 LED product regarding its Illuminator and a Class 2 laser product regarding its Aiming System. LED Illuminator The use of an illuminator in the Gryphon™ D432/D432E hand-held reader is a... - Seite 25 GRYPHON™ D432/D432E DIE LASER- LA LUCE LASER LE RAYON A LUZ LÁSER ES STRAHLUNG IST FÜR È VISIBILE LASER EST VISIBLE AL OJO DAS MENSCHLICHE ALL'OCCHIO VISIBLE À L'OEIL HUMANO Y ES AUGE SICHTBAR UND UMANO E VIENE NU ET IL EST EMITIDA POR LA WIRD AM STRAHLAUS EMESSA DALLA...
-
Seite 26: Norm Für Die Lasersicherheit
DATALOGIC ITALIANO Le seguenti informazioni vengono fornite dietro direttive delle autorità internazionali e si riferiscono all’uso corretto del terminale. NORMATIVE STANDARD PER LA SICUREZZA LASER Questo prodotto risulta conforme alle normative vigenti sulla sicurezza laser alla data di produzione: CDRH 21 CFR 1040 e EN 60825-1. - Seite 27 GRYPHON™ D432/D432E FRANÇAIS Les informations suivantes sont fournies selon les règles fixées par les autorités internationales et se réfèrent à une correcte utilisation du terminal. NORMES DE SECURITE LASER Ce produit est conforme aux normes de sécurité laser en vigueur à sa date de fabrication: CDRH 21 CFR 1040 et EN 60825-1.
-
Seite 28: Power Supply
DATALOGIC The Gryphon™ D432/D432E Hand-Held Reader is not user-serviceable. Opening the case of the unit can cause internal damage and will void the warranty. CAUTION POWER SUPPLY This device is intended to be connected to a UL Listed/CSA Certified computer which supplies power directly to the reader or else be supplied by a UL Listed/CSA Certified Power Unit marked "Class 2"... - Seite 29 Datalogic Scanning, Inc. 959 Terry Street Eugene, OR 97402 dichiara che declares that the déclare que le bescheinigt, daß das Gerät declare que el Gryphon™ D432 Gryphon™ D432E e tutti i suoi modelli and all its models et tous ses modèles...
