Seite 2: Disclaimer
Datalogic representative. Electronic versions may either be downloadable from the Datalogic website (www.scanning.datalogic.com) or provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publications, please let us know via the "Contact Datalogic" page.
Seite 3: Inhaltsverzeichnis
CONTENTS Disclaimer .....................iii GENERAL VIEW ..................v COMPLIANCE.....................VI FCC Compliance..................vii Laser Safety....................vii WEEE Compliance ..................xi Power Supply....................xi PATENTS ....................xi WARRANTY ....................xi SERVICES AND SUPPORT............... xii INTRODUCTION ..................1 Gryphon™ D432/D432E Description ............1 Package Contents..................2 Configuration Methods .................. 2 2.3.1 Reading Configuration Codes ...............
Seite 4 CONFIGURATION USING CODE SYMBOLS ........... 16 Default Settings................... 17 Changing Default Settings ................22 Advanced Data Format ................94 5.3.1 Format Definition..................95 5.3.2 Match Conditions ..................112 5.3.3 Format Enable/Disable ................114 5.3.4 Mismatch Result ..................115 REFERENCES ..................116 RS232 –...
Seite 5: General View

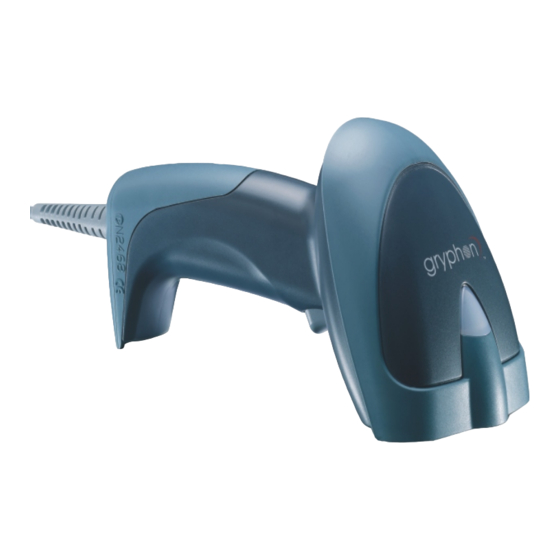

GENERAL VIEW Gryphon™ D432/D432E Green LED Figure A...
Seite 6: Compliance
COMPLIANCE Aiming System Laser Beam Output Window Figure B - Gryphon™ D432/D432E Reader Product Labels...
Seite 7: Fcc Compliance
FCC COMPLIANCE Modifications or changes to this equipment without the expressed written approval of Datalogic could void the authority to use this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference which may cause undesired operation.
Seite 8 Aiming System The Gryphon™ D432/D432E aiming system meets the requirements for laser safety. CAUTION-CLASS 2 LASER LIGHT WHEN OPEN DO NOT STARE INTO BEAM LASER LIGHT - DO NOT STARE INTO BEAM CLASS 2 LASER PRODUCT MAX. OUTPUT RADIATION 0.25 mW - EMITTED WAVELENGTH 640~660 nm TO EN 60825-1:2001 LASERSTRAHLUNG –...
Seite 9: Norm Für Die Lasersicherheit
The product utilizes a low-power laser diode. Although staring directly at the laser beam momentarily causes no known biological damage, avoid staring at the beam as one would with any very strong light source, such as the sun. Avoid that the laser beam hits the eye of an observer, even through reflective surfaces such as mirrors, etc.
Seite 10 Laserstrahl zu schauen, genauso wenig wie in starke Lichtquellen (z.B. die Sonne). Vermeiden Sie es, den Laserstrahl weder gegen die Augen eines Beobachters, noch gegen reflektierende Oberflächen zu richten. FRANÇAIS Les informations suivantes sont fournies selon les règles fixées par les autorités internationales et se réfèrent à...
Seite 11: Weee Compliance
5 years from the date of shipment, provided that the product is operated under normal and proper conditions. Datalogic has the faculty to repair or replace the product; these provisions do not prolong the original warranty term. The warranty does not apply to any product that has been subject to misuse,...
Seite 12: Services And Support
SERVICES AND SUPPORT Datalogic provides several services as well as technical support through its website. Log on to www.scanning.datalogic.com and click on the links indicated for further information including: • PRODUCTS Search through the links to arrive at your product page where you can download specific Manuals and Software &...
Seite 13: Introduction
INTRODUCTION INTRODUCTION GRYPHON™ D432/D432E DESCRIPTION The Gryphon™ D432/D432E reader is an omni-directional barcode scanner having the following characteristics: Plug and Play The Gryphon™ D432/D432E is very ergonomic and user- friendly for intuitive operation and is equipped with plug-and- play enhanced Multistandard Architecture. It can be connected to a Host PC through a USB, RS232 or Wedge emulation cable.
Seite 14: Package Contents
Appendix D. 2.3.2 Using VisualSetup The Datalogic VisualSetup program, available on the website, allows programming the reader by selecting configuration commands or printing them through a user- friendly graphical interface running on the PC. These commands are sent to the reader over the current communication interface;...
Seite 15: Using Gryphon™ D432/D432E
USING GRYPHON™ D432/D432E USING GRYPHON™ D432/D432E AIMING SYSTEM The Gryphon™ D432/D432E reader uses an intelligent aiming system. By pulling the trigger, the aiming system indicates a field of view, which should be positioned over the code: Figure 1 - Aiming System When you pull the trigger a red beam illuminates the code.
Seite 16: Normal Operation
GRYPHON™ D432/D432E The field of view indicated by the aiming system will be smaller when the Gryphon™ D432/D432E is closer to the code and larger when it is farther from the code. Symbologies with smaller bars or elements (mil size) should be read closer to the unit.
Seite 17: Basic Configuration Parameters
USING GRYPHON™ D432/D432E normal operation. To capture another image you must read another Capture Image Code of the same or a different Preset Configuration. You can use the aiming system to position the reader from the object (ensure the reader is about centered over the target). Adjust the distance at which you are holding the reader (see Figure 2).
Seite 18: Advanced Configuration Parameters
GRYPHON™ D432/D432E 3.3.2 Advanced Configuration Parameters An image portion (Window), instead of an entire image, can be captured. This parameter is generally used for particular fixed reading position applications. height width An Image Window may either be as large as the image itself or smaller (10 x 10 pixels minimum), and is defined by its origin (the coordinate X ), its width (number of pixels along the X Axis) and its height (number of pixels along the Y Axis).
Seite 19: Autoscanning
USING GRYPHON™ D432/D432E bright objects inside the image will be better distinguishable. Default value is 0%, which means that no contrast adjustment is performed. You can set the Image Color Depth by selecting 256 gray levels (default), 16 gray levels, or 2 gray levels. Higher color depths yield larger image files. This option is ignored if the JPEG format is selected, (256 gray levels only).
Seite 20: Stand Autorecognition
GRYPHON™ D432/D432E 3.4.3 Stand Autorecognition Pair the reader to the stand paying attention to insert the handle into the stand clip. Correct insertion will be signaled by a beep; then, the reader will be ready to read barcodes. Read the configuration codes at page 70 to automatically enter in Normal or Pattern Autoscanning mode.
Seite 21: Defining Data Formatting
USING GRYPHON™ D432/D432E when a fixed reading distance different from the Gryphon™ D432/D432E focus distance is used. The Gryphon™ focus distance is 115 mm for Gryphon™ D432, and 65 mm for Gryphon™ D432E. Refer to the VisualSetup software program for performing the aiming system calibration.
Seite 22: Concatenation
GRYPHON™ D432/D432E 3.6.1 Concatenation It is possible to concatenate up to 4 different codes, set their length and enable the intercode delay between them (the intercode delay is set in the specific interface parameters, see page 25, 27 and 32). When enabling the delay one or more global headers and terminators are added to the decoded data.
Seite 23: Initial Setup
INITIAL SETUP INITIAL SETUP This procedure allows setting up the reader to operate with the default settings: Whenever you need to change the default values refer to par. 5.2. RS232 INTERFACE SELECTION The Gryphon™ D432/D432E reader requires the RS232 interface cable and the AC/DC power adapter to be connected.
Seite 24: Wedge Interface Selection
GRYPHON™ D432/D432E WEDGE INTERFACE SELECTION The Gryphon™ D432/D432E reader requires the Wedge interface cable. To install and configure your reader with the Wedge interface, follow these instructions: Connect the cable to the Gryphon™ D432/D432E reader and to the PC as shown in Figure 4.
Seite 25: Usb Interface Selection
At this point you can read the USB interface configuration code according to your application. Load drivers from the O.S. (if requested). When configuring the USB-COM interface or DLBulkUSB interface, the relevant files and drivers must be installed and can be downloaded from the web site http://www.scanning.datalogic.com. The reader is ready.
Seite 26: First Start-Up
GRYPHON™ D432/D432E FIRST START-UP Green LED blinks Connect Gryphon™ D432/D432E to Host Load drivers (if requested) Does a dialog box appear Disconnect reader Green LED off warning that Bus at Host power is not sufficient? Connect external power supply to cable and power up Green LED off - BEEP OK Select desired USB...
Seite 27 INITIAL SETUP To install and configure your reader with one of the USB interfaces, see the "First Start-up" diagram and follow these instructions. Make all the Gryphon™ D432/D432E reader connections as shown in Figure 5. Power up your PC. If required Figure 5 –...
Seite 28: Configuration Using Code Symbols
GRYPHON™ D432/D432E CONFIGURATION USING CODE SYMBOLS This section describes the programming method of using configuration code symbols to program your reader. By using the Gryphon™ D432/D432E reader to read/decode these special configuration symbols, you can configure, and obtain information from its system software.
Seite 29: Default Settings
CONFIGURATION USING CODE SYMBOLS DEFAULT SETTINGS Configuration Field Default Setting RS232 Communication Baud Rate 115200 Parity, Data Bits, Stop Bits No parity; 8 Data bits; 1 Stop bit Handshake None ACK/NACK Protocol None FIFO Enabled Intercharacter Delay Intercode Delay USB COM Emulation Handshake None ACK/NACK Protocol...
Seite 30 GRYPHON™ D432/D432E Configuration Field Default Setting Data Format-Symbology Dependent Parameters Symbology Specific Format Select All Symbology Headers No headers Symbology Terminators No terminators Symbology Character Substitution No character to substitute Symbology Character Deletion No character to delete Data Format-Concatenation Concatenation Disabled Define Concatenation 2 EAN/UPC codes concatenated...
Seite 31 CONFIGURATION USING CODE SYMBOLS Configuration Field Default Setting Code 32 Selection Disabled Interleaved 2 of 5 Selection Enabled - check digit control and tx Code Length Check Disabled Minimum Length Maximum Length Codabar Selection Disabled Code Length Check Disabled Minimum Length Maximum Length Code 128 Code128 Selection...
Seite 32 GRYPHON™ D432/D432E Configuration Field Default Setting Data Matrix Selection Enabled - normal & inverted Rectangular Style Enabled Minimum Code Length 0001 Maximum Code Length 3600 Selection Enabled Postal Codes Selection Disabled Maxicode Maxicode Mode 1 Disabled Maxicode Mode 2 Disabled Maxicode Mode 3 Disabled Maxicode Mode 4...
Seite 33 CONFIGURATION USING CODE SYMBOLS Configuration Field Default Setting Reading Parameters (continued) Autoscan Hardware Trigger Enabled Autoscan Illumination System Disabled Stand Autoscan Mode Normal Safety Time 500 ms (if Autoscan mode or Software trigger type is selected and the Multiple Reads per Cycle option is enabled. Image Formatting Image Preset 1, 2, 3, 4 Image Format...
Seite 34: Changing Default Settings
GRYPHON™ D432/D432E CHANGING DEFAULT SETTINGS Once the reader is setup, you can change the default parameters to meet your application needs. Refer to the preceding paragraphs for initial configuration in order to set the default values and select the interface for your application. In this manual, the configuration parameters are divided into logical groups making it easy to find the desired function base on its reference group.
Seite 35 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK RS232 AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL RS232 INTERFACE 2400 baud 1200 baud AODOBPHMHNGNENEIEPANHOGOCK AODOBPHMHNGNENEIEPANHOGOCK AHHPMBIMDKEOFMHMLJALEAEHIK AHHPMBAMDKEOFMHMLJAKFFEFIK AKCBPJCJGIIJCMCFGKKJKOJDJK AKCBPJCJGIIJCMCEHMOCCMGBNK AEFBJLBGMHPLMKBDIAOJAOCFGK AEFBJLBGMHPKNKGHFCHBECLHGK AAPHBAJJDEBGGOGPJMMKGENDBK AAPHBAJICAFOGLINMDNLINCNFK AGKFAMOCFGFEOEMPKONGEDGLJK AFKFAPIBAPGEIJIHHJLGAGJLIK DDDLLLLDDLLLLLLDLDLDDLDLDL DDDLLLLDDLLLLLLDDDLDDLDLDL...
Seite 36 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK RS232 AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL ARITY None AODOCKHMHNGNENEIEPANHOGOCK AODOCKHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKEHDEIK AHHPMBIMDKEOFMHMLJAKEBBHIK AKCBPJCJGIIJCMCFHKNICLPJPK AKCBPJCJGIIJCMCFGLOEIEEHJK AEFBJLBGMHPKMKCBGHIFAIHGGK AEFBJLBGMHPKMNFFJCPJKOMHGK AAPHBAJICBECCPIFDALHLEPDBK AAPHBAJIDCAFHGCKNNPLNMJBHK AHKFAKNLOFKOENMPPBAEMFGLKK AGKFAPMCCDJIOHIKFEHIEMBKIK DLLLLLLDDDLLLLLDDLLDDLDLDL DLLLLLLDDDLLLLLDLLLDDLDLDL Even AODOCKHMHNGNENEIEPANHOGOCK AHHPMBAMDKEOFMHMLJALFEBFIK AKCBPJCJGIIJCMCEHNKPAGLFNK...
Seite 37 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK RS232 AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL RX T IMEOUT RX Timeout AODKBPHMFNGNENEIEPANHOGOCK Read a number in the range AHPNIJAMDKEOFMHMLJALFFCFIK AKCBPJCJGIIJCMCEGJNHKMOHPK 00-99, where: AEFBJLBGMHPLMOFHAGONLNCEGK AAPHBAJJDFAAALCKIJIBHMDDFK = disabled AFKFAMNLMCOCGLMJDCDIENPLKK...
Seite 38 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL USB COM Emulation ANDSHAKE None XON/XOFF AOALGKHMHNGNENEIEPANHOGOCK AOALGKHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFDBFIK AHHPMBIMDKEOFMHMLJALFFDGIK AKCBPJCJGIIJCMCEHONJKCAFPK AKCBPJCJGIIJCMCEGPOFANLLJK AEFBJLBGMHPKMMEGABIEOIJGGK AEFBJLBGMHPKMLDCPEPIEOCHGK AAPHBAJICGEOOFKLJMHMGMPDFK AAPHBAJIDFAJLMAEHBDAAEJBDK AGLFAJIKEDPOKPPMNLCCCFGIJK AHLFAMJDIFMIAFLJHOFOKMBJLK DLLLLLLDDLDLLLLDDDLDDLDLLL DLLLLLLDDLDLLLLDLDLDDLDLLL RTS/CTS...
Seite 39 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL NTERCHARACTER ELAY Intercharacter Delay AOALBPHMHNGNENEIEPANHOGOCK = disabled AHPNIJAMDKEOFMHMLJAKEHCHIK AKCBPJCJGIIJCMCEHPPEHPDJJK 01-99 = delay from 1 to 99 msec AEFBJLBGMHPKNNHNAHBILCDHGK AAPHBAJICHHCPKNDFOOMNODPDK AGKFANKJMDIGGDJODMDIODHJKK DDDLLLLDLLLLLLLDLDLDDLDLDL...
Seite 40 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL USB Keyboard Emulation FIFO Disabled Enabled AOAPGKFOHNGNENEIEPANHOGOCK AOAPGKFOHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALECDEIK AHHPMBIMDKEOFMHMLJALEEBHIK AKCBPJCJGIIJCMCEHJJOKGPNLK AKCBPJCJGIIJCMCEGIKCAJEDNK AEFBJLBGMHPLMPBJKCBJCCEFGK AEFBJLBGMHPLMIGNFHGFIEPEGK AAPHBAJICBGIEIKMBJAMEMFDFK AAPHBAJIDCCPBBADPEEACEDBDK AHLFAJLKDIKCEOHGFFIACHKIKK AGLFAMKDPOJEOEDDPAPMKONJIK DDDLLDLDDDLLLLLDLDDDDLDLLL DDDLLDLDDDLLLLLDDDDDDLDLLL NTERCHARACTER...
Seite 41 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL EYBOARD ATIONALITY This parameter default value is restored through the Interface Selection code and not Restore Default. Belgian English AOAPCOGMHNGNENEIEPANHOGOCK AOAPCOHMHNGNENEIEPANHOGOCK...
Seite 42 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL EYBOARD PEED This parameter default value is restored through the Interface Selection code and not Restore Default. Normal Fast AOAPBPGMFNGNENEIEPANHOGOCK AOAPBPHMFNGNENEIEPANHOGOCK...
Seite 43 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK WEDGE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL WEDGE INTERFACE Caps Lock Off Caps Lock On AOCOCOFOHNGNENEIEPANHOGOCK AOCOCOFOHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKEEHFIK AHHPMBIMDKEOFMHMLJAKECFGIK AKCBPJCJGIIJCMCFHPJMFONJPK AKCBPJCJGIIJCMCFGOKAPBGHJK AEFBJLBGMHPKMPEAEFKPFEBEGK AEFBJLBGMHPKMIDELANDPCKFGK AAPHBAJJDDHLCANDMPHCNCFDHK AAPHBAJJCADMHJHMCCDOLKDBBK AFLFALKFFFDCEGMMLKJKOLEKJK AELFAOLMJDAEOMIJBPOGGCDLLK...
Seite 44 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK WEDGE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL NTERCODE ELAY Intercode Delay AOCKFPHMDNGNENEIEPANHOGOCK = disabled AHPNIJAMDKEOFMHMLJAKFBBFIK AKCBPJCJGIIJCMCFHNLPKDLHLK 01-99 = delay from 1 to 99 sec AEFBJLBGMHPKNOGELELHHDIFGK AAPHBAJJDBFHAJGFNAJNGKBDBK AHLFAMLDKHNAMPJPLJJKMMKLJK...
Seite 45 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK WEDGE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL AOCOCOHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFHCGIK AKCBPJCJGIIJCMCFHONBADFLJK AEFBJLBGMHPKNIEKDOIAILNEGK AAPHBAJJCEHMLKBNKBBBBBCHFK AHKFALMFNCNOMKPODNGAEGPIIK DDLLLLLDLDLLLLLDLDDDDLDLLL EYBOARD ETTING The values set by this procedure are not effected by the Restore Default code but will be lost if the Interface Selection code is read.
Seite 46 WEDGE Some ASCII characters may be missing as this depends on the type of keyboard: these are generally particular characters relative to the various national symbologies. In this case: • The first 4 characters (Shift, Alt, Ctrl, and Backspace) can only be substituted with keys not used, or substituted with each other.
Seite 47: Acoustic Signals
WEDGE Acoustic Signals Four types of acoustic signals are associated with the following steps: Enter keyboard setup Exit keyboard setup SHIFT, ALT, CTRL, BACKSPACE keys Keyboard keys (SHIFT, ALT, CTRL, BACKSPACE excluded) These signals facilitate the selection of those characters requiring more than one key pressed simultaneously.
Seite 48 WEDGE XTENDED EADER ERMINATOR For the WEDGE interface, the following extended keyboard values can also be configured: These values are restored through the Interface Selection code and not Restore Default. EXTENDED KEYBOARD TO HEX CONVERSION IBM AT ENTER HOME PG UP PG DOWN ↑...
Seite 49 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK WEDGE AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL USTOM XTENDED EADER ERMINATOR Set Extended Keys AOCOBLHMFNGNENEIEPANHOGOCK AHPNIJAMDKEOFMHMLJAKFAHEIK AKCBPJCJGIIJCMCEGJMDPHOPJK AEFBJLBGMHPKNMHNBGHNEDDEGK AAPHBAJJCBCBJNFHFHFBFPJNHK AFLFAOPHBFNMIOAIIIOEMAEJLK DLLLLLLDDDLLLLLDLDDDDLDLLL The extended Header/Terminator keys for Wedge Interface users can be customized by defining them through a simple keyboard setting procedure.
Seite 50 WEDGE If the first 4 KEYS (Shift, Alt, Ctrl, and Backspace) are not available on your keyboard, you can only substitute them with keys not used, or substitute them with each other. The reader signals the end of the procedure with 3 beeps indicating the keys have been registered.
Seite 51 WEDGE Acoustic Signals Four types of acoustic signals are associated with the following steps: Enter keyboard setup Exit keyboard setup SHIFT, ALT, CTRL, BACKSPACE keys Keyboard keys (SHIFT, ALT, CTRL, BACKSPACE excluded) These signals facilitate the selection of those characters requiring more than one key pressed simultaneously.
Seite 52: Data Format
Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK DATA FORMAT AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL DATA FORMAT The Data Format parameters can be restored to their default values using the following methods: the general “Restore Default”...
Seite 53 AHHPMBAMDKEOFMHMLJALEGCEIK AKCBPJCJGIIJCMCEGKJIDLDDLK AEFBJLBGMHPLMPGPPHKFDNJHGK AAPHBAJJCBHPJOJIKGAGPFMNBK AFLFAINIOIDAKBHBLJNIIBHJJK DLDLLLLDDLLLLLLDDLDDDLDLLL USTOM DENTIFIER Custom Code Identifier AOCPBLHMHNGNENEIEPANHOGOCK Select a Datalogic Standard Code AHPNIJAMDKEOFMHMLJALEHFHIK AKCBPJCJGIIJCMCFGJLLDNBJNK Identifier from the Code Identifier AEFBJLBGMHPKNOGANCECFEMGGK AAPHBAJIDDGNCMJCAFDEFOFNHK Table in Appendix AEKFALLKNIIMEADJNKJEAODLJK DLDLLLLDDDLLLLLDLLLDDLDLLL Set the number of characters in the range 0-3, where 0 = Code ID disabled.
Seite 54 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK DATA FORMAT AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL EADERS Disabled Enabled AOCLGKHMFNGNENEIEPANHOGOCK AOCLGKHMFNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFBEEIK AHHPMBIMDKEOFMHMLJALFHGHIK AKCBPJCJGIIJCMCFHIKKDCLPNK AKCBPJCJGIIJCMCFGJJGJNABLK AEFBJLBGMHPLMNFFBGNNEOOGGK AEFBJLBGMHPLMKCBODKBOIFHGK AAPHBAJIDGHEPGHBBJPCOGPHBK AAPHBAJICFDDKPNOPELOIOJFHK AELFAIKKKDJICAIGFBKGKACIKK AFLFANLDGFKOIKMDPENKCJFJIK DDDLLLLDLDDLLLLDLLLDDLDLDL DDDLLLLDLDDLLLLDDLLDDLDLDL ERMINATORS Set Terminators...
Seite 55 The “Symbology Specific Format Default” code on page 46 allows restoring the symbology dependent parameters related to a specific code family to the default values. YMBOLOGY PECIFIC ORMAT Symbology Specific Format AOCLCIHOFNGNENEIEPANHOGOCK Select a Datalogic Standard Code AHPNIBAMDKEOFMHMLJAKEGHGIK AKCBPJCJGIIJCMCFHLNMJCGPLK Identifier from the Code Identifier AEFBJLBGMHPLMMGPEPDOAPMGGK AAPHBAJJDCFMDNCMBONAPKCNHK Table in Appendix AGKFALICLLGKIBEJGFOCKENJLK...
Seite 56 DATA FORMAT AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL EADERS Headers AOCPFPHMFNGNENEIEPANHOGOCK Select a Datalogic Standard Code AHPNIJAMDKEOFMHMLJALEBGEIK AKCBPJCJGIIJCMCFHKPEEAKDLK Identifier from the Code Identifier AEFBJLBGMHPKNPAPMMGMNIIHGK AAPHBAJIDDEICPPPODIOCPCPHK Table in Appendix AELFANOCPAJCGLHLEJKOEMJJLK DLLLLDLDLLDLLLLDLLDDDLDLLL 0 = disabled 1 = enabled YMBOLOGY ERMINATORS...
Seite 57 AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL YMBOLOGY HARACTER UBSTITUTION Symbology Character Substitution AOCPBLHMHNGNENEIEPANHOGOCK Select a Datalogic Standard Code AHPNIJAMDKEOFMHMLJAKFAGGIK AKCBPJCJGIIJCMCFGLKMBHMJPK Identifier from the Code Identifier AEFBJLBGMHPKMKHEEDGFDMGHGK AAPHBAJJDCFDBILOKBFBDLPDDK Table in Appendix AHKFAINIMEHCEPHBKFHEKPGIIK DLLLLDLDDLDLLLLDLDDDDLDLLL Read the corresponding character as Hex value from the Hex/Numeric table which identifies the character to be substituted.
Seite 58 AAPHBAJJCCFHCMBKKMPIKJFFBK Table in Appendix AEKFAONABANMAJILDPBGECLIIK DDLLLDLDLDLLLLLDDDLDDLDLDL 0 = disabled 1 = enabled YMBOLOGY PECIFIC ORMAT EFAULT Symbology Specific Format Default AOCPBLDIHNGNENEIEPANHOGOCK Select a Datalogic Standard Code Identifier AHPNIJAMDKEOFMHMLJALFAAEIK AKCBPJCJGIIJCMCEHOIKHBLJNK from Code Identifier Table AEFBJLBGMHPKMMHNPMDEIGJGGK AAPHBAJICDAGPDAKALKOINIBHK Appendix AFKFANJCEPAAEBCDGCFGONPKKK DLDLDDLLDDDLLLLDDLLDDLDLLL Concatenation EFINE...
Seite 59 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK DATA FORMAT AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Concatenation Options IRST ONCATENATED ENGTH Set First Concatenated Code Length AOCLCKHOBNGNENEIEPANHOGOCK Read the number in the range AHHPMBIMDKEOFMHMLJAKEABHIK AKCBPJCJGIIJCMCFHLKPMKFPLK 000-255.
Seite 60 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK DATA FORMAT AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL ONCATENATION WITH NTERCODE ELAY Disabled Enabled AOCLCKFMFNGNENEIEPANHOGOCK AOCLCKFMFNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFAEHIK AHHPMBIMDKEOFMHMLJAKFGGEIK AKCBPJCJGIIJCMCEGKOHEIPLNK AKCBPJCJGIIJCMCEHLNLOHEFLK AEFBJLBGMHPLNKDDEFMGJJDGGK AEFBJLBGMHPLNNEHLALKDPIHGK AAPHBAJICAGADJGKIBPOIBOLHK AAPHBAJIDDCHGAMFGMLCOJIJBK AGKFAILHIGKOGCKPACNKMNLKLK AHKFANKOEAJIMIOKKHKGEEMLJK DLDLLDLDDLDLLLLDDLLDDLDLLL...
Seite 61 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK DATA FORMAT AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL ONCATENATION ESULT No Code Identifier Use First Code Identifier AOCLCKFMHNGNENEIEPANHOGOCK AOCLCKFMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKEFEHIK AHHPMBIMDKEOFMHMLJAKEDGEIK AKCBPJCJGIIJCMCFHJKBJHCJJK AKCBPJCJGIIJCMCFGIJNDIJHPK AEFBJLBGMHPLNIALGPDINCKEGK AEFBJLBGMHPLNPHPJKEEHEBFGK AAPHBAJIDACAPAGHGGNBOFFNBK AAPHBAJICDGHKJMIILJNINDPHK...
Seite 62: Camera Control
Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK CAMERA AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK CONTROL AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL CAMERA CONTROL XPOSURE Fixed Automatic (Entire Image) AOCKCKHMHNGNENEIEPANHOGOCK AOCKCKHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKEAAHIK AHHPMBIMDKEOFMHMLJAKEGCEIK AKCBPJCJGIIJCMCEHNKLAOBDLK AKCBPJCJGIIJCMCEGMJHKBKNNK AEFBJLBGMHPLNIHMNGHNIAMHGK AEFBJLBGMHPLNPAICDABCGHGGK AAPHBAJJDABJLGILJIGIHPPHDK AAPHBAJJCDFOOPCEHFCEBHJFFK AGKFAMNMEBAKAEJAPFJMOLIIIK AHKFAJMFIHDMKONFFAOAGCPJKK...
Seite 63: Code Selection
Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK CODE SELECTION AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK Linear Symbologies AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL CODE SELECTION Disable All Symbologies Disable All Linear Symbologies APCPCKHMHNGNENEIEPANHOGOCK APCPGKHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFHEHIK AHHPMJAMDKEOFMHMLJAKFBCHIK AKCBPJCJGIIJCMCEHPIFJNCLPK AKCBPJCJGIIJCMCEHKPMGLHBNK AEFBJLBGMHPKNPEHGMLHNABFGK AEFBJLBGMHPKMIHDGICIAJMGGK...
Seite 64 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK CODE SELECTION AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK Linear Symbologies AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Linear Symbologies UPC/EAN/JAN F AMILY EAN/UPC/JAN Disabled EAN/UPC/JAN Enabled APCLCOHMHNGNENEIEPANHOGOCK APCLCOHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFHAGIK AHHPMBIMDKEOFMHMLJALFBCFIK AKCBPJCJGIIJCMCFHPJEAPMJJK AKCBPJCJGIIJCMCFGOKIKAHHPK AEFBJLBGMHPKNJGOAPBLPJDHGK AEFBJLBGMHPKNOBKPKGHFPIGGK...
Seite 65 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK CODE SELECTION AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK Linear Symbologies AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Code 39 Full ASCII - Disabled Code 39 Full ASCII- Enabled APCPCKHMFNGNENEIEPANHOGOCK APCPCKHMFNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFFCHIK AHHPMBIMDKEOFMHMLJAKFDAEIK AKCBPJCJGIIJCMCFGPKINNFDPK AKCBPJCJGIIJCMCFHOJEHCONJK...
Seite 66 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK CODE SELECTION AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK Linear Symbologies AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL NTERLEAVED AMILY Enabled - No Check Digit Disabled Control APCLGOHMHNGNENEIEPANHOGOCK APCLGOHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFBGGIK AHHPMBIMDKEOFMHMLJALFHEFIK AKCBPJCJGIIJCMCFHKONPJJDLK AKCBPJCJGIIJCMCFGLNBFGCNNK AEFBJLBGMHPKMOFKALIECAOEGK AEFBJLBGMHPKMJCOPOPIIGFFGK...
Seite 67 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK CODE SELECTION AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK Linear Symbologies AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL ODABAR AMILY Enabled - No Check Digit Disabled Control APCLGKHMHNGNENEIEPANHOGOCK APCLGKHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFDAEIK AHHPMBIMDKEOFMHMLJAKFFCHIK AKCBPJCJGIIJCMCEHNIKIHHBJK AKCBPJCJGIIJCMCEGMLGCIMPPK AEFBJLBGMHPKMOCNKKOMFGEFGK AEFBJLBGMHPKMJFJFPJAPAPEGK...
Seite 68 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK CODE SELECTION AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK Linear Symbologies AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL 128 F AMILY Code 128 - Disabled Code 128 - Enabled APCPCOHMHNGNENEIEPANHOGOCK APCPCOHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALECEFIK AHHPMBIMDKEOFMHMLJALEEGGIK AKCBPJCJGIIJCMCFHLIJHMGDJK AKCBPJCJGIIJCMCFGKLFNDNNPK...
Seite 69 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK CODE SELECTION AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK Linear Symbologies AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL EAN 128 - Code Length Check EAN 128 - Code Length Check Disabled Enabled APCPGOHMFNGNENEIEPANHOGOCK APCPGOHMFNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFBHEIK...
Seite 70 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK CODE SELECTION AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK Linear Symbologies AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Maximum Code Length APCLBLFOFNGNENEIEPANHOGOCK Read the number in the range AHPNIJAMDKEOFMHMLJALEDAHIK AKCBPJCJGIIJCMCEGJMLKGPPPK 001-255. AEFBJLBGMHPKMKFDFMMJOOBHGK AAPHBAJJCBDNNGHKHKNHKCAJBK AEKFAINHJPFMGGDCLJBACEPKKK DDDLLLLDLDLLLLLDDLLDDLDLDL...
Seite 71: Micro Pdf417
Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK CODE SELECTION AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK 2D Symbologies AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL 2D Symbologies PDF417 Disabled Enabled APCPGOHMHNGNENEIEPANHOGOCK APCPGOHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFDBEIK AHHPMBIMDKEOFMHMLJAKFFDHIK AKCBPJCJGIIJCMCFHMOHKAOJJK AKCBPJCJGIIJCMCFGNNLAPFHPK AEFBJLBGMHPLNKAPNDDGDFPHGK AEFBJLBGMHPLNNHLCGEKJDEGGK AAPHBAJJDHGHKNAINKBIFENDBK AAPHBAJJCECAPEKHDHFEDMLBHK AELFAMOOAMMACJGJHEHMCFFJKK AFLFAJPHMKPGIDCMNBAAKMCIIK...
Seite 72 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK CODE SELECTION AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK 2D Symbologies AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL ATRIX AMILY Disabled Enabled APCPGKHMHNGNENEIEPANHOGOCK APCPGKHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFBHGIK AHHPMBIMDKEOFMHMLJALFHFFIK AKCBPJCJGIIJCMCEHLIANOALLK AKCBPJCJGIIJCMCEGKLMHBLFNK AEFBJLBGMHPLNKHIHCFOEDFGGK AEFBJLBGMHPLNNAMIHCCOFOHGK AAPHBAJIDCBNKCHLKMBHLMHJBK AAPHBAJICBFKPLNEEBFLNEBLHK AFKFAIMFHPFKIFPHMKDIIGAIJK AEKFANNMLJGMCPLCGPEEAPHJLK DLLLLDLDDDDLLLLDDDLDDLDLDL...
Seite 73 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK CODE SELECTION AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK 2D Symbologies AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL OSTAL ODES AMILY All Disabled Australian Post - Enabled APCLGKHMHNGNENEIEPANHOGOCK APCLGKHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALEEDFIK AHHPMBIMDKEOFMHMLJALECBGIK AKCBPJCJGIIJCMCEHPJNKNKBLK AKCBPJCJGIIJCMCEGOKBACBPNK AEFBJLBGMHPKNKDJDLMLDOOEGK AEFBJLBGMHPKNNENMOLHJIFFGK...
Seite 74 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK CODE SELECTION AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK 2D Symbologies AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL AXICODE AMILY Maxicode Mode 0 - Disabled Maxicode Mode 0 Enabled APCPCKFOBNGNENEIEPANHOGOCK APCPCKFOBNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFEGFIK AHHPMBIMDKEOFMHMLJALFCEGIK AKCBPJCJGIIJCMCEGNMLNKJJNK AKCBPJCJGIIJCMCEHMPHHFCHLK...
Seite 75 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK CODE SELECTION AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK 2D Symbologies AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Maxicode Mode 6 - Disabled Maxicode Mode 6 - Enabled APCPCKHIFNGNENEIEPANHOGOCK APCPCKHIFNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFDBHIK AHHPMBIMDKEOFMHMLJALFFDEIK AKCBPJCJGIIJCMCFGOKFOIGFLK AKCBPJCJGIIJCMCFHPJJEHNLNK AEFBJLBGMHPKMOANABFFNPKFGK...
Seite 76: Reading Parameters
Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK READING AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK PARAMETERS AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL READING PARAMETERS RIGGER Trigger Level Trigger Pulse APCOCOHMHNGNENEIEPANHOGOCK APCOCOHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKEAGGIK AHHPMBIMDKEOFMHMLJAKEGEFIK AKCBPJCJGIIJCMCFGILHGJEHJK AKCBPJCJGIIJCMCFHJILMGPJPK AEFBJLBGMHPLNJAKKIEPNIOFGK AEFBJLBGMHPLNOHOFNDDHOFEGK AAPHBAJJCAHEBANDBIMIMMMLBK AAPHBAJJDDDDEJHMPFIEKEKJHK AEKFALNAJKBEGAIEALHCAKNIJK AFKFAOMJFMCCMKMBKOAOIDKJLK...
Seite 77 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK READING AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK PARAMETERS AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL EEPER Tone 1 Tone 2 APDNCKHMHNGNENEIEPANHOGOCK APDNCKHMHNGNENEIEPANHOGOCK AHHPMBIMDKEOFMHMLJALFDDFIK AHHPMBAMDKEOFMHMLJAKEGDHIK AKCBPJCJGIIJCMCEGLNHEOKPJK AKCBPJCJGIIJCMCFHNJMMMFNNK AEFBJLBGMHPLNIDKIIGKFCEEGK AEFBJLBGMHPKMIEOFKPCBONGGK AAPHBAJJDHAGBIKHCMHKLKKHHK AAPHBAJICDEOBNEFHDGLFDFJDK AHKFALKEEGHAIGJCOHOKIKDJIK AEKFAIMHBPEAOLNKDAIKMPMJJK DLDLLLLDDDLLLLLDLDLDDLDLDL DLDLLLLDDDLLLLLDDDLDDLDLDL...
Seite 78: Aiming System
Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK READING AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK PARAMETERS AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL EADS PER YCLE One Read per Cycle Multiple Reads per Cycle APCKGOHMHNGNENEIEPANHOGOCK APCKGOHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFDEFIK AHHPMBIMDKEOFMHMLJAKFFGGIK AKCBPJCJGIIJCMCFGJNDOMLHLK AKCBPJCJGIIJCMCFHIOPEDAJNK AEFBJLBGMHPKMOHPOFEFHMIEGK AEFBJLBGMHPKMJALBADJNKDFGK...
Seite 79 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK READING AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK PARAMETERS AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL User Defined Beeper EFINED EEPER Tone 1 Tone 2 APDNCKFOFNGNENEIEPANHOGOCK APDNCKFOFNGNENEIEPANHOGOCK AHHPMBIMDKEOFMHMLJAKFFGGIK AHHPMBAMDKEOFMHMLJALEAGEIK AKCBPJCJGIIJCMCFHJNMMMPPLK AKCBPJCJGIIJCMCEGPJHEOANPK AEFBJLBGMHPLMNAINJLLMGBGGK AEFBJLBGMHPKNNHMALCDIKIEGK AAPHBAJJDAEBELGEKFDGBNGFDK AAPHBAJICEAJEOIGPKCHPEJLHK...
Seite 80 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK READING AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK PARAMETERS AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL EFINED EEPER URATION Set Duration APDNBLFMFNGNENEIEPANHOGOCK Read a number in the range AHPNIJAMDKEOFMHMLJALEAHEIK AKCBPJCJGIIJCMCFHPLNMNIJNK 01-99, which corresponds to a AEFBJLBGMHPLMPEIDCCACMBGGK AAPHBAJJCHGNGDDJKOOPOOKHDK max 990 ms duration.
Seite 81 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK READING AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK PARAMETERS AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Code Ordering and Selection ODES PER One Code per Scan All Codes per Scan APCKGOHMFNGNENEIEPANHOGOCK APCKGOHMFNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKEGEFIK AHHPMBIMDKEOFMHMLJAKEAGGIK AKCBPJCJGIIJCMCEHKJFDDGFPK...
Seite 82 Set Order APBPBPFOHNGNENEIEPANHOGOCK Select the number of codes AHPNIJAMDKEOFMHMLJAKEEAHIK AKCBPJCJGIIJCMCFGPKMGNENLK in the range 0-9. AEFBJLBGMHPKNJGKFLAALGHHGK AAPHBAJJCFCGFDNNCBIJALKDHK Select Datalogic AGLFALNLKIAEAMIJIJEICMAIIK DLLLLLLDLDDLLLLDLDLDDLDLLL Standard Code Identifier for each above defined code from the table in Appendix See par. 3.6 for details. Autoscan UTOSCAN...
Seite 83 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK READING AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK PARAMETERS AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL UTOSCAN ARDWARE RIGGER Disabled Enabled APCOCKFOHNGNENEIEPANHOGOCK APCOCKFOHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFBFHIK AHHPMBIMDKEOFMHMLJAKFHHEIK AKCBPJCJGIIJCMCEGOJNEKCHNK AKCBPJCJGIIJCMCEHPKBOFJJLK AEFBJLBGMHPLMOHHHCAIHBIEGK AEFBJLBGMHPLMJADIHHENHDFGK AAPHBAJIDCAJIFGOAAKEOHBFDK AAPHBAJICBEONMMBONOIIPHHFK AHKFAPJLGOGCEACIDCMMAEDLLK AGKFAKICKIFEOKGNJHLAINEKJK DLDLLLLDDDLLLLLDLDDDDLDLDL DLDLLLLDDDLLLLLDDDDDDLDLDL...
Seite 84 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK READING AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK PARAMETERS AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL TAND UTOSCAN Disable Normal APCOCKFMHNGNENEIEPANHOGOCK APCOCKFMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFCFGIK AHHPMBIMDKEOFMHMLJALFEHFIK AKCBPJCJGIIJCMCFHKPDLBGLLK AKCBPJCJGIIJCMCFGLMPBONFNK AEFBJLBGMHPLMNDLMPIEMIOGGK AEFBJLBGMHPLMKEPDKPIGOFHGK AAPHBAJJCGAFBFKIIBFBLOBDBK AAPHBAJJDFECEMAHGMBNNGHBHK AHKFANLPPPIEGLFMGPOAOAJKKK AGKFAIKGDJLCMBBJMKJMGJOLIK DLDLLLLDDDDLLLLDDLLDDLDLLL DLDLLLLDDDDLLLLDLLLDDLDLLL Pattern...
Seite 85 Enter Cradle Configuration Exit and Save Cradle Configuration AOAIGMHOFNGNENEIEPANHOGOCK AOAICMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFAGHIK AHPNIBAMDKEOFMHMLJALFGAHIK AKCBPJCJGIIJCMCEGMNGOBKBJK AKCBPJCJGIIJCMCEGJKPBHPLLK AEFBJLBGMHPLMPEEEJKEBPIHGK AEFBJLBGMHPLNIHAENDLMGFEGK CAPTURE IMAGE AAPHBAJJCHEGKKELMEFNPDJFFK AAPHBAJJDDGHFLHEBHKCGLFFHK AHLFBINLDNIMKHJDEHLCADAJLK AELFBJOABCEOENLELBPIIGNLLK DDDDLDDLLDDLLLLDDDDDDLDLDL DLLDLDDLDLLLLLLDDDLDDLDLLL CAPTURE IMAGE In order to capture an image, you should read one of these codes (for further details see par.
Seite 86 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL ADVANCED IMAGE CAPTURE Image Preset 1 Basic Configuration – MAGE ORMAT PRESET Bitmap Format JPEG Format APCNCOHMHNGNENEIEPANHOGOCK APCNCOHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKEFAEIK...
Seite 87 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL JPEG Q – UALITY ACTOR PRESET JPEG Quality Factor APCNBPFOHNGNENEIEPANHOGOCK Set the JPEG compression level AHPNIJAMDKEOFMHMLJALEGGHIK AKCBPJCJGIIJCMCFHMJMMBLFJK in the range 000-100.
Seite 88: Read A Number In The Range
Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL – RIGHTNESS PRESET Increase APCNCOHKHNGNENEIEPANHOGOCK Read a number in the range AFPFKJAMDKEOFMHMLJAKFDCELK ADPCPJCJGIIJCMCFHIPPHGLNOK 0-100 AIFBJLBGMHPLMJBELBBMIHELKK AAPHBAJIDEFLCNGDNKIBEPHFDK AHKFAKONFOAIGBMDPPNIMEPLJK DLLLLLLDLLDLLLLDDDDDDLDLLL...
Seite 89 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL – PRESET APCNCOHOBNGNENEIEPANHOGOCK APCNCOHOBNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFGCFIK AHHPMBIMDKEOFMHMLJAKFAAGIK AKCBPJCJGIIJCMCFHIPDJNLFNK AKCBPJCJGIIJCMCFGJMPDCALLK AEFBJLBGMHPKNLHCNHDHCMEEGK AEFBJLBGMHPKNMAGCCELIKPFGK AAPHBAJJCFEBCNMNLMCPONIJFK AAPHBAJJDGAGHEGCFBGDIFOLDK AGKFAJOBCIMKOFEMNMBGEADKLK AHKFAMPIOOPMEPAJHJGKMJELJK DLDLLLLDLLDLLLLDDDDDDLDLDL DLDLLLLDLLDLLLLDLDDDDLDLDL APCNCOHOBNGNENEIEPANHOGOCK APCNCOHOBNGNENEIEPANHOGOCK...
Seite 90 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL – OLOR EPTH PRESET 2 Grey Levels* 16 Grey Levels* APCNCOHODNGNENEIEPANHOGOCK APCNCOHODNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKEDCFIK AHHPMBIMDKEOFMHMLJAKEFAGIK AKCBPJCJGIIJCMCEGLLFECGHJK AKCBPJCJGIIJCMCEHKIJONNJPK AEFBJLBGMHPKNJEKPNMJGHNGGK AEFBJLBGMHPKNODOAILFMBGHGK...
Seite 91 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Image Preset 2 Basic Configuration – MAGE ORMAT PRESET Bitmap Format JPEG Format APCNCKHMHNGNENEIEPANHOGOCK APCNCKHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALEHGGIK AHHPMBIMDKEOFMHMLJALEBEFIK AKCBPJCJGIIJCMCFHJIFLHFBLK...
Seite 92: Advanced Configuration
Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Advanced Configuration – INDOW IMENSIONS PRESET Origin along X Axis APCNBLHMDNGNENEIEPANHOGOCK Read a number in the range AHPNIJAMDKEOFMHMLJAKFCHGIK AKCBPJCJGIIJCMCFHLIPJCENLK 0-630...
Seite 93 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL – RIGHTNESS PRESET Increase APCNCKHKHNGNENEIEPANHOGOCK Read a number in the range AFPFKJAMDKEOFMHMLJAKFCDGLK ADHCPJCJGIIJCMCEHILNFHGNKK 0-100 AIFBJLBGMHPKNOHJOGBHOHCLKK AAPHBAJJDFDOKJNCLOLFMBANBK AEKFAPMIPNNGAGHKOJJACOOJLK DLLLLLLDLLLLLLLDLLLDDLDLLL...
Seite 94 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL – PRESET APCNCKHOBNGNENEIEPANHOGOCK APCNCKHOBNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFEEHIK AHHPMBIMDKEOFMHMLJALFCGEIK AKCBPJCJGIIJCMCEHPJEODFHPK AKCBPJCJGIIJCMCEGOKIEMOJJK AEFBJLBGMHPKNLAFHGFPFKOFGK AEFBJLBGMHPKNMHBIDCDPMFEGK AAPHBAJICADLCCLOMKCAAFCDFK AAPHBAJIDDHMHLBBCHGMGNEBDK AHLFANMKFLFAEJNCGCFCODGLIK AGLFAINDJNGGODJHMHCOGKBKKK DLLLLLLDDLLLLLLDLLDDDLDLLL DLLLLLLDDLLLLLLDDLDDDLDLLL APCNCKHOBNGNENEIEPANHOGOCK APCNCKHOBNGNENEIEPANHOGOCK...
Seite 95 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL – OLOR EPTH PRESET 2 Grey Levels* 16 Grey Levels* APCNCKHODNGNENEIEPANHOGOCK APCNCKHODNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALEBEHIK AHHPMBIMDKEOFMHMLJALEHGEIK AKCBPJCJGIIJCMCFGMNCDMIFLK AKCBPJCJGIIJCMCFHNOOJDDLNK AEFBJLBGMHPKNJDNFMKBBBHHGK AEFBJLBGMHPKNOEJKJNNLHMGGK...
Seite 96 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Image Preset 3 Basic Configuration – MAGE ORMAT PRESET Bitmap Format JPEG Format APCJGOHMHNGNENEIEPANHOGOCK APCJGOHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFGCHIK AHHPMBIMDKEOFMHMLJAKFAAEIK AKCBPJCJGIIJCMCEHPIGEMEDLK...
Seite 97 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Advanced Configuration – INDOW IMENSIONS PRESET Origin along X Axis APCJFPHMDNGNENEIEPANHOGOCK Read a number in the range AHPNIJAMDKEOFMHMLJALEDDHIK AKCBPJCJGIIJCMCEHNIMGJFPLK 0-630...
Seite 98 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL – RIGHTNESS PRESET Increase APCJGOHKHNGNENEIEPANHOGOCK Read a number in the range AFPFKJAMDKEOFMHMLJAKFACELK ALPCPJCJGIIJCMCEHNNMGGBPEK 0-100 AIFBJLBGMHPKMKFILFKKCKIIKK AAPHBAJIDACGDMGODKDKODCLBK AGLFAKOKDCBAOMIKGIMGKDBJKK DDLLLLLDDLDLLLLDLLLDDLDLLL...
Seite 99 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL – PRESET APCJGOHOBNGNENEIEPANHOGOCK APCJGOHOBNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKEFAGIK AHHPMBIMDKEOFMHMLJAKEDCFIK AKCBPJCJGIIJCMCFHJJHBIEFPK AKCBPJCJGIIJCMCFGIKLLHPLJK AEFBJLBGMHPLMMAHJKDNIICFGK AEFBJLBGMHPLMLHDGPEBCOJEGK AAPHBAJICAHPNPBHCAKGPDDDBK AAPHBAJIDDDIIGLIMNOKJLFBHK AFLFALOIOHEGGNJLFMOEMLMJIK AELFAOPBCBHAMHNOPJJIECLIKK DLLLLLLDDLDLLLLDLLDDDLDLDL DLLLLLLDDLDLLLLDDLDDDLDLDL APCJGOHOBNGNENEIEPANHOGOCK APCJGOHOBNGNENEIEPANHOGOCK...
Seite 100 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL – OLOR EPTH PRESET 2 Grey Levels* 16 Grey Levels* APCJGOHODNGNENEIEPANHOGOCK APCJGOHODNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJAKFAAGIK AHHPMBIMDKEOFMHMLJAKFGCFIK AKCBPJCJGIIJCMCEGKNBMHJHLK AKCBPJCJGIIJCMCEHLONGICJNK AEFBJLBGMHPLMODPLAMDMDLHGK AEFBJLBGMHPLMJELEFLPGFAGGK...
Seite 101 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Image Preset 4 Basic Configuration – MAGE ORMAT PRESET Bitmap Format JPEG Format APCJGKHMHNGNENEIEPANHOGOCK APCJGKHMHNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFEEFIK AHHPMBIMDKEOFMHMLJALFCGGIK AKCBPJCJGIIJCMCFHIOBDCKBJK...
Seite 102 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL Advanced Configuration – INDOW IMENSIONS PRESET Origin along X Axis APCJFLHMDNGNENEIEPANHOGOCK Read a number in the range AHPNIJAMDKEOFMHMLJAKEBFFIK AKCBPJCJGIIJCMCFHKOLBHLNJK 0-630...
Seite 103 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL – RIGHTNESS PRESET Increase APCJGKHKHNGNENEIEPANHOGOCK Read a number in the range AFPFKJAMDKEOFMHMLJAKFBDGLK ALHCPJCJGIIJCMCFHNJOEHMPAK 0-100 AIFBJLBGMHPLNNDFOCKBEKOIKK AAPHBAJJDBEDLINPFOAOGNFDDK AFLFAPMPJBMOILDDHOIOEJALIK DDLLLLLDDLLLLLLDDDDDDLDLLL...
Seite 104 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL – PRESET APCJGKHOBNGNENEIEPANHOGOCK APCJGKHOBNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALEHGEIK AHHPMBIMDKEOFMHMLJALEBEHIK AKCBPJCJGIIJCMCEHOPAGGKHNK AKCBPJCJGIIJCMCEGPMMMJBJLK AEFBJLBGMHPLMMHADLFFPOIEGK AEFBJLBGMHPLMLAEMOCJFIDFGK AAPHBAJJCFAFNAGEFGKJBLJJBK AAPHBAJJDGECIJMLLLOFHDPLHK AEKFAPMDJENMMBAFOCKAGIJILK AFKFAKNKFCOKGLEAEHNMOBOJJK DLDLLLLDLLLLLLLDDDDDDLDLLL DLDLLLLDLLLLLLLDLDDDDLDLLL APCJGKHOBNGNENEIEPANHOGOCK APCJGKHOBNGNENEIEPANHOGOCK...
Seite 105 Enter Gun Configuration Exit and Save Gun Configuration AMHKGMHOFNGNENEIEPANHOGOCK AMHKCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFCAFIK ADVANCED AHPNIBAMDKEOFMHMLJALFEGFIK AKCBPJCJGIIJCMCEGOODCCEDJK AKCBPJCJGIIJCMCEGLJKNEBJLK AEFBJLBGMHPLNPGLABJHFIAEGK AEFBJLBGMHPLMIFPAFAIIBNHGK IMAGE CAPTURE AAPHBAJICCBGBIAFNLNLLAINDK AAPHBAJIDGDHOJDKAICECIENBK AFLFBPPCOIHKILNFFOCKOLJILK AGLFBOMJMHLIGBPCKIGAGOEKLK DLDDLDDLDDLLLLLDDDLDDLDLLL DDLDLDDLLLDLLLLDDDDDDLDLDL – OLOR EPTH PRESET 2 Grey Levels* 16 Grey Levels* APCJGKHODNGNENEIEPANHOGOCK APCJGKHODNGNENEIEPANHOGOCK AHHPMJAMDKEOFMHMLJALFCGEIK AHHPMBIMDKEOFMHMLJALFEEHIK AKCBPJCJGIIJCMCFGNLGLJHFJK AKCBPJCJGIIJCMCFHMIKBGMLPK AEFBJLBGMHPLMOEIBBKLLFBGGK AEFBJLBGMHPLMJDMOENHBDKHGK...
Seite 106: Advanced Data Format
GRYPHON™ D432/D432E ADVANCED DATA FORMAT Advanced data format has been designed to offer you complete flexibility in changing the format of barcode data before transmitting it to the host system. Up to 5 advanced code management formats can be defined by completing the four given procedures following the desired order: −...
Seite 107: Configuration Using Code Symbols
CONFIGURATION USING CODE SYMBOLS 5.3.1 Format Definition STEP 1 FORMAT DEFINITION Define Format 1 Define Format 2 AOCLGKHMFNGNENEIEPANHOGOCK AOCLGKHMFNGNENEIEPANHOGOCK AHHPMBIMDKEOFMHMLJAKEAFGIK AHHPMBAMDKEOFMHMLJALFFFEIK AKCBPJCJGIIJCMCFGLIBLHNBJK AKCBPJCJGIIJCMCEHNMKDFCDNK AEFBJLBGMHPLNODFHCIGIAPGGK AEFBJLBGMHPKMOEBKABOMMGEGK AAPHBAJJCEANJLPCFANLOLDLDK AAPHBAJIDAEFJOBAAPMKACMFHK AGLFAONBHJFAIFILILDKIIAKJK AFLFANLCCAGAOIMDFMFKMNPKIK DDLLLDLDLLLLLLLDDDDDDLDLDL DDLLLDLDLLLLLLLDLDDDDLDLDL Define Format 3 AOCLGKHMFNGNENEIEPANHOGOCK AHHPEJIMDKEOFMHMLJAKFBCFIK AKCBPJCJGIIJCMCEGIILFOFHLK AEFBJLBGMHPLNKHIDJEMFICFGK AAPHBAJIDAHLABGEHHFOHDBFHK AGKFAMMMBIDCEBNPMOPCMPJIJK DDDLLDLDLLLLLLLDLDLDDLDLLL Define Format 4 Define Format 5...
Seite 108 GRYPHON™ D432/D432E STEP 2 FORMAT DEFINITION Method 1 - Extracting Information from Barcode Method 1 allows extracting one or more fields by position or by characters from the decoded barcode. These fields are sent to the host computer as data of the output message, while the characters not included in the formatting procedure will be deleted and not inserted in the output message.
Seite 109 CONFIGURATION USING CODE SYMBOLS Example Method 1 Extracting Information from Barcode Decoded code: <DATALOGICproduct> Formatting procedure: Add new string + Extract field by position + Add new string + Extract field by character + Add new string Add New String String character(s) End String...
Seite 110 GRYPHON™ D432/D432E FIELD EXTRACTION BY CHARACTER Define Field Starting Character(s) Field Starting Character(s) AOCKHMFKFNGNENEIEPANHOGOCK Read the Hex value from the Hex/Numeric table AHJLJFGOPKEOFMHMLJALEDGHKK AOJDPBCJGIIJCMCEGNOJDNBPEK identifying the starting character(s) of the field to be AIFBJLBGMHPLNIDFFINJEEAJOK AAPHBAJICCGOBPPLKMDJODJLBK extracted. Valid values are in the range 00-7F. AHLFALLKHHHKCDLGLEPOABEKIK DLDLDLLDLDDLLLLDDDLDDLDLLL Define Field Ending Character(s)
Seite 111 CONFIGURATION USING CODE SYMBOLS FIELD EXTRACTION BY POSITION Define Field Starting Position Field Starting Position AOBLHMFKFNGNENEIEPANHOGOCK Read a number corresponding to the field starting AHJLJDHODKEOFMHMLJAKFAAEKK AOJDPBCJGIIJCMCFHLLMNMLLCK position. AIFBJLBGMHPKNODINAHHKIIIOK AAPHBAJJCEENANJPDPICKJMNDK AELFAOIHAAIMAJHDEOOCAELIJK DDLLDLLDLDLLLLLDLLLDDLDLDL Define Field Ending Position Field Ending Position Last Position AMHMGIFKDNGNENEIEPANHOGOCK AODIHMFKFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKFAEHIK...
Seite 112 GRYPHON™ D432/D432E ADD NEW STRING Define New String String Character(s) Read the Hex value from the Hex/Numeric table ANGOGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKFCDGIK identifying the character(s). Valid values are in the range AKCBPJCJGIIJCMCEHJLONAJLLK AEFBJLBGMHPLMJGBFHKLALDGGK AAPHBAJJDECHGDKMOEDDMEBJBK 00-7F. AHLEBNKAODJIMPLGJNNKMCKJIK DDDLLLDDDLDLLLLDLDDDDLDLDL End String End String ANGOGIFKDNGNENEIEPANHOGOCK Read the code to end the string defined in step a.
Seite 113 CONFIGURATION USING CODE SYMBOLS Method 2 - Manipulating the Barcode Data Method 2 allows modifying the barcode data by means of one of the following procedures: − String insertion; − String deletion; − String substitution; − Field deletion. Once the data has been modified, it is sent to the host computer as data of the output message.
Seite 114 GRYPHON™ D432/D432E STRING INSERTION To complete this procedure proceed as follows: Define Format 1, 2, 3, 4, or 5 Add String? Add new String Insert String Add String? Add new String End Format Definition Example Decoded code: <DATALOGICproduct> Formatting procedure: Add new string + Insert String Add New String String character(s)
Seite 115 CONFIGURATION USING CODE SYMBOLS String Insertion Procedure Insert String Insert String APCJHMFKFNGNENEIEPANHOGOCK Read the Hex value from the Hex/Numeric table AHJLJFGOPKEOFMHMLJAKFBEFKK AOJDPBCJGIIJCMCFGNNKPHPHEK identifying the characters to be inserted. Valid values are AIFBJLBGMHPKMNFKECEKLIIKOK AAPHBAJJCHGNHBHGFNLIIFKNBK in the range 00-7F. AGLFAPNMBCJCECKOAHGMMHGJIK DLLLDLLDLDDLLLLDDLLDDLDLLL Define String Position String Position ANGKGIHOFNGNENEIEPANHOGOCK Read a number corresponding to the string position within...
Seite 116 GRYPHON™ D432/D432E STRING DELETION To complete this procedure proceed as follows: Define Format 1, 2, 3, 4, or 5 Add String? Add new String Delete String Delete Add String? Add new String End Format Definition Example Decoded code: <DATALOGICproduct> Formatting procedure: Delete First String + Delete Second String + Add New String.
Seite 117 CONFIGURATION USING CODE SYMBOLS String Deletion Procedure Delete String Delete AMHLGLEKHNGNENEIEPANHOGOCK Read the Hex value from the Hex/Numeric table AHLNEBIMDKEOFMHMLJAKEDDEJK AKCBPJCJGIIJCMCEHKMCKLPJPK identifying the string character(s) to be deleted. Valid AEFBJLBGMHPLMMEILNAAMKFHGK AAPHBAJIDFHJHFNFIEAPKCANBK values are in the range 00-7F. AFKFAIMEHLPACFEFIKDEGEPKLK DLDLLLLDDLLLLLLDDDLDDLDLDL (optional) Select Other Strings to be Deleted Loop ANGKBPDMFNGNENEIEPANHOGOCK...
Seite 118 GRYPHON™ D432/D432E STRING SUBSTITUTION To complete this procedure proceed as follows: Define Format 1, 2, 3, 4, or 5 Add String? Add new String Substitute String Add String? Add new String End Format Definition Example Decoded code: <DATALOGICproduct> Formatting procedure: Add new string + String substitution + Add new string. Add New String String Substitution Procedure String...
Seite 119 CONFIGURATION USING CODE SYMBOLS String Substitution Procedure Define String to be Substituted Substitute String APAKHMFKFNGNENEIEPANHOGOCK Read the Hex value from the Hex/Numeric table AHJLJFGOPKEOFMHMLJAKEDHGKK AOJDPBCJGIIJCMCEGOLKBIGLCK identifying the characters of the string to be substituted. AIFBJLBGMHPLNKFOPDLBPKNKOK AAPHBAJICGBMGPOCHHEBNAMFHK Valid values are in the range 00-7F. AHLFAKKFLHGOGEAFKMLMANFIKK DDLLDLLDLLDLLLLDLDLDDLDLLL Define Substituting String...
Seite 120 GRYPHON™ D432/D432E FIELD DELETION To complete this procedure proceed as follows: Define Format 1, 2, 3, 4, or 5 Add String? Add new String Delete Field Delete Add String? Add new String End Format Definition Example Decoded code: <DATALOGICproduct> Formatting procedure: Delete First Field + Delete Second Field + Add New String. Field Deletion Procedure Delete Field Starting Character...
Seite 121 CONFIGURATION USING CODE SYMBOLS Field Deletion Procedure Delete Field Delete AMHLGLEKHNGNENEIEPANHOGOCK Read the code to enable the command deleting the field. AHHPEBIMDKEOFMHMLJALEAHEIK AKCBPJCJGIIJCMCEHILFPJABJK AEFBJLBGMHPKNIFAMGIDOBPFGK AAPHBAJIDBDPFCPCBLBBIHELFK AGLFAMKAJEOIKHFKIGKEMGNILK DDLLLLLDLLLLLLLDDLDDDLDLLL Define Field Starting Character Field Starting Character AOCKHMFKFNGNENEIEPANHOGOCK Read the Hex value from the Hex/Numeric table AHJLJFGOPKEOFMHMLJALEDGHKK AOJDPBCJGIIJCMCEGNOJDNBPEK identifying the starting characters.
Seite 122 GRYPHON™ D432/D432E EITHER Add String AMHNGIFKDNGNENEIEPANHOGOCK To add a new string of characters read the code and AHPNIBAMDKEOFMHMLJALFCGEIK AKCBPJCJGIIJCMCEHKODEMDDPK follow the procedure described on page 111; AEFBJLBGMHPKMOBCLFFFACLGGK AAPHBAJIDBGAJHMKPCBLOPFBFK AHKEBMPDMCJKIFABFMGICEEIJK DLDLLLDDDLLLLLLDLLLDDLDLDL End Format Definition End Format Definition AOHPGIFKDNGNENEIEPANHOGOCK Read the code to end the format definition. AHPNIBAMDKEOFMHMLJALFDHEIK AKCBPJCJGIIJCMCEGPJNABHNLK AEFBJLBGMHPKMIGKBFNOFMEFGK...
Seite 123 CONFIGURATION USING CODE SYMBOLS ADD NEW STRING Define New String String Character ANGOGIFKDNGNENEIEPANHOGOCK Read the Hex value from the Hex/Numeric table AHPNIBAMDKEOFMHMLJAKFCDGIK AKCBPJCJGIIJCMCEHJLONAJLLK identifying the starting characters. Valid values are in the AEFBJLBGMHPLMJGBFHKLALDGGK AAPHBAJJDECHGDKMOEDDMEBJBK range 00-7F. AHLEBNKAODJIMPLGJNNKMCKJIK DDDLLLDDDLDLLLLDLDDDDLDLDL End String and Define Procedure End String Plus Procedure ANGKGMHOFNGNENEIEPANHOGOCK Read the code to end the string selection and continue...
Seite 124: Match Conditions
GRYPHON™ D432/D432E 5.3.2 Match Conditions By setting one or more of the following conditions it is possible to select the codes to be formatted. Follow the given steps to define the desired condition: MATCH WITH PREDEFINED SUBSTRING Define Matching Substring Match with Substring AOCLFLFOHNGNENEIEPANHOGOCK Read the above code and:...
Seite 125 1-5 corresponding to the AEFBJLBGMHPLMLHPOCDCLFDGGK AAPHBAJJCECGCJGBDFGBNLINBK desired format number; AHKFAILPHFEMACFDFLIEKIPKLK DDDLLDLDDLDLLLLDDDLDDLDLLL set the number of the matching code symbologies in the range 0-4; select the Datalogic Standard Code Identifier from the Code Identifier Table in Appendix...
Seite 126: Format Enable/Disable
GRYPHON™ D432/D432E 5.3.3 Format Enable/Disable Format 1 Format 2 AOCLGKHMHNGNENEIEPANHOGOCK AOCLGKHMHNGNENEIEPANHOGOCK AHHPMBIMDKEOFMHMLJAKFFFGIK AHHPMBAMDKEOFMHMLJALEAFEIK AKCBPJCJGIIJCMCEHIMHGIADNK AKCBPJCJGIIJCMCFGOIMOKPBJK AEFBJLBGMHPLNMANFIHIMLGEGK AEFBJLBGMHPKMMHJIKOAIHPGGK AAPHBAJJDEENFCPPLHPEIPINFK AAPHBAJICAAFFHBNOIOFGGHDBK AHLFAOPLBBOIOHDICPOOENHIJK AELFANJIEINIIKHAPIIOAIIIIK DLLLLDLDDDLLLLLDLDLDDLDLDL DLLLLDLDDDLLLLLDDDLDDLDLDL 0 = disabled 0 = disabled 1 = enabled 1 = enabled Format 3 Format 4 AOCLGKHMHNGNENEIEPANHOGOCK AOCLGKHMHNGNENEIEPANHOGOCK AHHPEJIMDKEOFMHMLJAKEECFIK AHHPEJAMDKEOFMHMLJALFBCHIK...
Seite 127: Mismatch Result
CONFIGURATION USING CODE SYMBOLS 5.3.4 Mismatch Result The result of each format may be set in case the match conditions previously selected are not satisfied. Once the desired formats have been enabled and a code has been read, the results corresponding to each format will be concatenated together and transmitted in the output message.
Seite 128: References
GRYPHON™ D432/D432E REFERENCES RS232 – USB COM 6.1.1 ACK/NACK Protocol The transmission protocol takes place between reader and Host. Once the reader has read a code, it emits a good read beep and passes its data to the Host. When ACK/NACK is disabled, there is no control from reader to Host transmission. When ACK/NACK is enabled, the Host sends an ACK character (06 HEX) in the case of good reception or the NACK character (15 HEX) requesting re-transmission, in the case of bad reception.
Seite 129: Usb Keyboard
REFERENCES USB KEYBOARD 6.2.1 Keyboard Speed This parameter manages the transmission speed of characters to the Host. A fast Keyboard Speed allows rapid transmission of a great amount of characters (for example 2D codes), but it might not be compatible with slower systems. CODE SELECTION 6.3.1 Issue Identical Codes...
Seite 130: Configuration Editing Commands
GRYPHON™ D432/D432E CONFIGURATION EDITING COMMANDS The following commands carry out their specific function and do not require reading the Enter or Exit and Save Configuration codes. Command Description AMHKGPAOFNGNENEIEPANHOGOCK AHHPMBAMDKEOFMHMLJALECHGIK Restore Gryphon™ D432/D432E reader default AKCBPJCJGIIJCMCFGPLCMMMNLK AEFBJLBGMHPKMOGNKKNDPDMGGK configuration: AAPHBAJIDGHPOJKEFPNCEACBHK AFKFBKNGLGMOMELLGOPCMJFKIK DDDDLDLLLDDLLLLDDDLDDLDLDL AMHKGPBOFNGNENEIEPANHOGOCK AHHPMBIMDKEOFMHMLJAKECBEIK...
Seite 131: Test Code Symbols
TEST CODE SYMBOLS TEST CODE SYMBOLS Use these 1D and 2D test symbols to check that the reader is imaging and decoding properly, according to your configuration. UPC-A 52637 48509 EAN-13 1 234567 000992 Code 39 (Standard) Code 128...
Seite 132 GRYPHON™ D432/D432E PDF417 DataMatrix (Normal) DataMatrix (Inverse)
Seite 133: Maintenance
MAINTENANCE MAINTENANCE You do not need to perform regular preventative maintenance on the Gryphon™ D432/D432E reader. Do not try to open the case, because you might damage the interior electronic components and such action voids the warranty. You can keep your reader in good operating condition by: •...
Seite 134: Technical Features
GRYPHON™ D432/D432E TECHNICAL FEATURES GRYPHON™ D432/D432E Common Features Electrical Features Operating Voltage 4.75 to 5.25 V Power Consumption @ 5V (Stand-by) 120 mA @ 5V (Typical) 245 mA @ 4.75V (Peak current) 330 mA Communications Features Standard Interfaces RS232, Keyboard emulation AT IBM, USB COM emulation, USB Keyboard emulation Proprietary Interfaces USB Bulk, USB Generic HID...
Seite 135 TECHNICAL FEATURES GRYPHON™ D432 Optical Features Focus distance 115 mm Field of view 21.8° (H) x 16.7° (V) Horizontal field of view at 0.4d + 12 distance (d) in mm Vertical field of view at 0.3d + 9 distance (d) in mm Max Resolution Linear codes - mm (mils) DataMatrix –...
Seite 136 GRYPHON™ D432/D432E GRYPHON™ D432E Optical Features Focus distance 65 mm Field of view 20° (H) x 15° (V) Horizontal field of view at 0.32d + 8.67 distance (d) in mm Vertical field of view at 0.24d + 6.50 distance (d) in mm Max Resolution Linear codes - mm (mils) DataMatrix –...
Seite 137: Indicators
TECHNICAL FEATURES INDICATORS 9.1.1 Gryphon™ D432/D432E LED Indicators The Gryphon™ D432/D432E has one green LED indicator signaling the following reader functions: STATUS BEHAVIOR Power ON The LED lights up for 2 seconds to signal the power supply is present. Power ON with USB (without The LED blinks until the Host accepts the device.
Seite 138 GRYPHON™ D432/D432E HOST CONFIGURATION STRINGS In this section we provide a description of how to modify the device configuration using serial strings sent from the Host. This method requires the RS232, USB-Com, USB Bulk or USB Generic HID interface. The device configuration can be changed by receiving commands from the Host through the current interface.
Seite 139 HOST CONFIGURATION STRINGS SERIAL CONFIGURATION STRINGS ENTER/EXIT CONFIGURATION COMMANDS DESCRIPTION STRING Enter Configuration Exit and Save Configuration Restore Default $+$* Transmit Software Release $+$! Transmit Device Configuration in ASCII $?$& These commands do not require $- INTERFACE SELECTION DESCRIPTION STRING RS232 Standard CPA0...
Seite 140 GRYPHON™ D432/D432E RS232 DESCRIPTION STRING FIFO disabled DDC0 enabled DDC1 RX Timeout DEB00 - DEB99 Intercharacter Delay DEA00 - DEA99 Intercode Delay DEC00 - DEC99 DESCRIPTION STRING USB-COM Handshake none UDA0 RTS/CTS UDA2 XON/XOFF UDA1 ACK/NACK Protocol disabled UDB0 enabled UDB1 FIFO disabled...
Seite 141 HOST CONFIGURATION STRINGS DATA FORMAT DESCRIPTION STRING Data Format Restore Default SYMBOLOGY INDEPENDENT PARAMETERS Code Identifier disabled EAA0 AIM standard Code ID EAA2 Code Length disabled ECA0 enabled ECA1 Set Headers no header EDA00 one character EDA01 two characters EDA02 three characters EDA03 xxxx...
Seite 142: Code Selection
GRYPHON™ D432/D432E CODE SELECTION DESCRIPTION STRING Disable All Symbologies AZA0 Disable All Linear Symbologies AXA0 Disable All 2D Symbologies AYA0 Issue Identical Codes disabled AWB0 enabled AWB1 LINEAR SYMBOLOGIES UPC/EAN/JAN disabled AEA0 enabled AEA1 Add-on disabled AEB0 enabled AEB1 UPCE extension enabled AEC0 disabled...
Seite 143 HOST CONFIGURATION STRINGS CODE SELECTION DESCRIPTION STRING LINEAR SYMBOLOGIES Code 128 disabled AAA0 enabled AAA1 Code Len Check disabled AAB0 enabled AAB1 Minimum Code Length Maximum Code Length EAN 128 disabled AOA0 enabled AOA1 Code Len Check disabled AOB0 enabled AOB1 Minimum Code Length Maximum Code Length...
Seite 144 GRYPHON™ D432/D432E CODE SELECTION DESCRIPTION STRING 2D SYMBOLOGIES PDF417 disabled AGA0 enabled AGA1 Macro PDF417 unbuffered mode AVB0 buffered mode AVB1 Micro PDF417 disabled AGB0 enabled AGB1 DataMatrix disabled AHA0 enabled AHA1 Minimum Code Length Maximum Code Length Rectangular Style disabled AHE0 enabled AHE1...
Seite 145 HOST CONFIGURATION STRINGS READING PARAMETERS DESCRIPTION STRING Trigger Mode trigger level BAA0 trigger pulse BAA1 Trigger Type normal trigger BAB0 software trigger BAB1 Flash On Duration Flash Off Duration Beeper Tone tone 1 GBA1 tone 2 GBA2 tone 3 GBA3 tone 4 GBA4 Beeper Volume...
Seite 146 GRYPHON™ D432/D432E READING PARAMETERS DESCRIPTION STRING AUTOSCAN Autoscan Mode disabled BBA0 enabled in normal mode BBA1 enabled in pattern mode BBA2 Autoscan Aiming System disabled BBB0 enabled BBB1 Autoscan Hardware Trigger disabled BBC0 enabled BBC1 Autoscan Illumination System disabled BBD0 enabled BBD1 Safety Time...
Seite 147 HOST CONFIGURATION STRINGS ADVANCED IMAGE CAPTURE DESCRIPTION STRING IMAGE PRESET 1 Advanced Configuration Window Dimensions origin along X axis origin along Y axis width height Brightness increase IAO0IAF decrease IAO1IAF1i Contrast increase IAP0IAE decrease IAP1IAE Zoom IAH0 IAH1 IAH2 IAH3 100% IAH4 120%...
Seite 148 GRYPHON™ D432/D432E ADVANCED IMAGE CAPTURE DESCRIPTION STRING IMAGE PRESET 2 Basic Configuration Image Format Bitmap format IBA0 JPEG format IBA1 TIFF format IBA2 Resolution full resolution (640x480) IBB0 quarter resolution (320x240) IBB1 JPEG Quality Factor Advanced Configuration Window Dimensions origin along X axis origin along Y axis width height...
Seite 149 HOST CONFIGURATION STRINGS ADVANCED IMAGE CAPTURE DESCRIPTION STRING IMAGE PRESET 3 Basic Configuration Image Format Bitmap format ICA0 JPEG format ICA1 TIFF format ICA2 Resolution full resolution (640x480) ICB0 quarter resolution (320x240) ICB1 JPEG Quality Factor Advanced Configuration Window Dimensions origin along X axis origin along Y axis width...
Seite 150 GRYPHON™ D432/D432E ADVANCED IMAGE CAPTURE DESCRIPTION STRING IMAGE PRESET 4 Basic Configuration Image Format Bitmap format IDA0 JPEG format IDA1 TIFF format IDA2 Resolution full resolution (640x480) IDB0 quarter resolution (320x240) IDB1 JPEG Quality Factor Advanced Configuration Window Dimensions origin along X axis origin along Y axis width height...
Seite 151: Function Description
PROGRAMMING FOR EXPERT USERS PROGRAMMING FOR EXPERT USERS This document is addressed to expert users who are familiar with software programming languages and want to define a personalized code formatting. The provided programming language allows creating either simple or complex formatting expressions by means of the basic functions connected together through the following operators: (, ), -, +.
Seite 152 GRYPHON™ D432/D432E CONVENTIONS DESCRIPTION Concatenates two strings or fields. Deletes a substring or a field from the original string. Returns the string which has been decoded by the library. #F<n> Returns the result of a format which has been previously defined.
Seite 153 PROGRAMMING FOR EXPERT USERS SelectString (SSTR) This function has the following syntax: SSTR<source_string, pos_start, pos_end> string It extracts a substring whose characters are between "pos_start" and "pos_end" from the "source_string". If "pos_end" is longer than the "source_string" length, no error will be generated since the exceeding characters are ignored.
Seite 154 GRYPHON™ D432/D432E StringDiscard This function has the following syntax: string1 - string2 string This function discards all the strings having the same value as "string2" which can be found in "string1". If no "string2" is found within "string1", the result returns "string1". InsertString (ISTR) This function has the following syntax: ISTR<source_string, string1, position>...
Seite 155: Using Format Output In Format Definition
PROGRAMMING FOR EXPERT USERS Examples The string transmitted is 12345abcdef3790 and corresponds to the #DS function, as defined in the programming language. expression SSTR<#DS,1,5> + SSTR<#DS,11,15> + SSTR<#DS,6,9> result 12345f3790abcd expression FSTR<#DS, 616263 , 616263 , 0> + SSTR<#DS,LSTR<#DS> -3, LSTR<#DS> result abc3790 expression...
Seite 156 GRYPHON™ D432/D432E CODE IDENTIFIER TABLE EAN/UPC CODABAR APCPCMHOFNGNENEIEPANHOGOCK APCPCIHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKEGBHIK AHPNIBAMDKEOFMHMLJALEEHFIK AKCBPJCJGIIJCMCEGOMAPFDLJK AKCBPJCJGIIJCMCFGJKHILNJLK AEFBJLBGMHPLMNBJDBAMFHOEGK AEFBJLBGMHPLMNGOJAGECBEFGK AAPHBAJJCCDBJLHEJOHAEJBBFK AAPHBAJICHELJEAHOIHPKBLLFK AEKFAMIOGAHEOFFNJLAMEFIJKK AFLFAIKFBDOOEJMDCFEIOGNIJK DLDLLLDLDLDLLLLDLDDDDLDLDL DLLLLLDLLLLLLLLDDLDDDLDLLL CODE 128 EAN 128 APCLGMHOFNGNENEIEPANHOGOCK APCPGMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKFFDEIK AHPNIBAMDKEOFMHMLJALFHEGIK AKCBPJCJGIIJCMCEGPKEHAMLLK AKCBPJCJGIIJCMCEGJKOCJLBJK AEFBJLBGMHPKNKGMHMAGPDIFGK AEFBJLBGMHPLMODJKELEOGJGGK AAPHBAJICHAPGJKOACPJFHKLBK AAPHBAJIDHCOFOGHOJOKLEHPDK AHLFAOIHKPPIGNIKBLPOMOHKJK AEKFAONHFDEIAADCBCKGGBAILK DLLLLLDLLLDLLLLDDLDDDLDLDL DDDLLDDLLLDLLLLDLLDDDLDLLL CODE 93 CODE 32 APCLGIHOFNGNENEIEPANHOGOCK APCPCMHOFNGNENEIEPANHOGOCK...
Seite 157: Datamatrix
CODE IDENTIFIER TABLE DATAMATRIX MAXICODE AODKGMHOFNGNENEIEPANHOGOCK AODOCIHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKFCCHIK AHPNIBAMDKEOFMHMLJALEDGGIK AKCBPJCJGIIJCMCFGJJCFJLDPK AKCBPJCJGIIJCMCEGPJBKCKBPK AEFBJLBGMHPLMJBFPMGFAJNHGK AEFBJLBGMHPKNOBHBAAHNLBHGK AAPHBAJJCBEPCBEDOJMDKCEPHK AAPHBAJJCBALNMOKADEFFEFPDK AFLFAOMAAGDAEANNKJGIKJJILK AHLFAIOCLKCGGEJEJHNOIBDKLK DDLLLLDLDLLLLLLDDLDDDLDLLL DDLLLLDLDLDLLLLDDLDDDLDLDL AUSTRALIA POST AODKGIHOFNGNENEIEPANHOGOCK AODKCIHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFAEFIK AHPNIBAMDKEOFMHMLJALFGCFIK AKCBPJCJGIIJCMCEGOPFCHFBNK AKCBPJCJGIIJCMCEGLIMNBALPK AEFBJLBGMHPLMJGCFNANHPHGGK AEFBJLBGMHPLNOFGFJJCKGKFGK AAPHBAJICEDFCODAJPMMEKOFHK AAPHBAJIDABENPAPEMDDNCCFFK AEKFAKOLHFKKOMEDBHCMAKMJIK AHKFALNAFKGIAGGEOBGGIPBLIK DDDLLLDLLLDLLLLDLDDDDLDLDL DLLLLLDLDDLLLLLDLDLDDLDLLL JAPAN POST POSTNET AODOGMHOFNGNENEIEPANHOGOCK AODOCMHOFNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFAFFIK AHPNIBAMDKEOFMHMLJALFGDFIK AKCBPJCJGIIJCMCFGPJIAAMJNK...
Seite 158 GRYPHON™ D432/D432E HEX AND NUMERIC TABLE CHARACTER TO HEX CONVERSION TABLE char decimal char decimal char decimal < > SPACE " &...
Seite 159 HEX AND NUMERIC TABLE ANFOGIFKDNGNENEIEPANHOGOCK ANEPGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKFHBHIK AHPNIBAMDKEOFMHMLJALEHEEIK AKCBPJCJGIIJCMCFGPOFMJLDJK AKCBPJCJGIIJCMCEHPLFIKNHNK AEFBJLBGMHPKNIFGJCGBBDNHGK AEFBJLBGMHPKMKGPIEMNLKLEGK AAPHBAJJDEBJCDJAGBDLGHNFHK AAPHBAJIDGFBMBLDDDNIEPNNFK AFKEBJJPCPKMAJNAMBKKKCFJKK AEKEBJMNMOKOIOPNEFCOIJJLJK DLDLLLDDDLLLLLLDLLDDDLDLLL DLDLLLDDLDDLLLLDDDLDDLDLLL ANEOGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKEFGHIK AKCBPJCJGIIJCMCEGMILJPPDNK AEFBJLBGMHPKMKEKGKAMOGNEGK AAPHBAJJDEFNLJHLIGJCCKKLDK AELEBMKKGLEGCCHPLDIKICJLLK DDLLLLDDDLDLLLLDLLLDDLDLLL AMFPGIFKDNGNENEIEPANHOGOCK AMFOGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKECHEIK AHPNIBAMDKEOFMHMLJALEAFHIK AKCBPJCJGIIJCMCFGKLNLGILJK AKCBPJCJGIIJCMCFHJIDKDKPJK AEFBJLBGMHPLNJDDOKGPBMIGGK AEFBJLBGMHPLNJBGAEKOEAOGGK AAPHBAJIDCBNPBJGGNKINPEPFK AAPHBAJJDABBIJFONIOCLKDJDK AGLEBMONMCIOAPCIABBMOFHJJK AGKEBJIKGHGGKDKKPHLIOOHJLK DLLLLLDDLLLLLLLDLLLDDLDLDL DDDLLLDDDDLLLLLDDDLDDLDLDL...
Seite 160 GRYPHON™ D432/D432E AMEPGIFKDNGNENEIEPANHOGOCK AMEOGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKFAAEIK AHPNIBAMDKEOFMHMLJALFCCHIK AKCBPJCJGIIJCMCEGJNDOAMLNK AKCBPJCJGIIJCMCEHKONPFOPNK AEFBJLBGMHPLMLCPBCACOJIFGK AEFBJLBGMHPLMLAKPMMDLFOFGK AAPHBAJIDCFJGLHNIKABJCDBBK AAPHBAJJDAFFBDLFDPELPHEHHK AHKEBJNIIGGECEIHHDDMMFLLIK AHLEBMLPCDIMIIAFIFJIMOLLKK DDDLLLDDLLDLLLLDLLDDDLDLDL DLLLLLDDDDDLLLLDDDDDDLDLDL ANFNGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKFCHFIK AKCBPJCJGIIJCMCEHJLAGJEHJK AEFBJLBGMHPKMMHJBODNLMGFGK AAPHBAJIDFBCOHNDCJGDNMAPDK AHKEBNOMACIOMCLCEECKCIFKLK DDLLLLDDDDLLLLLDDLLDDLDLDL ANFMGIFKDNGNENEIEPANHOGOCK ANENGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFAFGIK AHPNIBAMDKEOFMHMLJAKEAAFIK AKCBPJCJGIIJCMCEGKIOHMGDJK AKCBPJCJGIIJCMCFHKNODPAHNK AEFBJLBGMHPKMMFMPAPMOAAFGK AEFBJLBGMHPKNOGFOGFAEJGGGK AAPHBAJJDHBOJPBLJMCJLJHJFK AAPHBAJIDFFGHNDIMOMKJBHBHK AHLEBIILKHGGGODALCIOCDFKJK AGLEBINJEGGEOJBNDGAKAIJIKK DLDLLLDDLLLLLLLDLDLDDLDLDL DLDLLLDDDDDLLLLDDLDDDLDLDL...
Seite 161 HEX AND NUMERIC TABLE APCPGIFKDNGNENEIEPANHOGOCK APCOGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJAKFABHIK AHPNIBAMDKEOFMHMLJALFCDEIK AKCBPJCJGIIJCMCEHLIFKKKFJK AKCBPJCJGIIJCMCEGILLLPIBJK AEFBJLBGMHPKNMFGFGAOPLOGGK AEFBJLBGMHPKNMHDLIMPKHIGGK AAPHBAJJDAECFFJNDGOFJPBHFK AAPHBAJIDCEOCNFFIDKPPKGBDK AFKEBKMFNHHIOOPEFNLCMAMLLK AFLEBPKCHCJAECHGKLBGMLMLJK DLLLLLDDLDDLLLLDDLDDDLDLLL DDDLLLDDDLDLLLLDLDDDDLDLLL AODPGIFKDNGNENEIEPANHOGOCK AODOGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALFFCHIK AHPNIBAMDKEOFMHMLJAKFHAEIK AKCBPJCJGIIJCMCFGOINJGPJNK AKCBPJCJGIIJCMCFHNLDIDNNNK AEFBJLBGMHPLMPAKDIKMFNNEGK AEFBJLBGMHPLMPCPNGGNABLEGK AAPHBAJJDEAOGFLIGIJFAPIFFK AAPHBAJIDGACBNHANNNPGKPDDK AHLEBPOFNLFIGPCBBJIAKMCJLK AHKEBKICHOLAMDKDOPCEKHCJJK DLDLLLDDLLLLLLLDLDDDDLDLDL DDLLLLDDDDLLLLLDDLDDDLDLDL AOCPGIFKDNGNENEIEPANHOGOCK AOCOGIFKDNGNENEIEPANHOGOCK AHPNIBAMDKEOFMHMLJALEHFHIK AHPNIBAMDKEOFMHMLJAKEFHEIK AKCBPJCJGIIJCMCEGNODMALJJK AKCBPJCJGIIJCMCEHONNNFJNJK AEFBJLBGMHPLNNBGMAMBKINHGK AEFBJLBGMHPLNNDDCOAAPELHGK AAPHBAJJDEEKPPFDIPDMECPLBK AAPHBAJIDGEGIHJLDKHGCHINHK AGKEBKNAJPLCEEIOGLKAIMOLKK...
Seite 162 GRYPHON™ D432/D432E AUTOSCAN PATTERN CODE ÌÄÄsÎ...
Seite 163 Datalogic Scanning, Inc. 959 Terry Street Eugene, OR 97402 dichiara che declares that the déclare que le bescheinigt, daß das Gerät declare que el Gryphon™ D432 Gryphon™ D432E e tutti i suoi modelli and all its models et tous ses modèles...

Diese Anleitung auch für:

Gryphon d432e

Datalogic Gryphon D432 Referenzhandbuch

General View

1 Compliance

Patents

Warranty

Services and Support

2 Introduction

3 Using Gryphon™ D432/D432E

4 Initial Setup

5 Configuration Using Code Symbols

6 References

7 Test Code Symbols

8 Maintenance

9 Technical Features

Quicklinks

Verwandte Anleitungen für Datalogic Gryphon D432

Inhaltszusammenfassung für Datalogic Gryphon D432

Diese Anleitung auch für:

Inhaltsverzeichnis
