- Seite 1 DLL5000 SERIES LASER SCANNERS QUICK REFERENCE INSTALLAZIONE RAPIDA INSTALLATION RAPIDE SCHNELLINSTALLATION 820000095 (Rev. E)

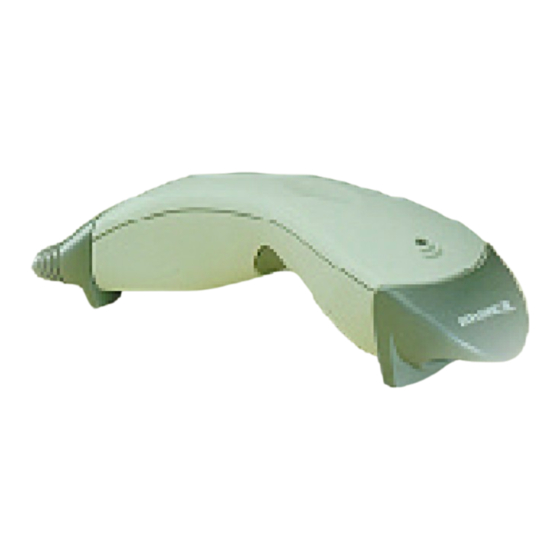

- Seite 2 USING DLL5000 LASER SCANNERS DLL5000 LASER SCANNERS automatically scan barcodes at a distance. Simply aim and pull the trigger. Code scanning is performed along the scan line emitted from the reading window. This line must cross the entire code. Successful scanning is obtained by tilting the scanner with respect to the barcode to avoid direct reflections which impair the reading performance, see the figure above.
- Seite 3 DLL5000 READING DIAGRAMS 5010 - General Purpose 80 cm 0.19 0.12 0.25 0.38 0.12 0.19 0.25 0.38 mm 0.50 1.00 1.38 5012 - Very High Density 14 cm 0.06 0.08 0.06 0.08 0.12 0.19 0.33...
-
Seite 4: Technical Features
Sensor Scan rate 36 ± 3 scans/sec Reading field width see reading diagrams Max. resolution 0.12 0.06 mils PCS minimum (Datalogic Test Chart) Indicators Good Read LED (red) Beeper Laser Features Power (typical) in mW 0.39 Scan angle 42° 37°... - Seite 5 CONNECTIONS This scanner is intended to be supplied by a unit which is in compliance with clause 2.11/EN60950 - Limited power source. Das Gerät darf nur mit Netzteilen mit begrentzer Leistung nach Abschnitt 2.11/ EN60950 betreiben werden. RS232 With the RS232 cable, this accessory device is intended to be supplied by a UL Listed Direct Plug-in Power Unit marked "Class 2", rated 5 V, minimum 150 mA.
-
Seite 6: Disconnecting The Cable
Pen cable Portable terminal Multidrop network A F1 C F2 func or other G CL Host system cl r Pen cable With the Pen Emulation cable, this accessory device is intended to be supplied by a UL Listed Power Unit marked "Class 2", or an LPS power source which supplies power directly to the reader. -
Seite 7: Restore Default
1 DEFAULT Read the RESTORE DEFAULT. Leggere il codice che ripristina i default. Lecture du code de configuration par défaut. Lesen Sie den Restore Default Code, um die Werkseinstellung wieder herzustellen. RESTORE DEFAULT RS232 DEFAULT SETTINGS 9600 baud, no parity, 8 data bits, 1 stop bit, no handshaking, ack/nack disabled, fifo enabled, delay disabled, rx timeout 5 sec., serial trigger lock disabled;... - Seite 8 DECODING PARAMETERS ink spread enabled, overflow control enabled, interdigit control enabled, decoding safety = one read CODE SELECTION enabled codes • EAN 8 / EAN 13 / UPC A / UPC E without ADD ON check digit transmitted, no conversions •...
- Seite 9 2 READER CONFIGURATION Read interface selection code your application. Leggere il codice per la selezione dell’interfaccia relativo al modo di comunicazione desiderato. Lecture du code “Interface” correspondant à votre modèle. Lesen Sie denjenigen Schnittstellen-Code, der Ihrem gewünschten Kommunikationsmodus entspricht. RS232 WEDGE IBM AT or PS/2 PCs IBM XT...
- Seite 10 WEDGE (continued) IBM Terminals 31xx, 32xx, 34xx, 37xx: To select the interface for these IBM Terminals, read the correct KEY TRANSMISSION code. Select the KEYBOARD TYPE if necessary (default = advanced keyboard). Per selezionare l'interfaccia per i terminali IBM, leg- gere il codice Key Transmission e, se necessario, il codice Keyboard...
-
Seite 11: Wedge Keyboard Nationality
WEDGE KEYBOARD NATIONALITY Wedge users should select one of the following WEDGE KEYBOARD NATIONALITY codes. Quando è selezionata l’interfaccia Wedge, leggere uno dei seguenti codici per impostare la nazionalità della tastiera. Pour l’interface Wedge, lire l'un des codes suivants pour sélectionner la nationalité du clavier. Für den Betrieb mit einer Wedge-Schnittstelle lesen Sie einen der folgenden Codes, um die Tastaturnatio- nalität einzustellen. - Seite 12 YOUR READER IS NOW READY TO READ BARCODES. To change the defaults, see the Hand-Held Devices Software Configuration Manual, part number 90ACC1854. IL LETTORE È PRONTO A LEGGERE I CODICI. Per cambiare i parametri di default, fare riferimento manuale "Hand-Held Devices Software Configuration Manual", n.
-
Seite 13: Operating Test
3 OPERATING TEST Read the TEST codes below. Leggere i codici di test. Lire les codes tests. Lesen Sie die Test-Coden. EAN-8 1 2 3 4 5 6 7 0 EAN-13 1 2 3 4 5 6 7 0 0 0 9 9 2 Code 39 (Normal) Code 128 Interleaved 2 of 5... -
Seite 14: Fcc Compliance
FCC COMPLIANCE This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference which may cause undesired operation. -
Seite 15: Warranty
Datalogic garantit ce produit de tout défaut de fabrication ou des matériels pendant 24 mois de la date de livraison, à condition que le produit soit utlisé correctement. Datalogic a la faculté de réparer ou de remplacer ce produit. mesures prolongeront l’échéance de la garantie. - Seite 16 DATALOGIC S.p.A., Via Candini, 2 40012 - Lippo di Calderara Bologna - Italy dichiara che declares that the déclare que le bescheinigt, daß das Gerät declare que el DLL501X-XX, Hand Held Laser Reader e tutti i suoi modelli and all its models et tous ses modèles...
