Auerswald Analog/ISDN Converter Installations- Und Bedienungshandbuch Seite 41

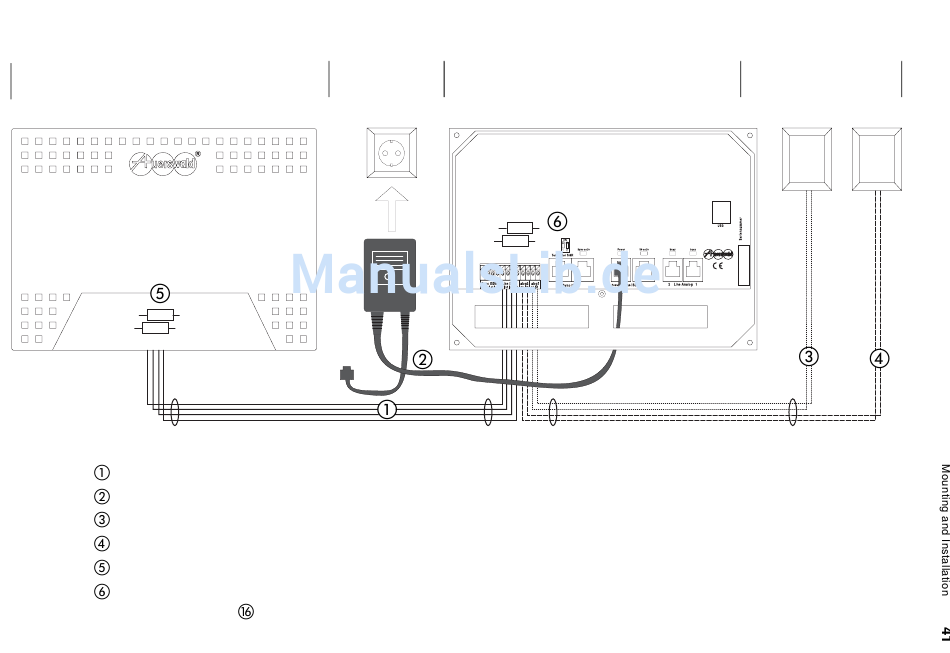

Fig. 5: ISDN PBX with a S Port (fixed Wiring)
0
ISDN PBX 230 V power
analog connection
Analog/ISDN Converter
(e.g. by Auerswald) supply
(by network prov.)
Connection of the clamps "Line ISDN (b2, b1, a1 and a2)" to the external S port of the PBX
0
Connection of the "Power" jack with the 230 V power supply
Connection of the clamps "alog 1 (a1 and b1)" with the connector of the network provider
Connection of the clamps "alog 2 (a2 and b2)" with the connector of the network provider
Terminators on the external S port of the PBX are switched on
0
Terminators on the Analog/ISDN Converter are switched on
(see also point in Fig. 2 on page 36)
