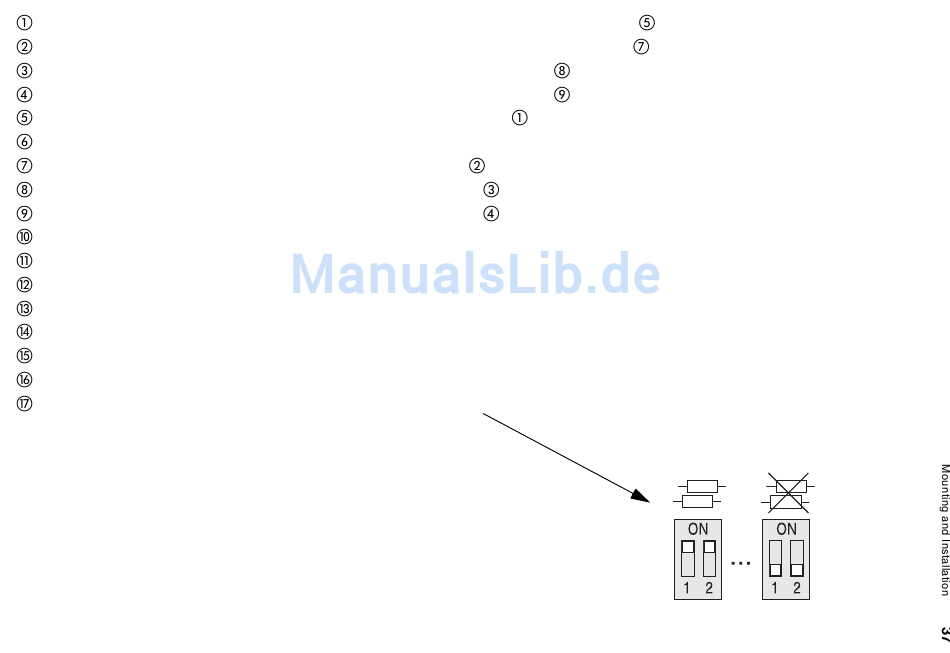

Connection clamps for the ISDN synchronization (in parallel to the RJ-45 jacks
Connection clamps for the ISDN external output (in parallel to the RJ-45 jacks
Connection clamps for the analog input 2 (in parallel to RJ-11 jacks
Connection clamps for the analog input 1 (in parallel to RJ-11 jacks
RJ-45 jack for ISDN synchronization (in parallel to the clamps
Jack for the connection of the wall-mounted power supply
RJ-45 jack for the ISDN output (in parallel to the clamps
RJ-11 jack for the analog input 2 (in parallel to the clamps
RJ-11 jack for the analog input 1 (in parallel to the clamps
USB jack for the connection to a PC
LED for the status display of the ISDN synchronization (green)
LED for the power status (green)
LED for the status display of the ISDN connection (green)
LED for the status display of the analog connection 2 (red)
LED for the status display of the analog connection 1 (red)
DIP switch for the terminators on the ISDN output
Opening for connection cables
)
)
)
)
)
)
)
)
ON OFF
