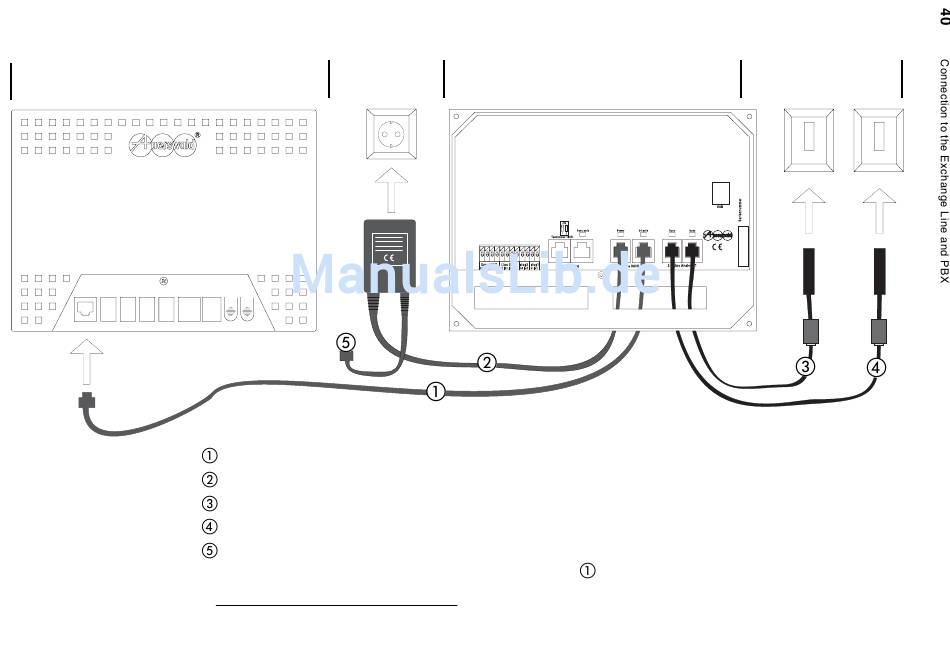

Fig. 4: ISDN PBX with one S Port
0
ISDN PBX 230 V power
analog connection
Analog/ISDN Converter
(e.g. by Auerswald) supply
(by network prov.)
Connection of the "Line ISDN" jack with the external S port of the PBX
0
Connection of the "Power" jack with the 230 V power supply
Connection of the "Line Analog 1" jack with the connector of the network provider
Connection of the "Line Analog 2" jack with the connector of the network provider
the integrated ISDN connection cable of the wall-mounted power supply
1)
VD100055H can be used alternatively to cable for the connection to the PBX
1) Starting with Hardware revision 2 (Rev. 2) the wall-mounted power supply DV-10W3UP will be used instead of VD100055H.
This does not have the integrated ISDN connection cable.
