Mounting the Case to the Wall

Warning:
Liquids entering the case may cause a
dangerous electric shock or may dam-
age or destroy the device.
- Pay attention when selecting the installation
location to prevent liquids from entering the
case.
- Use the device in dry rooms only.
- Pay attention to the humidity conditions in
the technical data.
- Protect the device against spray water and
dust.
Warning:
High temperature may overheat the
device and may damage the device.
- Pay attention to the temperature conditions
in the technical data.
- Protect the device against direct sunshine.
Please observe the following advice
when selecting the mounting location:
- Near the installation location you are in need of
an unobstructed 230 V socket with protective
Mounting the Case to the Wall

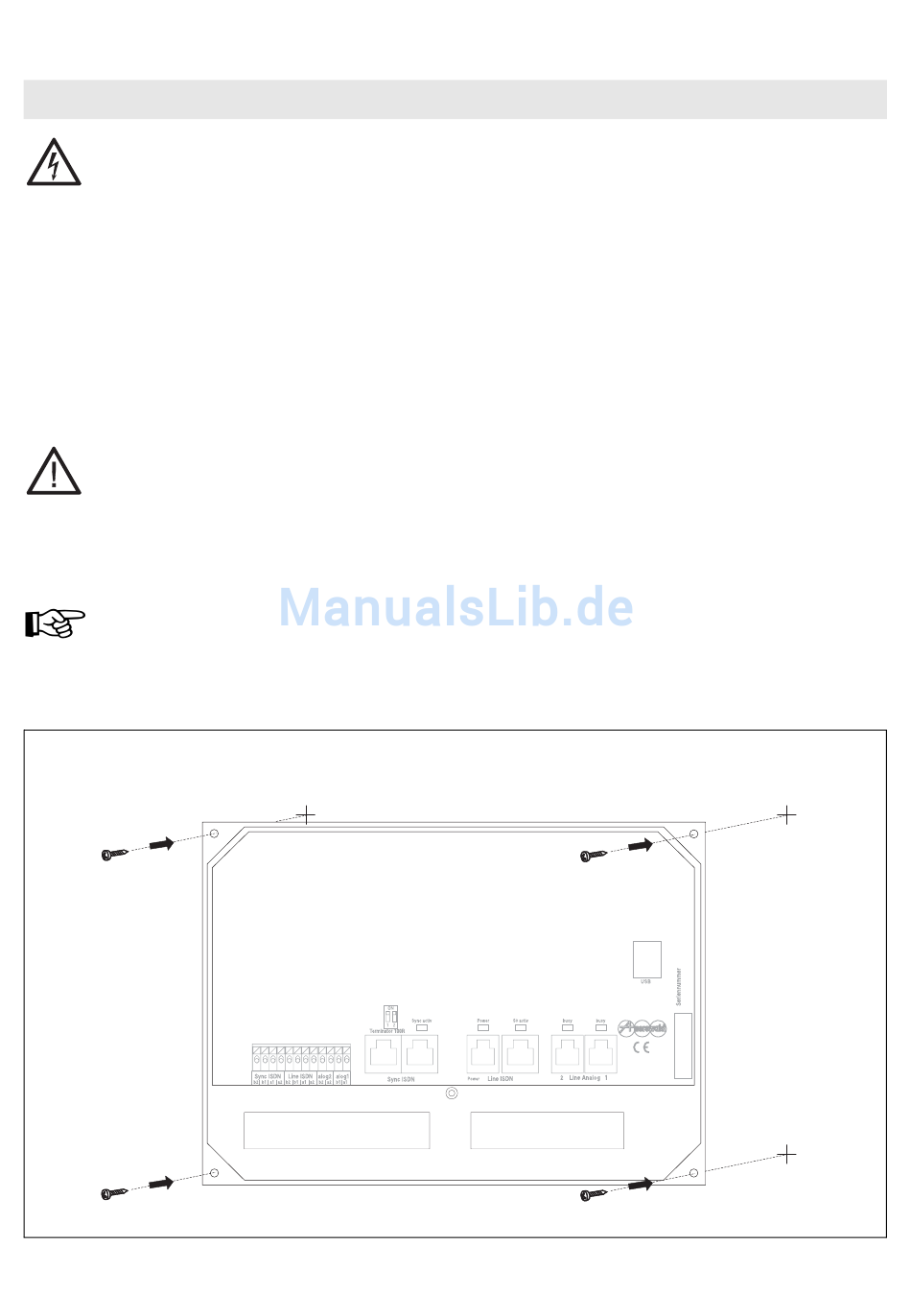

Fig. 3: Wall mounting
earthing for the power supply. Please make
sure that the socket is properly connected
(according to electric safety regulations).
- The PBX to be connected must be next to the
Analog/ISDN Converter in order to avoid long
transmission ways between both devices. If it is
not possible, a fixed wiring (S
both units will be necessary.
- Please avoid mechanical stress (e.g. vibrations)
and the close neighbourhood to devices that
radiate electromagnetic fields or interfere with
these units (e.g. radios, HAM-radio installations,
mobile telephones, DECT base stations, etc.).
Mount the base plate (without cover) to the wall as
shown in Fig. 3:
1. Mark the four drill holes on the wall with the
drilling template (Scope of delivery).
2. Drill the holes with a diameter of 6 mm and
insert the dowels (Scope of delivery).
3. Guide the connection cables through the
openings of the base plate.
4. Insert the screws (Scope of delivery) into the
mounting holes at the outer edges of the base
plate and tighten the screws.
