CV ≤ 0,1%
Laststabilität:
CV ≤ 0,5mV
Restwelligkeit:
Spannungsanzeige:
+1%+2 stellig
Stromanzeige:
+2%+2 stellig
Abmessungen :
B x H x T 260 x 160 x 345 mm
Gewicht:
7,5 kg
Zubehör:
Netzkabel und Bedienungsanleitung
4. Betrieb des Gerätes

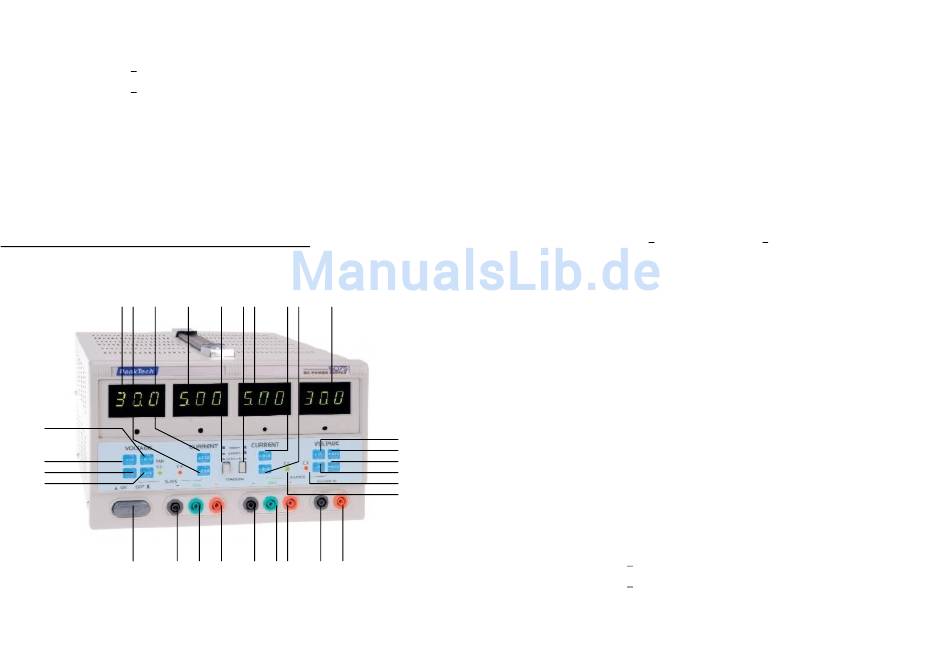

4.1. Anzeigen und Bedienelemente an der Vorderseite des Gerätes
4 15 16
11
12
13
14
23
24 25
eff
3
21
22 2
9 10
1
5
26
27
28 29
30
31
-3-
2. Introduction
This unit is a power supply, which has the direct current steady voltage and current.
It adopts digital control and have high precision. It uses advanced controlling technique of
microprocessor to achieve the following functions: the enactment, display, feedback, and protecting of
voltage and current. This technique improves the accuracy of enactments and the accuracy of control.
Besides, it makes more convenient to operate and more intuitionistic to see. So this technique avoids
the unsteadiness of the enactment point caused by adjust of regular potentiometer, which brings the
error, excursion, and parts of an apparatus being abrasion. Therefore, the precision and stability of
power supply have heightened greatly.
Another characteristic of this power supply is: the enacted voltage could lock in the whole range. This
characteristic offers users much more convenience and avoids needless inaccurate operate.
The P 6075 provides 2 adjustable outputs for constant voltage and current, which can be connected in
series or parallel, i.e. max. output voltage 60 V DC and max. output current 10 A DC in parallel.
3. Technical Data
Input voltage:
Output current:
Output voltage:
Fixed output:
Dual adjustable power supply
Line regulation:
Load regulation:
Ripple and noise:
5
6
Protection:
7
8
Fixed output:
17
18
Line regulation:
Load regulation:
Ripple and noise:
Voltage indication accuracy: +1%+2digits analogue display 2.5%
Current indication accuracy: +2%+2digits analogue display 2.5%
230V/115V AC+10%
50Hz/60Hz+2Hz switchable
2 x 0 - 5 A DC (5V/3 A fixed), adjustable
2 x 0 - 30 V DC, adjustable
5V/3A
CV≤0.01%+2mV
CC≤0.2%+2mA
CV≤ 0.01%+3mV(I≤3A)
CC≤0.2%+3mA(I≤3A)
CV≤ 0.01%+5mV(I>3A)
CC≤0.2%+5mA (I>3A)
CV≤0.5mVr.m.s(I≤3A)
CC≤3mAr.m.s(I≤3A)
CV≤1.0mVr.m.s(I>3A)
CC≤6mAr.m.s(I>3A)
constant current and short-circuit protection
CV≤0.01%+1mv
≤ 0.1%
≤0.5mVr.m.s
