7.1.2 Receiver/transceiver, machine interface

The receiver/transceiver has safety-related transistor outputs.
The terminal strip for the machine interface connection cable fixed with the M20x1.5
cable gland is located inside the connection cap.
a
a = Receiver/transceiver end cap
b = Receiver/transceiver, device-side

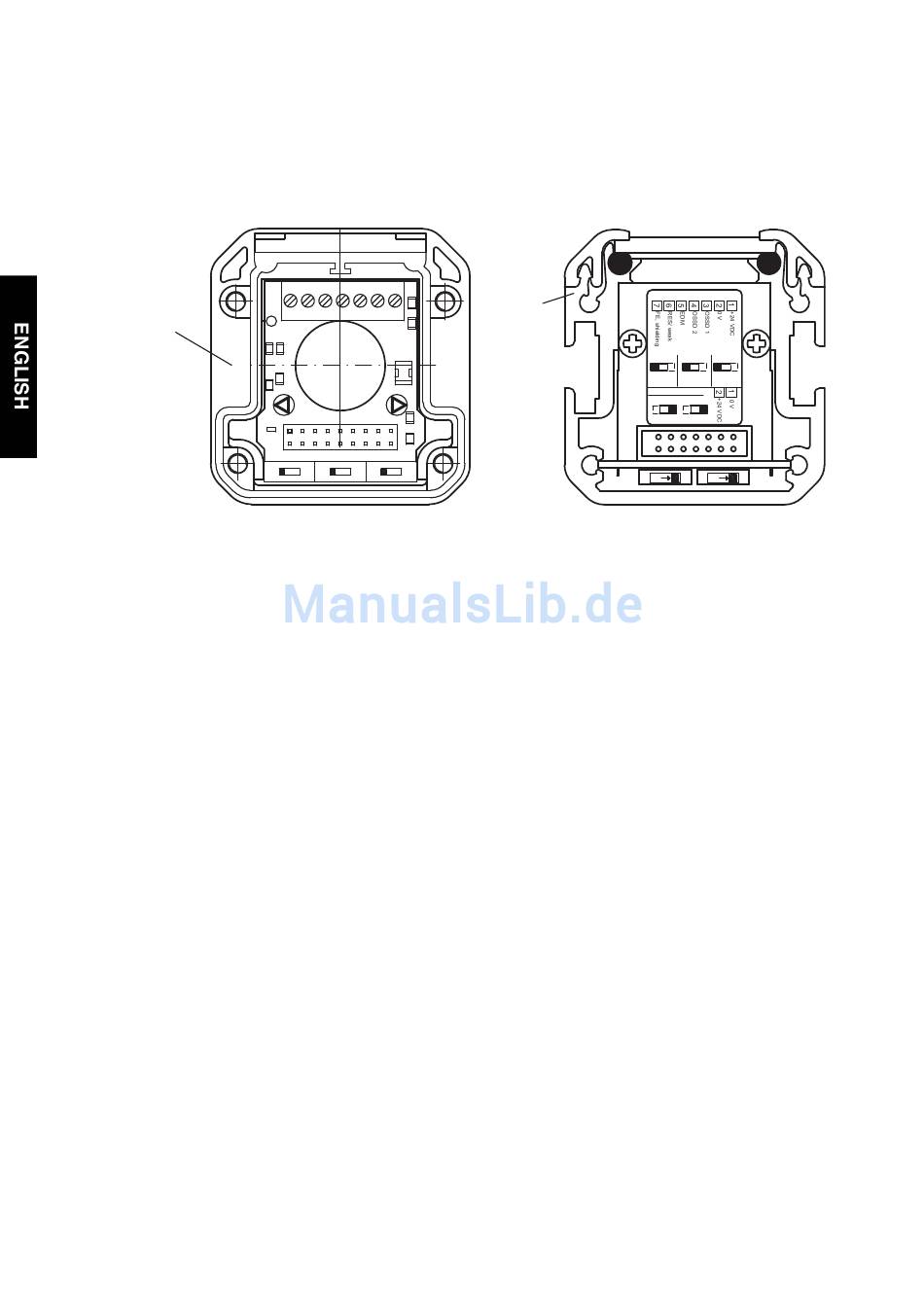

Fig. 7.1-2: Receiver/transceiver connection cap removed, inside view/terminal strip
➢ After you have loosened the 4 fastening screws, pull the connection cap out in as
straight a direction as possible.
➢ Use insulated conductor sleeves.
162
1
7
S1 S2 S3
Receiver
b
w) 100ms
x) 500ms
S1 S2
x) 1 2
w)
channel
EDM/RES/500ms =>
on S4 on S5
off
EDM RES
S4
y) s-scan
z) d-scan
S3
y) z)
evaluat.
off
S5
