NAMES OF PARTS

MAIN UNIT DISPLAY

OFF timer display lamps
(set using remote control)
Filter lamp
If the Filter lamp is lit, it indicates filter
replacement period.
CLUSTER ION LAMP
Cluster ion operation is selected using the remote control.
Blue light
When the cluster ion operation is in Clean mode or AUTO
cluster ion mode and the air in the room is dirty, this light
turns on and the unit will operate in Clean mode.
Green light
When the cluster ion operation is in Ion control mode or
AUTO cluster ion mode and the air in the room is clean, this
light turns on and the unit will operate in Ion control mode.
Light off
No cluster ions are generated.
• The light can be turned off by using the 'DIS-
PLAY ON/OFF button' on the remote control
even while cluster ions are generated
(Please turn off the lights when not required.)

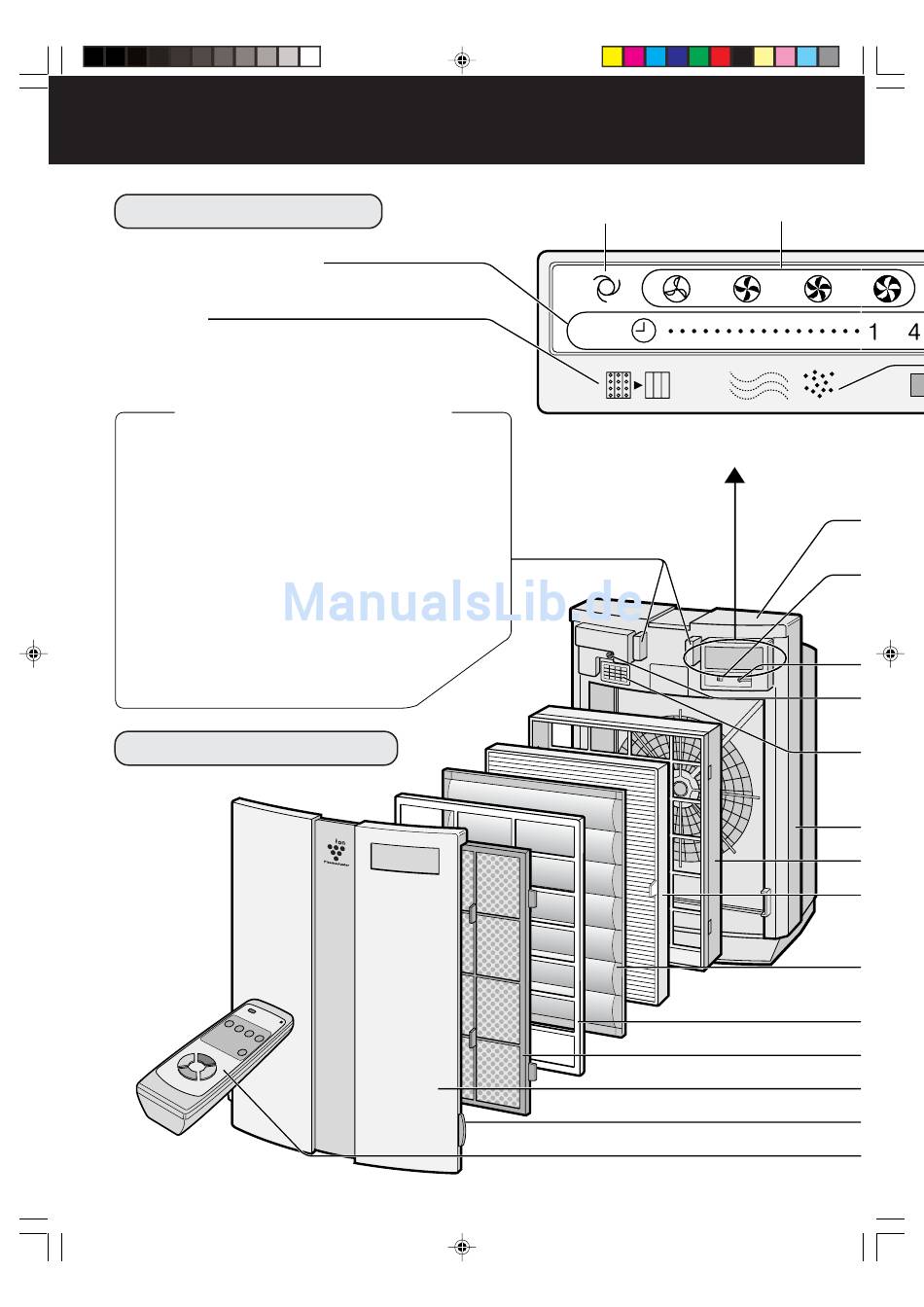

EXPLODED DIAGRAM
