outlet.
2

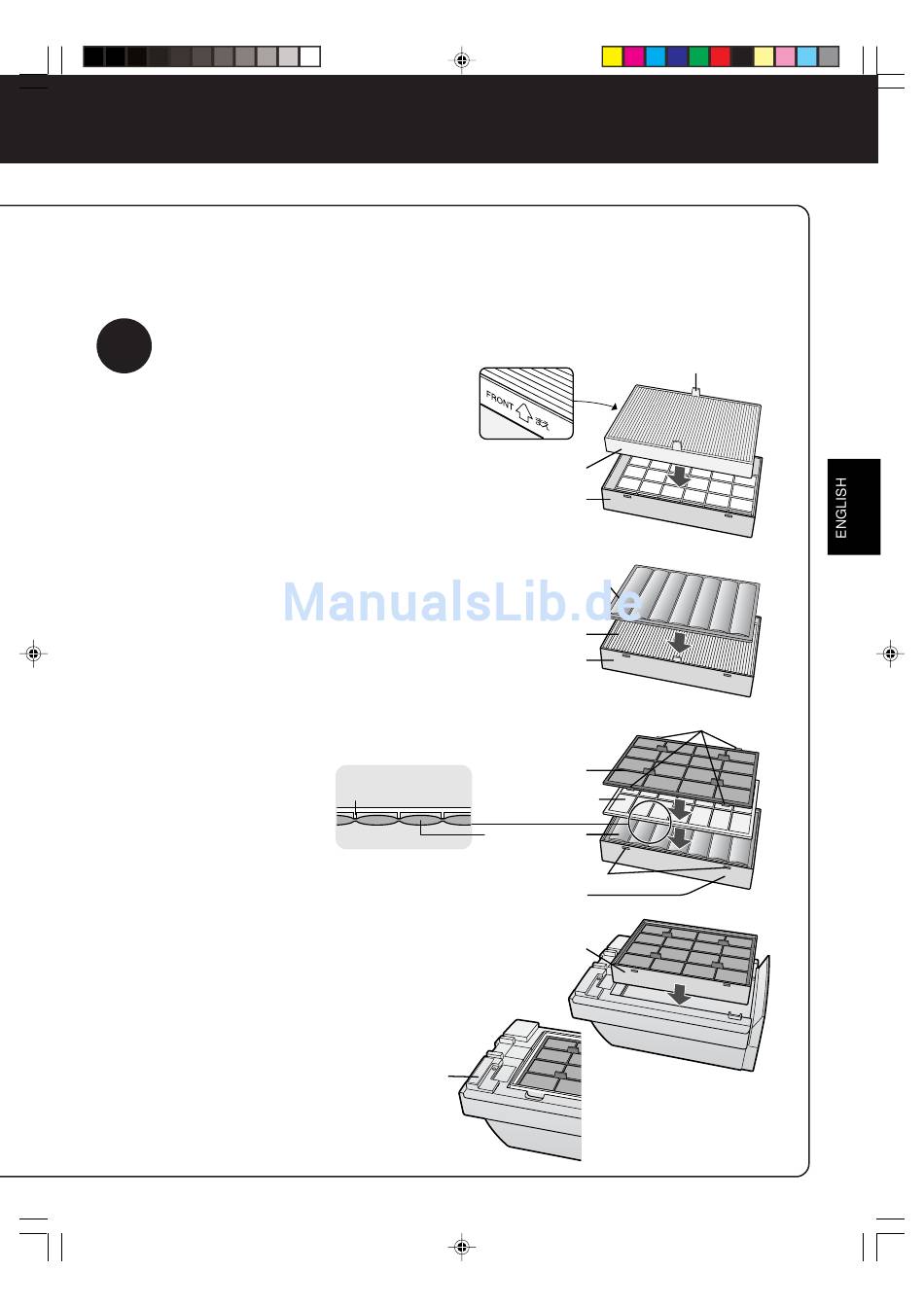

Install the filter
1
Remove the HEPA filter from
the plastic bag and mount it
within the Filter frame with the
"FRONT" sign facing up.
Insert so that the tabs on the HEPA filter
are facing toward you.
Proper operation cannot be achieved
when installing the filter backwards.
2
Remove the Active carbon fil-
ter from the plastic bag and
mount it within the Filter frame.
3
Mount the Filter separator and
Pre-filter within the Filter frame
in the respective order.
• Place the Filter sepa-
rator so that the ribs
are facing down as
shown in the diagram
on the right.
• Insert the tabs of the
Pre-filter (4 locations)
in the holes of the Fil-
ter frame.
• Set the Filter frame to the main unit as
shown in the diagram on the right
(There is no vertical orientation).
4
Fill in the usage start date on
the Date label affixed on the
main unit.
Use the date as a
guide for the filter
replacement pe-
riod.
FU-55SE_Eng.6.5
Rib of the filter separator
Date label
E-9
9
HEPA filter
Filter frame
Active carbon filter
HEPA filter
Filter frame
Pre-filter
Filter separator
Active carbon filter
Holes
Filter frame
Filter frame
03.7.17, 8:53 AM
Tabs
Tabs (4 places)
