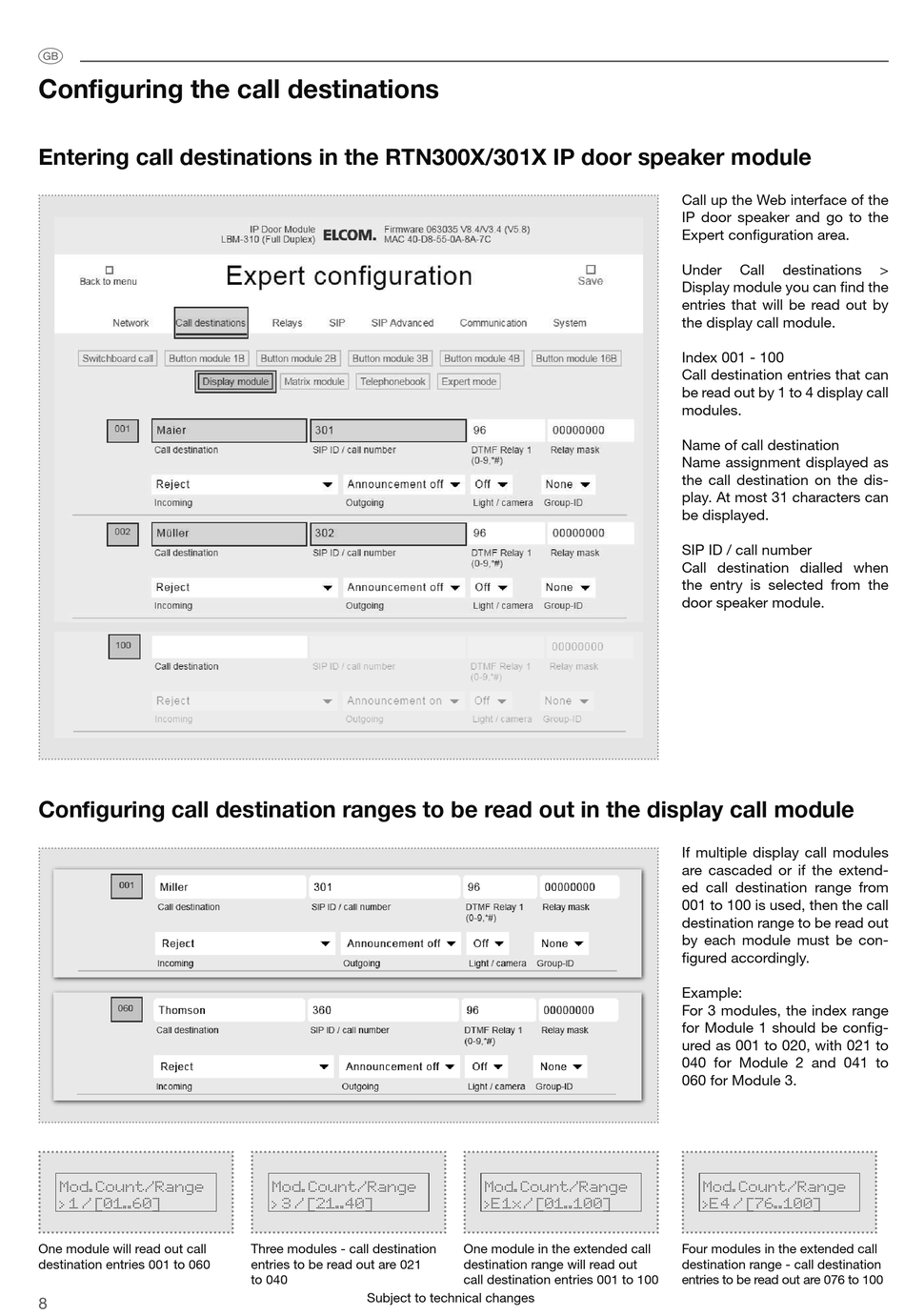

Configuring the call destinations
Entering call destinations in the RTN300X/301X IP door speaker module
Configuring call destination ranges to be read out in the display call module
Mod. Count/Range
> 1 / [01..60]
One module will read out call
destination entries 001 to 060
8
Mod. Count/Range
> 3 / [21..40]
Three modules - call destination
entries to be read out are 021
to 040
Subject to technical changes
Mod. Count/Range
>E 1x / [01..100]
One module in the extended call
destination range will read out
call destination entries 001 to 100
Call up the Web interface of the
IP door speaker and go to the
Expert configuration area.
Under Call destinations
Display module you can find the
entries that will be read out by
the display call module.
Index 001 - 100
Call destination entries that can
be read out by 1 to 4 display call
modules.
Name of call destination
Name assignment displayed as
the call destination on the dis-
play. At most 31 characters can
be displayed.
SIP ID / call number
Call destination dialled when
the entry is selected from the
door speaker module.
If multiple display call modules
are cascaded or if the extend-
ed call destination range from
001 to 100 is used, then the call
destination range to be read out
by each module must be con-
figured accordingly.
Example:
For 3 modules, the index range
for Module 1 should be config-
ured as 001 to 020, with 021 to
040 for Module 2 and 041 to
060 for Module 3.
Mod. Count/Range
>E 4 / [76..100]
Four modules in the extended call
destination range - call destination
entries to be read out are 076 to 100
>
