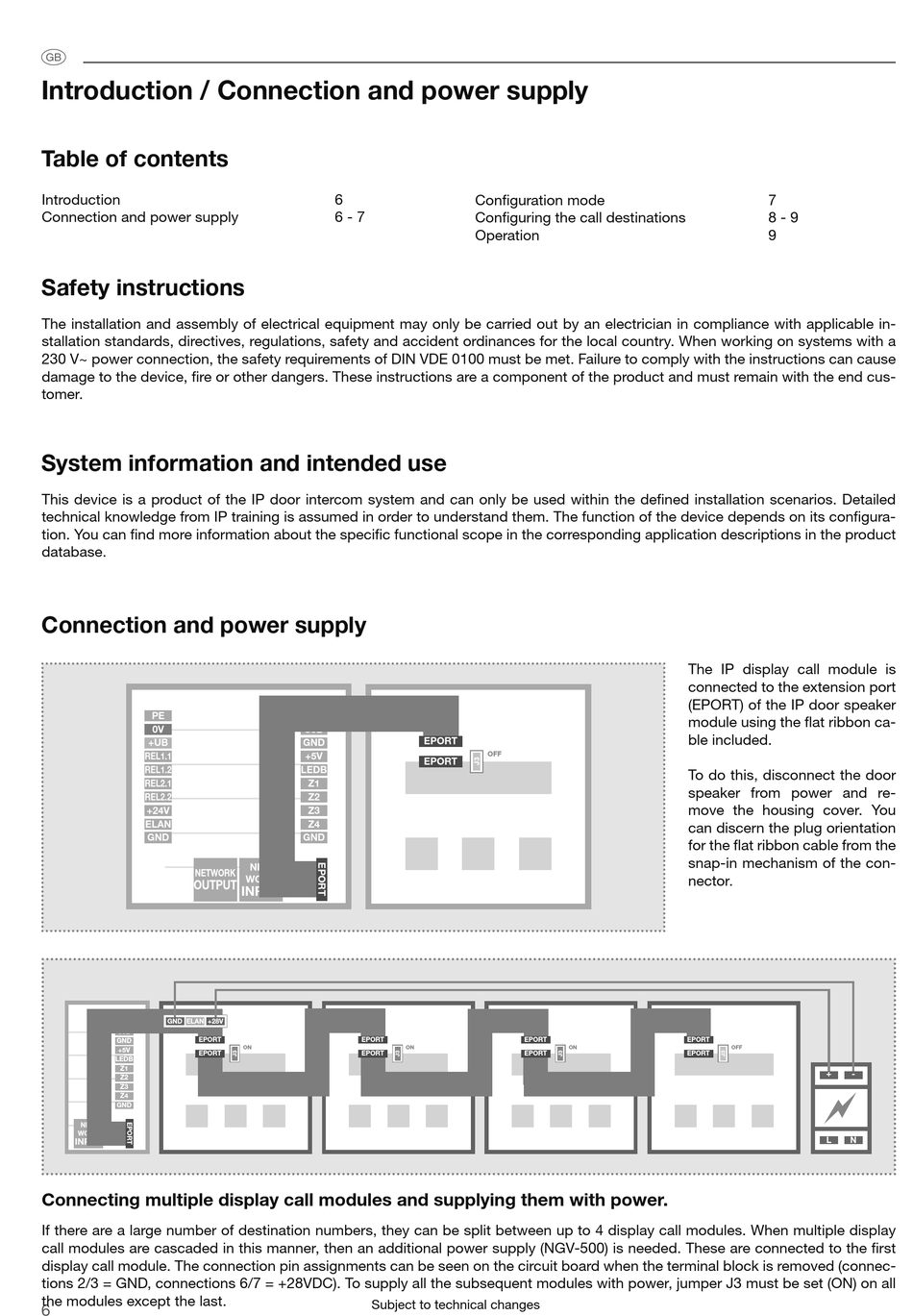

Introduction / Connection and power supply
Table of contents
Introduction
Connection and power supply
Safety instructions
The installation and assembly of electrical equipment may only be carried out by an electrician in compliance with applicable in-
stallation standards, directives, regulations, safety and accident ordinances for the local country. When working on systems with a
230 V~ power connection, the safety requirements of DIN VDE 0100 must be met. Failure to comply with the instructions can cause
damage to the device, fire or other dangers. These instructions are a component of the product and must remain with the end cus-
tomer.
System information and intended use
This device is a product of the IP door intercom system and can only be used within the defined installation scenarios. Detailed
technical knowledge from IP training is assumed in order to understand them. The function of the device depends on its configura-
tion. You can find more information about the specific functional scope in the corresponding application descriptions in the product
database.
Connection and power supply
PE
0V
+UB
REL1.1
REL1.2
REL2.1
REL2.2
+24V
ELAN
GND
NETWORK
OUTPUT
GND
ELAN
+28V
S3B
EPORT
GND
+5V
EPORT
LEDB
Z1
Z2
Z3
Z4
GND
NET-
WORK
INPUT
Connecting multiple display call modules and supplying them with power.
If there are a large number of destination numbers, they can be split between up to 4 display call modules. When multiple display
call modules are cascaded in this manner, then an additional power supply (NGV-500) is needed. These are connected to the first
display call module. The connection pin assignments can be seen on the circuit board when the terminal block is removed (connec-
tions 2/3 = GND, connections 6/7 = +28VDC). To supply all the subsequent modules with power, jumper J3 must be set (ON) on all
the modules except the last.
