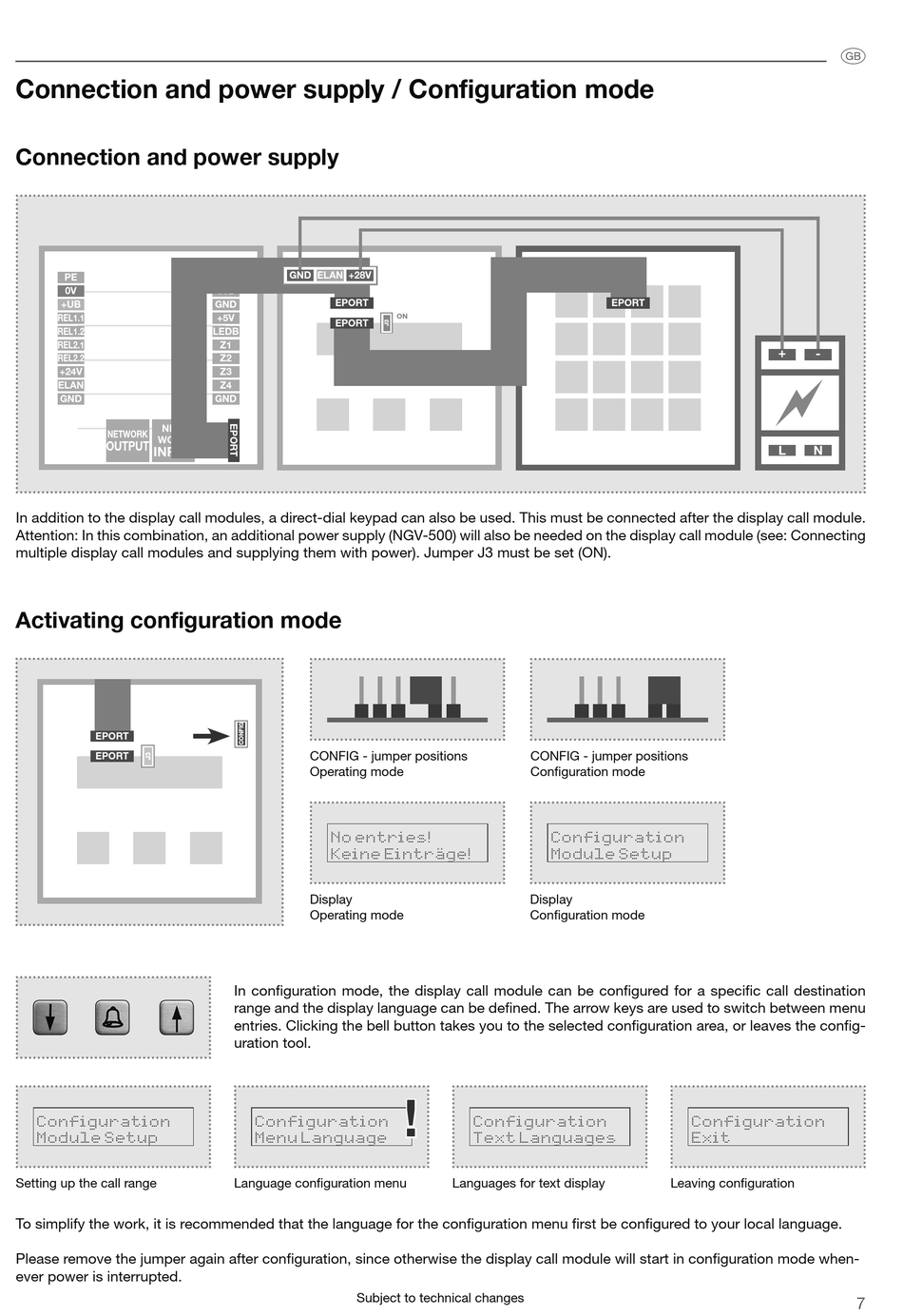

Connection and power supply / Configuration mode
Connection and power supply
PE
0V
+UB
REL1.1
REL1.2
REL2.1
REL2.2
+24V
ELAN
GND
NET-
NETWORK
WORK
OUTPUT
INPUT
In addition to the display call modules, a direct-dial keypad can also be used. This must be connected after the display call module.
Attention: In this combination, an additional power supply (NGV-500) will also be needed on the display call module (see: Connecting
multiple display call modules and supplying them with power). Jumper J3 must be set (ON).
Activating configuration mode
EPORT
EPORT
Configuration
Module Setup
Setting up the call range
To simplify the work, it is recommended that the language for the configuration menu first be configured to your local language.
Please remove the jumper again after configuration, since otherwise the display call module will start in configuration mode when-
ever power is interrupted.
GND ELAN +28V
S3B
EPORT
GND
+5V
EPORT
LEDB
Z1
Z2
Z3
Z4
GND
CONFIG - jumper positions
Operating mode
No entries!
Keine Einträge!
Display
Operating mode
In configuration mode, the display call module can be configured for a specific call destination
range and the display language can be defined. The arrow keys are used to switch between menu
entries. Clicking the bell button takes you to the selected configuration area, or leaves the config-
uration tool.
Configuration
Menu Language
Language configuration menu
Subject to technical changes
