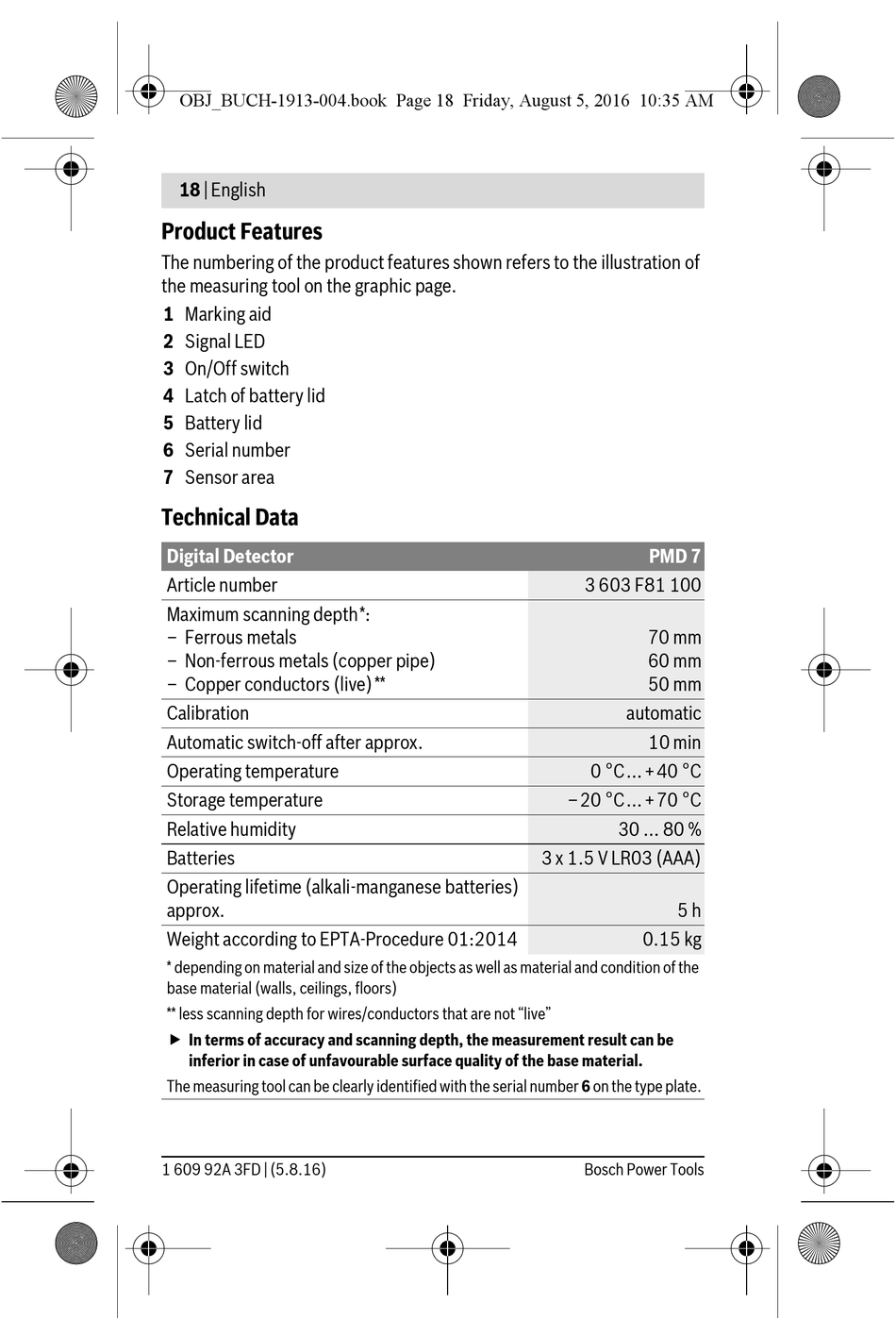

18 | English

Product Features

The numbering of the product features shown refers to the illustration of
the measuring tool on the graphic page.
1 Marking aid
2 Signal LED
3 On/Off switch
4 Latch of battery lid
5 Battery lid
6 Serial number
7 Sensor area

Technical Data

Digital Detector
Article number
Maximum scanning depth*:
– Ferrous metals
– Non-ferrous metals (copper pipe)
– Copper conductors (live)**
Calibration
Automatic switch-off after approx.
Operating temperature
Storage temperature
Relative humidity
Batteries
Operating lifetime (alkali-manganese batteries)
approx.
Weight according to EPTA-Procedure 01:2014
* depending on material and size of the objects as well as material and condition of the
base material (walls, ceilings, floors)
** less scanning depth for wires/conductors that are not "live"
 In terms of accuracy and scanning depth, the measurement result can be
inferior in case of unfavourable surface quality of the base material.
The measuring tool can be clearly identified with the serial number 6 on the type plate.
1 609 92A 3FD | (5.8.16)
PMD 7
3 603 F81 100
70 mm
60 mm
50 mm
automatic
10 min
0 °C...+40 °C
–20 °C...+70 °C
30 ... 80 %
3 x 1.5 V LR03 (AAA)
5 h
0.15 kg
