335E

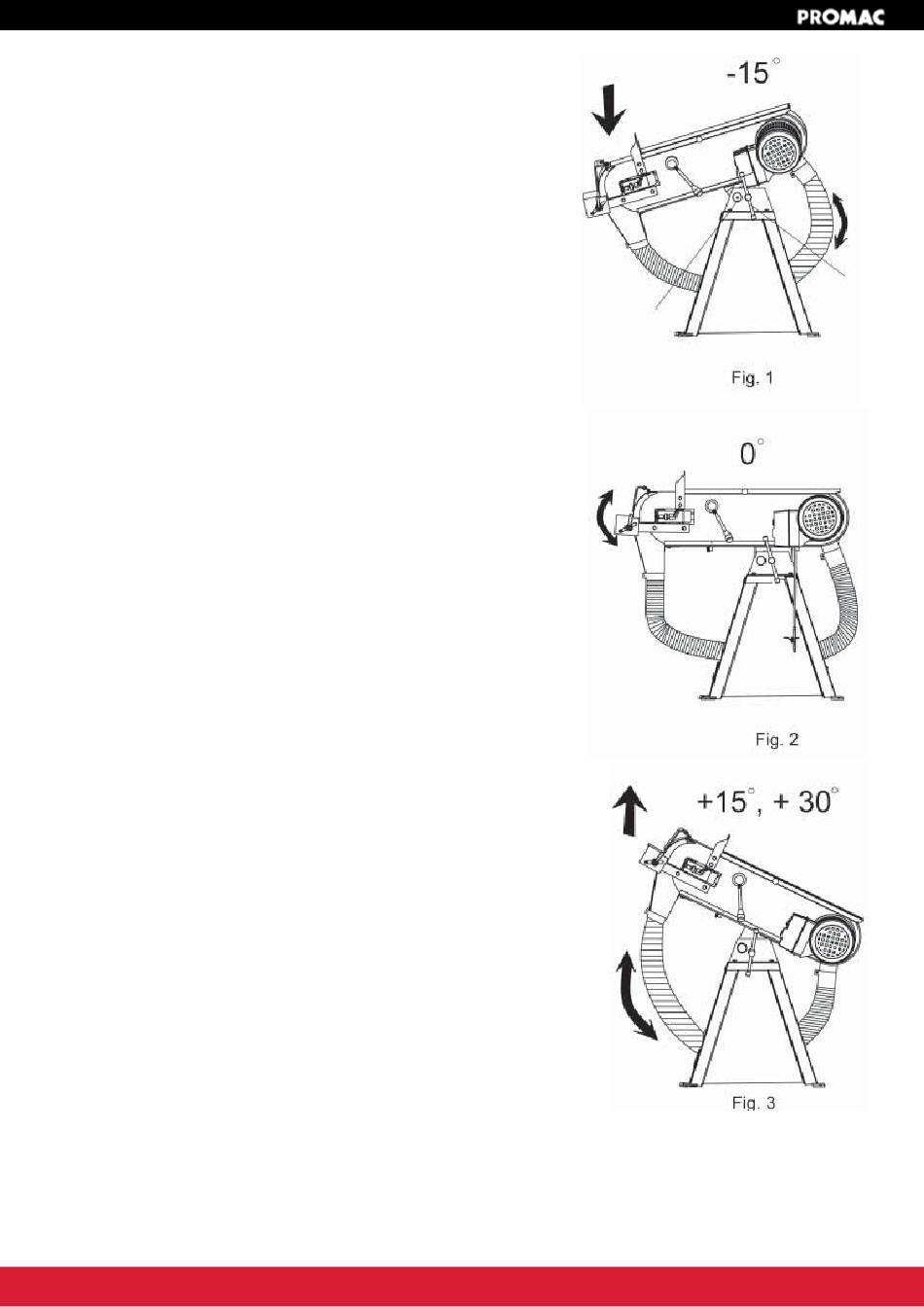

Position - 15°. Unlock the locking lever and disengage
the finger. Hold the machine by the front and push it
downwards. When the finger engages, retighten the
locking lever. Pull the aluminum hose to the right.
Position 0°. Unlock the locking lever and disengage the
finger. Hold the machine by the front and place it
horizontally. When the finger engages, retighten the
locking lever.
Positions + 15° / +30°. Unlock the locking lever and disengage
the pin. Hold the machine by the front and push it upwards.
When the pin engages, retighten the locking lever.
Stretch the aluminum hose to the left.
Positioning
finger
Locking lever
15
