Segway x2 Golf Installationsanleitung Seite 4

Front Support Bar
Front Support Bar End Cap
Fasteners, 35mm long
Installation Torque: 8 N-m (5.9 ft-lbf)

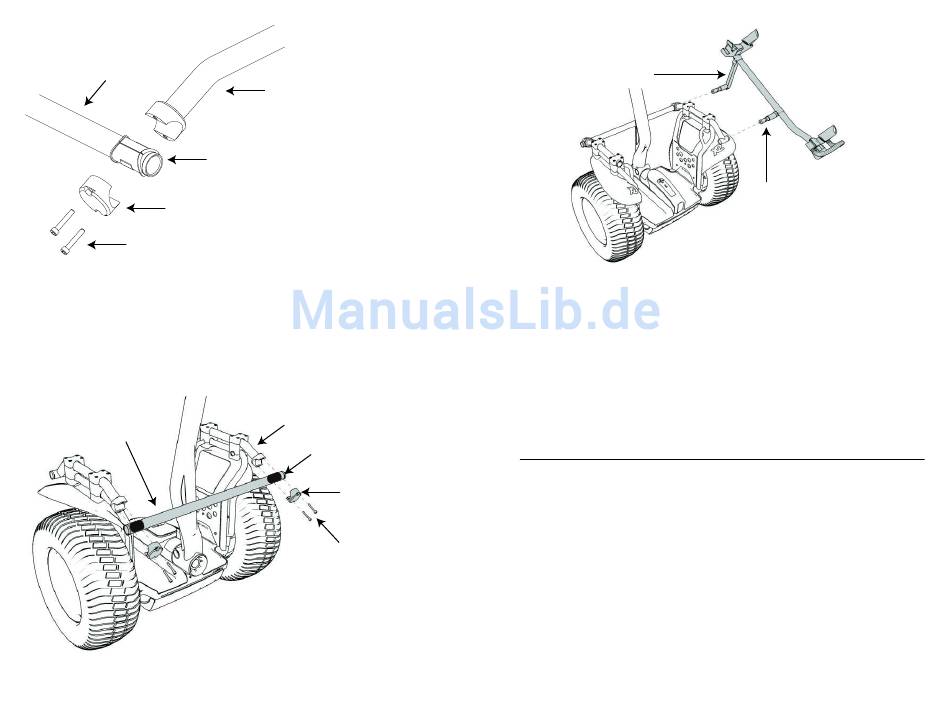

Figure 2a. Installing Front Support Bar
4. Adjust the position of the Front Support Bar by sliding Side Support Bars
forwards or backwards. You may need to further loosen the fasteners in the
Clamp Assemblies. Ensure that the Front Support Bar does not touch the Lean
Steer Frame and is parallel with the front of the x2. Once the Front Support Bar
is aligned properly, torque all 80mm fasteners in the Clamp Assemblies to 8 N-m
(5.9 ft-lbf) with a 5mm hex wrench.
Front Support Bar
Figure 2b. Installing Front Support Bar
Side Support Bar
Front Support Bar Bushing
Side Support Bar
Front Support Bar Bushing
Front Support Bar
End Cap
Fasteners, 35mm long
Installation Torque: 8 N-m (5.9 ft-lbf)
6
Moveable Extension Arm
Figure 3. Attaching the Golf Bag Holder
5. Attach the Golf Bag Holder by inserting the Moveable Extension Arm into the
opening at the end of the Front Support Bar. Insert the Static Extension Arm into
the opening in the end of the Side Support Bar (Long). See Figure 3. Keep the Golf
Bag Holder level and press both arms all the way into the openings.
6. Using a 5mm Hex Wrench, tighten the fi ttings on the Moveable and Static
Extension arms.
Attaching a Golf Bag to the Carrier
1. Tip the Segway PT back until it rests on the bottom of the Golf Bag Holder.
2. Place your golf bag into the two cradles.
3. Secure the straps from both cradles around the golf bag.
Static Extension Arm
7
