Segway x2 Golf Installationsanleitung Seite 3

x2 Golf Bag Carrier & Rack
18945-00001 Carrier • 20876-00001 Rack
Tools required
5mm hex wrench
(1) Golf Bag Holder
(1) Front Support Bar
(2) Front Support Bar Bushing
(2) Front Support Bar End Cap
(1) Side Support Bar (Short)
(1) Side Support Bar (Long)
(4) Clamp Assemblies
(4) Clamp Assembly Bushings - Tube shaped
(4) Clamp Assembly Bushings - T shaped
(16) Clamps Fasteners, 80mm Long
(4) Support Bar End Cap Fasteners,
Installation instructions for all Segway x2 Turf models
1. Make sure the Segway PT is unplugged and powered off.
Front Support Bar
Side Support
Bar (Short)
Clamp Assemblies
x2 Golf Components

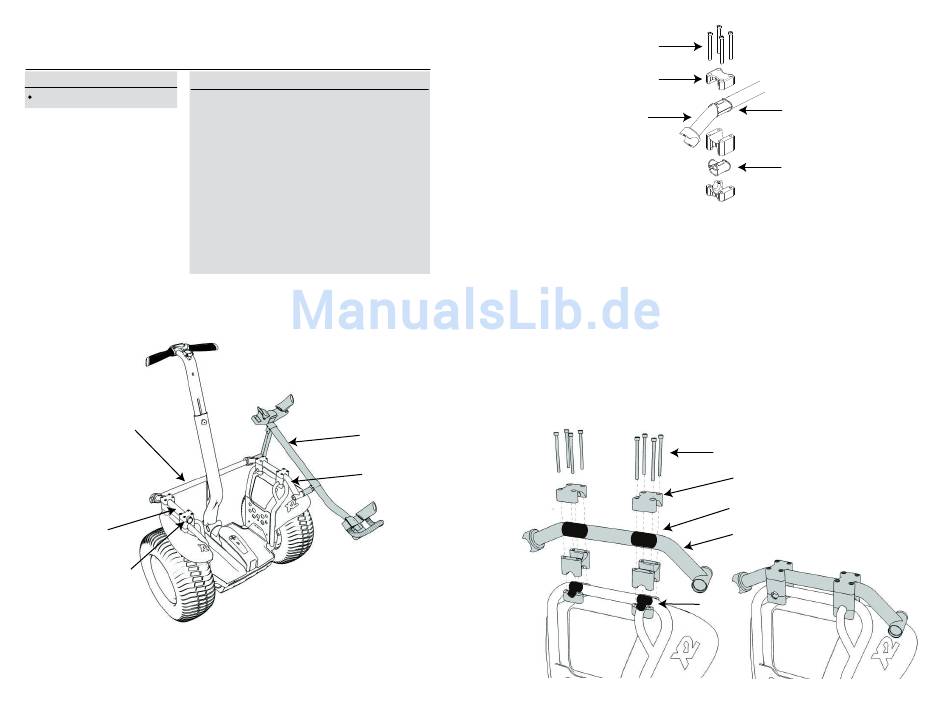

2. Position the Clamp Assemblies onto the x2 Fender Frame and Side Support Bar.
See Figure 1b. Attach (2) Tube shaped bushings on the Side Support Bar to align
with the Clamp Assembly. Attach (2) T shaped bushings on the x2 Fender Frame
Included with kit
35mm Long
Golf Bag Holder
Side Support
Bar (Long)
4
Fasteners, 80mm long
Installation Torque: 8 N-m (5.9 ft-lbf)
Clamp Assembly
Side Support Bar
Figure 1a. Installing the Side Support Bars
to align with Clamp Assembly. See Figures 1a and 1b. Loosely thread (4) 80mm
long fasteners into each Clamp Assembly. Do not tighten. Install both Side
Support Bars.
3. Install the Front Support Bar onto the Side Support Bars using the Front
Support Bar End Caps. See Figure 2b. Attach (2) Front Support Bushings on
the Front Support Bar to align with the End Caps. See Figure 2a. Loosely thread
(2) 35mm fasteners into each end cap. See Figures 2a and 2b. Ensure that the
Front Support Bar has equal overlap at either end of the end cap. Using a 5mm
hex wrench, tighten the 35mm fasteners to 8 N-m (5.9 ft-lbf) to secure the Front
Support Bar in place.
Figure 1b. Installing the Side Support Bars
Bushing, Tube Shaped
Bushing, T-Shaped
Fasteners, 80mm long
Installation Torque: 8 N-m (5.9 ft-lbf)
Clamp Assembly
Bushing, Tube Shaped
Side Support Bar (Long)
Bushing
T-Shaped
