Connecting the display
cable

Final steps

NOTICE!
Malfunction as a result of errors in installation
If cables are strained during installation, e.g. with sharp bends or kinked connec-
tors, this may result in faulty displays and failure of the display.
► Route all cables to prevent sharp bends and kinked connectors.
► Provide strain relief by routing all cables in the relevant holders.
1. Lift the scale so that the underneath of the weighing platform is accessible.
NOTE
You can support the scale on the rail for this installation work.

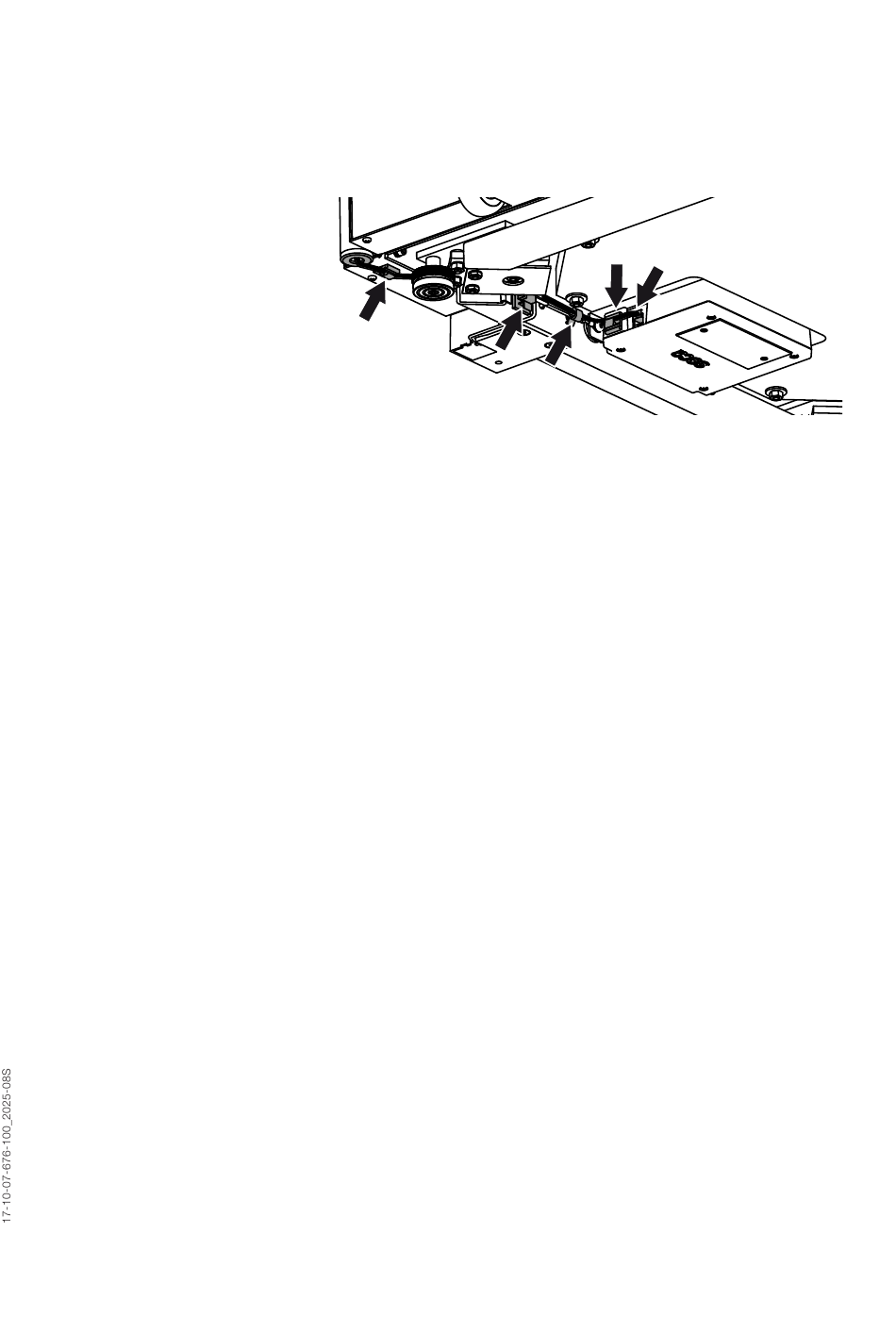

2. Guide the display cable under the weighing platform to the electronics box as
shown in the figure.
3. Connect the display cable to the electronics box.
4. Press the factory-fitted cable clip attached to the display cable into the hole in the
frame of the scale until you feel it engage.
5. Press the display cable into the cable clips on the frame of the scale until you feel
them engage.
6. Set the scale upright.
1. Ensure that all components are correctly located.
2. Ensure that all screws are fully tightened.
