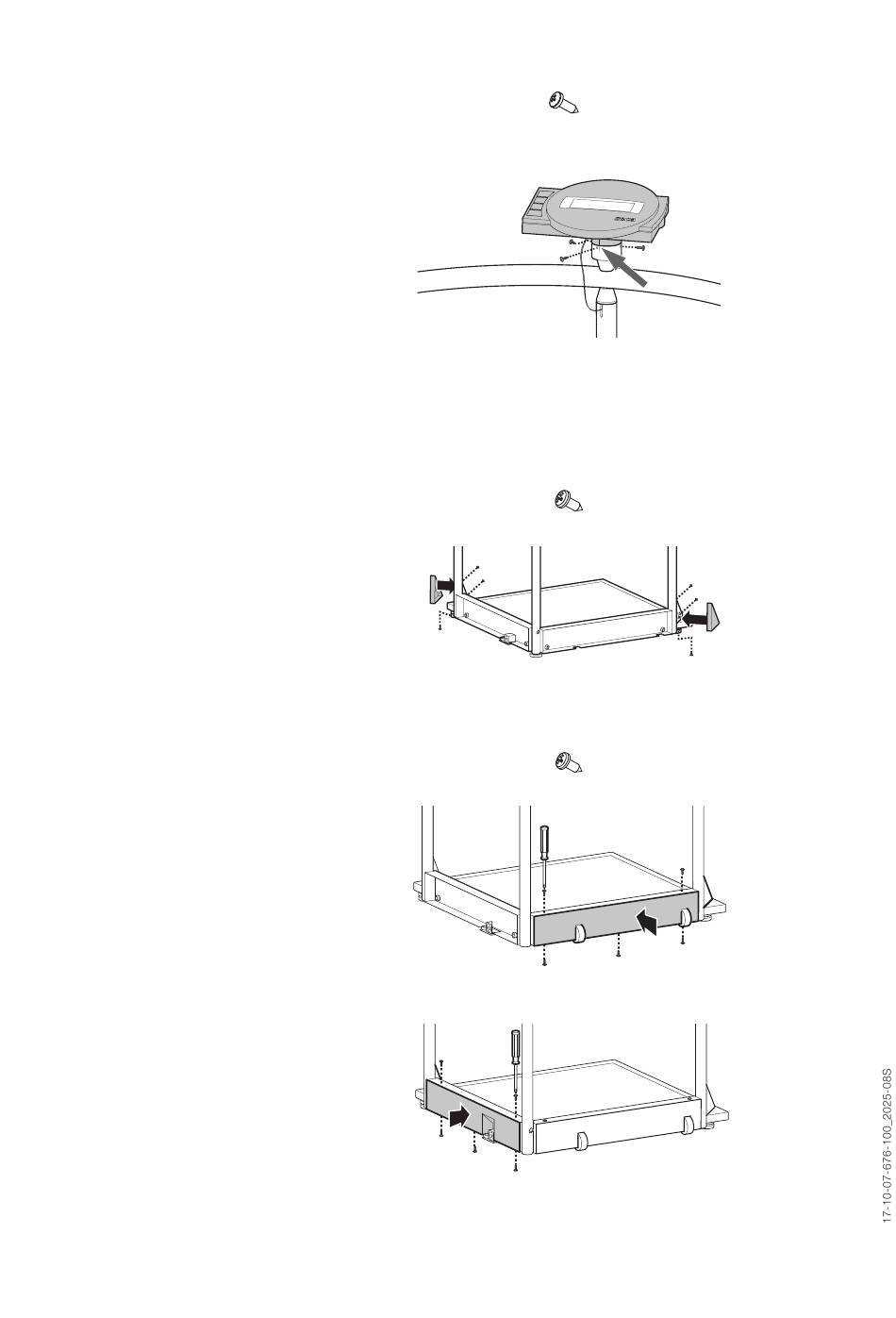

Fitting the display housing

Fitting the triangular cover
panels
Fitting the caster and side
52 • seca 645/seca 644
You need the following connecting elements for this assembly step:
1. Remove the transport lock from the display housing.
2. Place the display housing on the display bracket so that the position markings are
aligned.
3. Attach the display housing to the display bracket with the pan-head tapping screws
(2 Nm).
You need the following connecting elements for this assembly step:
1. Place a cover on each of the handrail supports' triangular reinforcements.
2. Attach the covers with three pan-head tapping screws each (1 Nm).
You need the following connecting elements for this assembly step:
bars
1. Place the caster bar on the rear handrail support as shown in the figure above.
2. Attach the caster bar with 5 pan-head tapping screws (1 Nm).
3. Place the side bar on the right handrail support as shown in the figure above.
4. Attach the side bar with 5 pan-head tapping screws (1 Nm).
3x pan-head tapping screw 2.9 x 9.5
6x pan-head tapping screw 3.5 x 9.5
10x pan-head tapping screw 3.5 x 9.5
