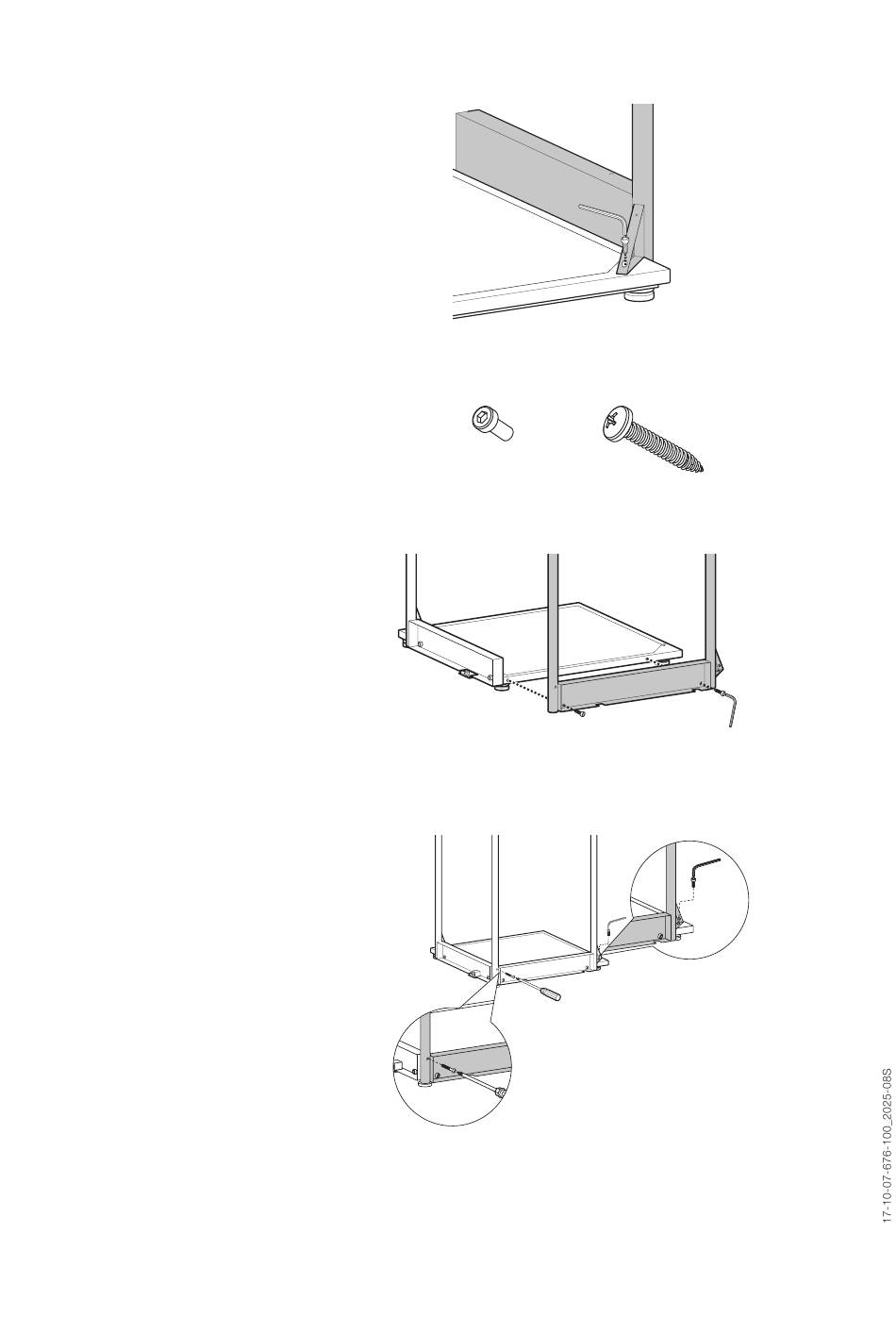

Fitting the rear handrail
support
50 • seca 645/seca 644
2. Fasten the handrail support to the weighing platform with two hex head socket
screws (4 Nm).
3. Fasten the triangular reinforcement to the weighing platform with two hex head
socket screws (4 Nm).
You need the following connecting elements for this assembly step:
3x hex head socket
screw M5 x 12
1. Attach the rear handrail support to the weighing platform as shown in the figure
above.
2. Fasten the rear handrail support to the weighing platform with two hex head socket
screws (4 Nm).
3. Fasten the triangular reinforcement to the weighing platform with two hex head
socket screws (4 Nm).
4. Connect the two handrail supports with a tapping screw as shown in the figure
above (4 Nm).
1x pan-head tapping
screw 6.3 x 38
