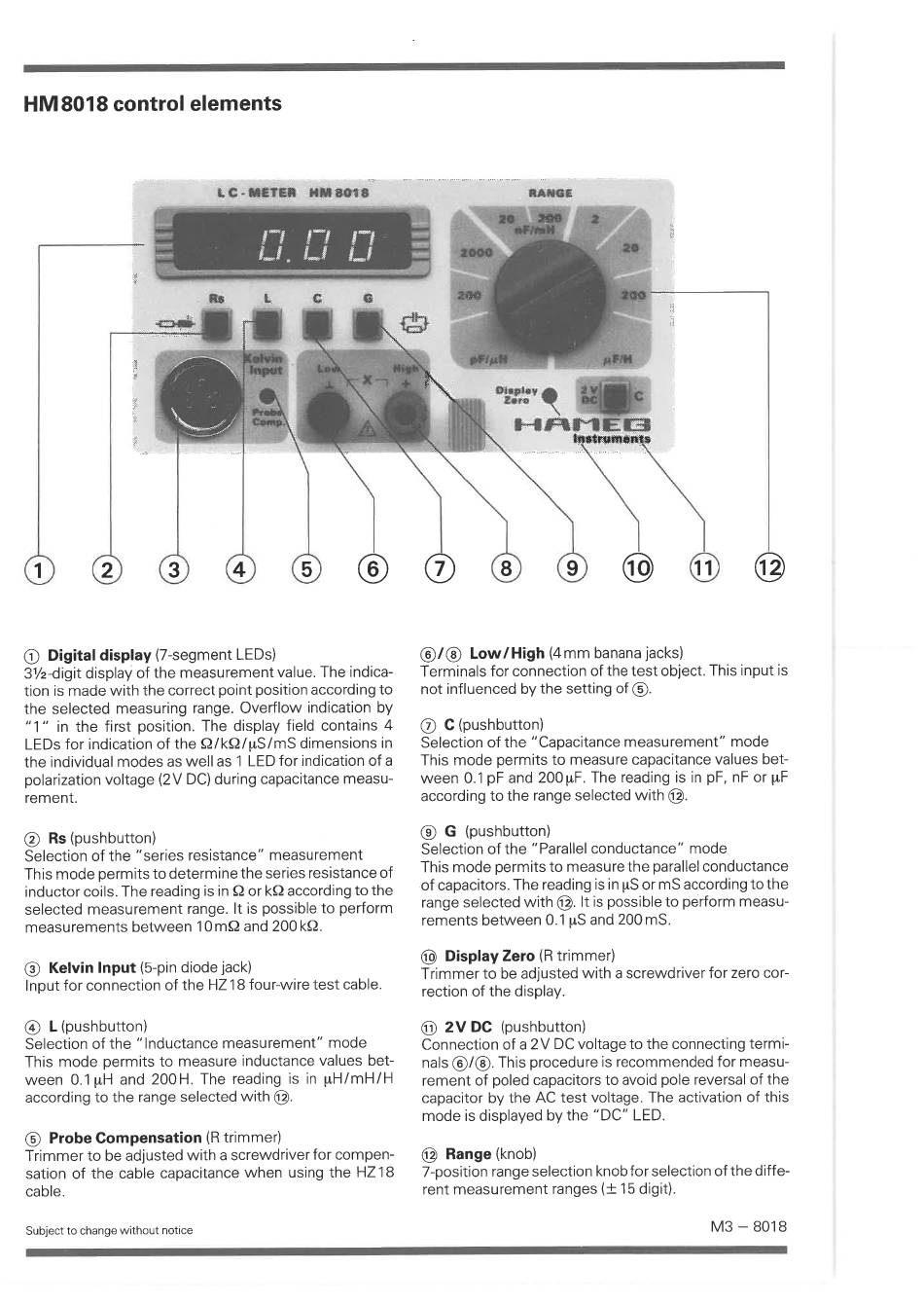

HM 8018 control elements
3
1 2
(S ) Digital display (7-segment LEDs)
31/2-digitdisplay of the measurement value. The indica-
tion is made with the correct point position according to
the selected measuring range. Overflow indication by
"I" in the first position. The display field contains 4
LEDs for indication of the Q/kQ/gS/mS
the individual modes as well as 1 LED for indication of a
polarization voltage (2V DC) during capacitance measu-
rement.
@ Rs (pushbutton)
Selection of the "series resistance"
This mode permits to determine the series resistance of
inductor coils. The reading is in Q or kQ according to the
selected measurement range. It is possible to perform
measurements between I O mQ and 200 kQ.
@ Kelvin Input (5-pindiode jack)
Input for connection of the HZ 18 four-wire test cable.
@ L (pushbutton)
Selection of the " Inductance
This mode permits to measure inductance values bet-
ween 0.1 and 200H. The reading is in PH/mH/H
according to the range selected with @.
@ Probe Compensation
Trimmer to be adjusted with a screwdriver for compen-
sation of the cable capacitance when using the HZ18
cable.
Subject to change without notice
L C.METEÄ HMØ018
/-7.L/ 1.7
L c
4 5 6
dimensions in
measurement
measurement" mode
(R trimmer)
RANGE
2000
9
8
7
@/@ Low/ High (4mm bananajacks)
Terminals for connection of the test object. This input is
not influenced by the setting of @.
@ C (pushbutton)
Selection of the "Capacitance
This mode permits to measure capacitance values bet-
ween O.1pF and 200pF. The reading is in pF, nF or pF
according to the range selected with @.
@ G (pushbutton)
Selection of the "Parallel conductance"
This mode permits to measure the parallel conductance
of capacitors. The reading is in gS or mS according to the
range selected with@. It is possible to perform measu-
rements between O.I gS and 200mS,
@ Display Zero (Rtrimmer)
Trimmer to be adjusted with a screwdriver for zero cor-
rection of the display.
0 2V DC (pushbutton)
Connection of a 2V DC voltage to the connecting termi-
nals@/@. This procedure is recommended for measu-
rement of poled capacitors to avoid pole reversal of the
capacitor by the AC test voltage. The activation of this
mode is displayed by the "DC" LED.
@ Range (knob)
7-position range selection knob for selection of the diffe-
rent measurement ranges
@ II
measurement" mode
mode
15 digit).
M3 - 8018
