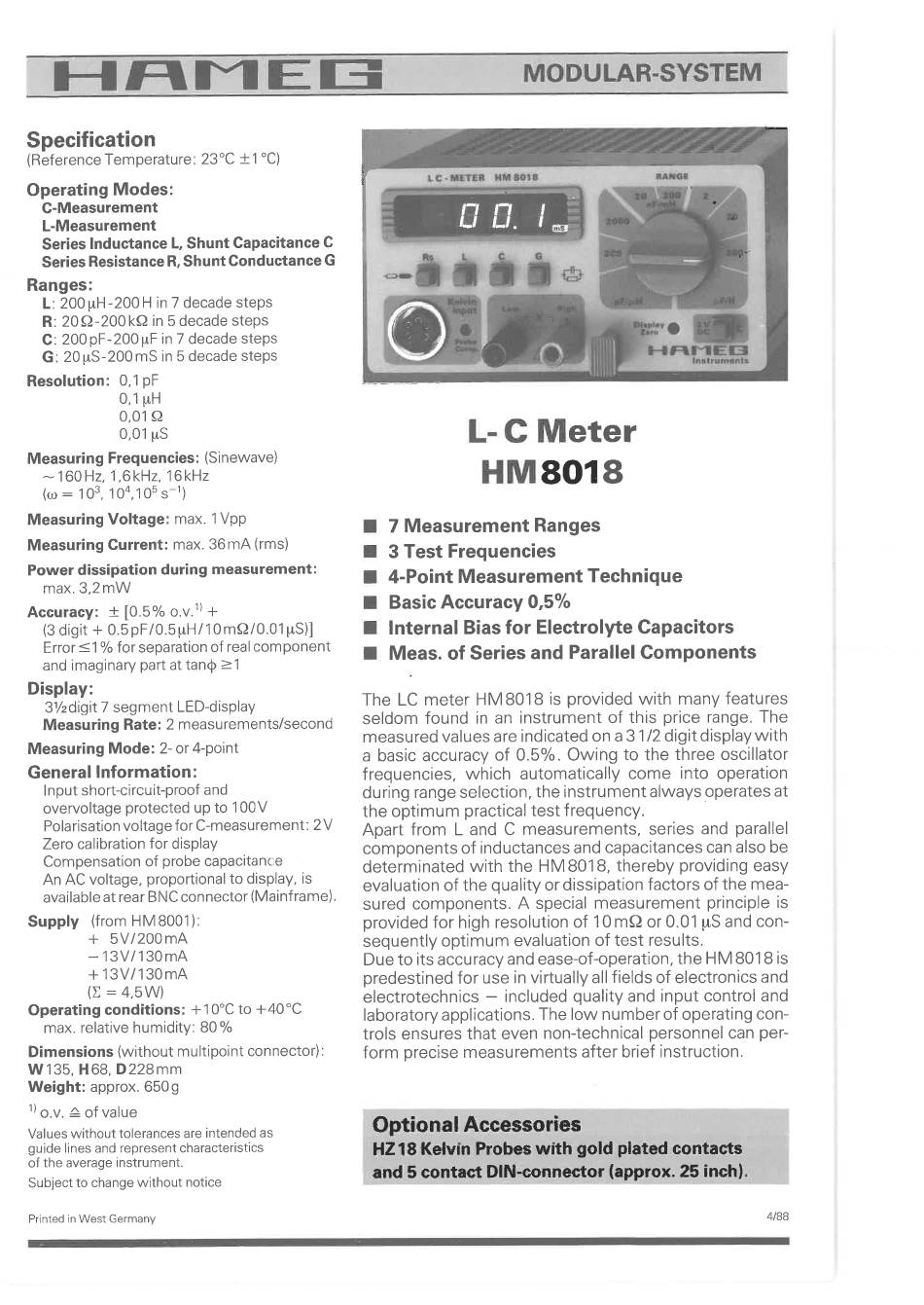

Specification
(Reference Temperature: 230C ± 1oc)
Operating Modes:
C-Measurement
L-Measurement
Series Inductance L, Shunt Capacitance
Series Resistance R, Shunt Conductance
Ranges:
L: 200 gH-200 H in 7 decade steps
R: 20Q-200kQ in 5 decade steps
C: 200pF-200gF in 7 decade steps
G: 20 gS-200mS in 5 decade steps
Resolution: 0, 1 pF
0.01 Q
0.01 us
Measuring Frequencies: (Sinewave)
160 Hz, 1,6kHz. 16kHz
= 103, 104,105 s-l)
Measuring Voltage: max. 1Vpp
Measuring Current: max. 36mA (rms)
Power dissipation during
max. mw
Accuracy: ± [0.5% o.v.l) +
(3 digit + 0.5pF/O.5gH/10mQ/O.01
Error SI % for separation of real component
and imaginary part at tan<) 21
Display:
31/2digit 7 segment LED-display
Measuring Rate: 2 measurements/second
Measuring Mode: 2- or 4-point
General Information:
Input short-circuit-proof
overvoltage protected up to 1OCV
Polarisation voltage for C-measurement: 2V
Zero calibration for display
Compensation of probe capacitance
An AC voltage. proportional to display, is
available at rear BNC connector (Mainframe).
Supply (from HM 8001):
+ 5V/200mA
— 13V/130mA
+ 13V/130mA
(E = 4.5W)
Operating conditions: + 1OOC to +400C
max. relative humidity: 80%
Dimensions (without multipoint connector) :
W 135, H68, D228mm
Weight: approx. 650g
1 ) o.v. of value
Values without tolerances are intended
guide lines and represent characteristics
of the average instrument.
Subject to change without notice
Printed in West Germany
C
G
measurement:
gS)1
The LC meter HM8018 is provided with many features
seldom found in an instrument of this price range. The
measured values are indicated on a 3 1/2 digit display with
a basic accuracy of 0.5%. Owing to the three oscillator
frequencies, which automatically come into operation
and
during range selection, the instrument always operates at
the optimum practical test frequency.
Apart from L and C measurements,
components of inductances and capacitances can also be
determinated with the HM8018, thereby providing easy
evaluation of the quality or dissipation factors of the mea-
sured components. A special measurement principle is
provided for high resolution of 10mQ or 0.01 gS and con-
sequently optimum evaluation of test results.
Due to its accuracy and ease-of-operation, the HM 8018 is
predestined for use in virtually all fields of electronics and
electrotechnics
laboratory applications. The low number of operating con-
trols ensures that even non-technical
form precise measurements after brief instruction.

Optional Accessories

as
HZ 18 Kelvin Probes with gold plated contacts
and 5 contact DIN-connector (approx. 25 inch).
MODULAR-SYSTEM
C - METER HM 8018
CIOI
L- C Meter
HM8018
7 Measurement Ranges
3 Test Frequencies
4-Point Measurement
Basic Accuracy 0,5%
Internal Bias for Electrolyte
Meas. of Series and Parallel Components
— included quality and input control and
RANGE
2000
ins' ' u men t'
Technique
Capacitors
series and parallel
personnel can per-
