EN

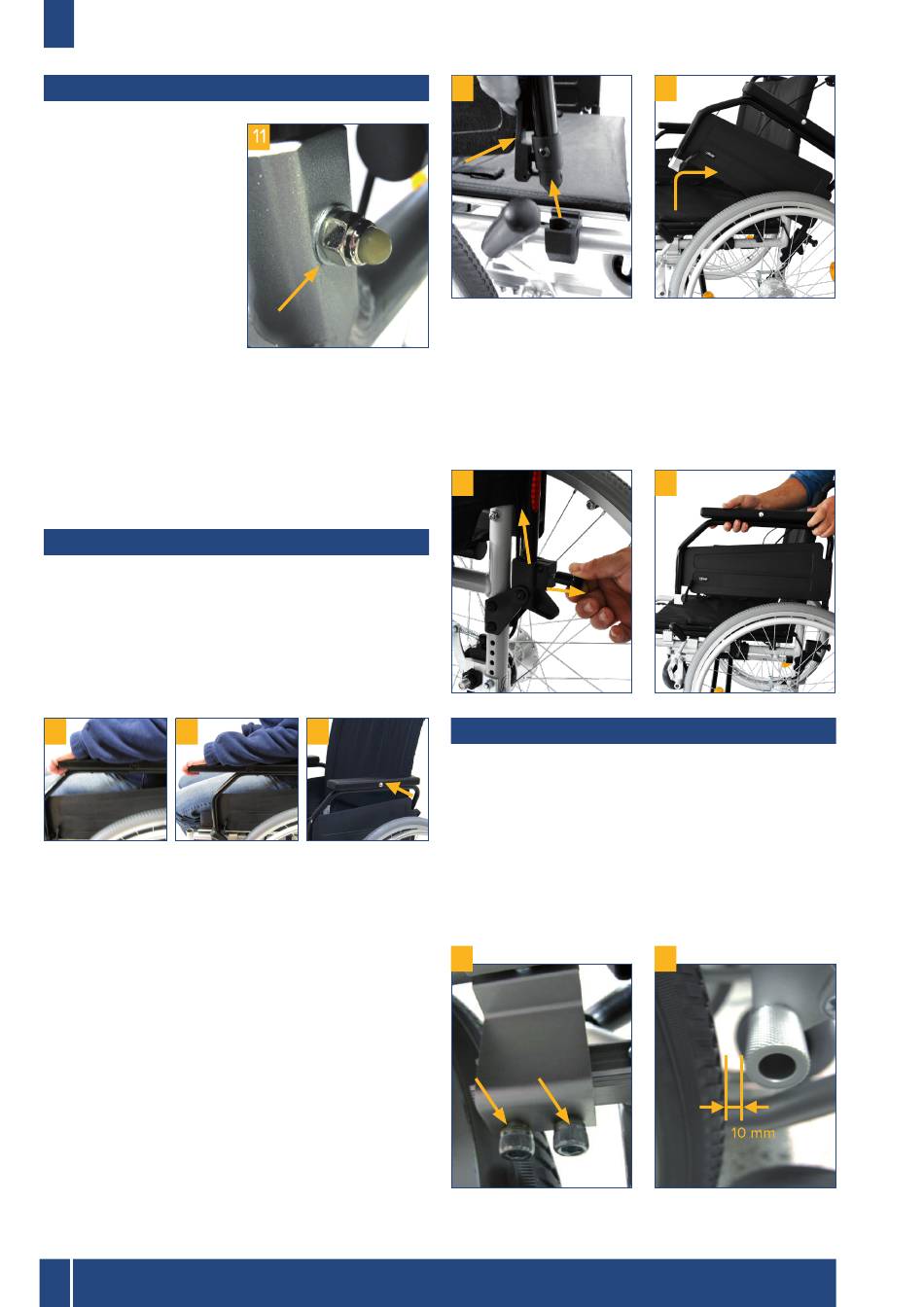

Adjusting the height of the backrest

The height of the backrest
can be adjusted in incre-
ments.
Note: When the backrest
is adjusted, the height of
the push handles is also
automatically adjusted.
To adjust the backrest,
remove the left and right
nuts under the guide tube
of the backrest (photo 11).
Pull the screws out. Now adjust the desired height by
pulling or pushing on the respective push handle.
Reinsert the screws, put on the knurled nuts and tighten
them.
Always ensure that both sides are adjusted identically.

Adjusting and removing armrests

The armrests are already assembled on the wheelchair
upon delivery. The armrest overlay can be adjusted as a
short or long arm support as needed (photo 12+13)
To set, press the spring button in the middle on the out-
side of the armrest overlay (photo 14); this can now be
pushed into the desired position.
12 13
The spring button must lock back into position after ad-
justment. Select the closest position, if necessary.
To swivel the armrest backwards, engage the release le-
ver at the front of the armrest and hold it down it while
simultaneously pulling the armrest up until the armrest is
free. Now it can be swiveled backwards (photo 15+16).
18
Drive Medical GmbH & Co. KG | As per: 02.07.2024 | Errors and alterations excepted
15
If you would like to completely remove the armrests, re-
lease them in the front as described above and lift them
slightly so that they are free.
Now release the entire armrest by pulling and pressing
the rear release button (photo 17). This can now be remo-
ved by lifting off (photo 18).
17

Adjusting and using the parking brake

14
Upon delivery, the parking brake is correctly adjusted
according to the configuration status. If you have made
changes to the wheel position, the brake adjustment
may need to be changed.
To do this, remove both screws on the underside of the
respective brake (photo 19) and push the complete unit
onto the guide such that there is a distance of 10 mm
between the brake bolt and the tire (photo 20). Retigh-
ten both screws and the parking brake is now optimally
adjusted.
19
16
18
20
Instructions for use ROTEC
