4.0 Assembly

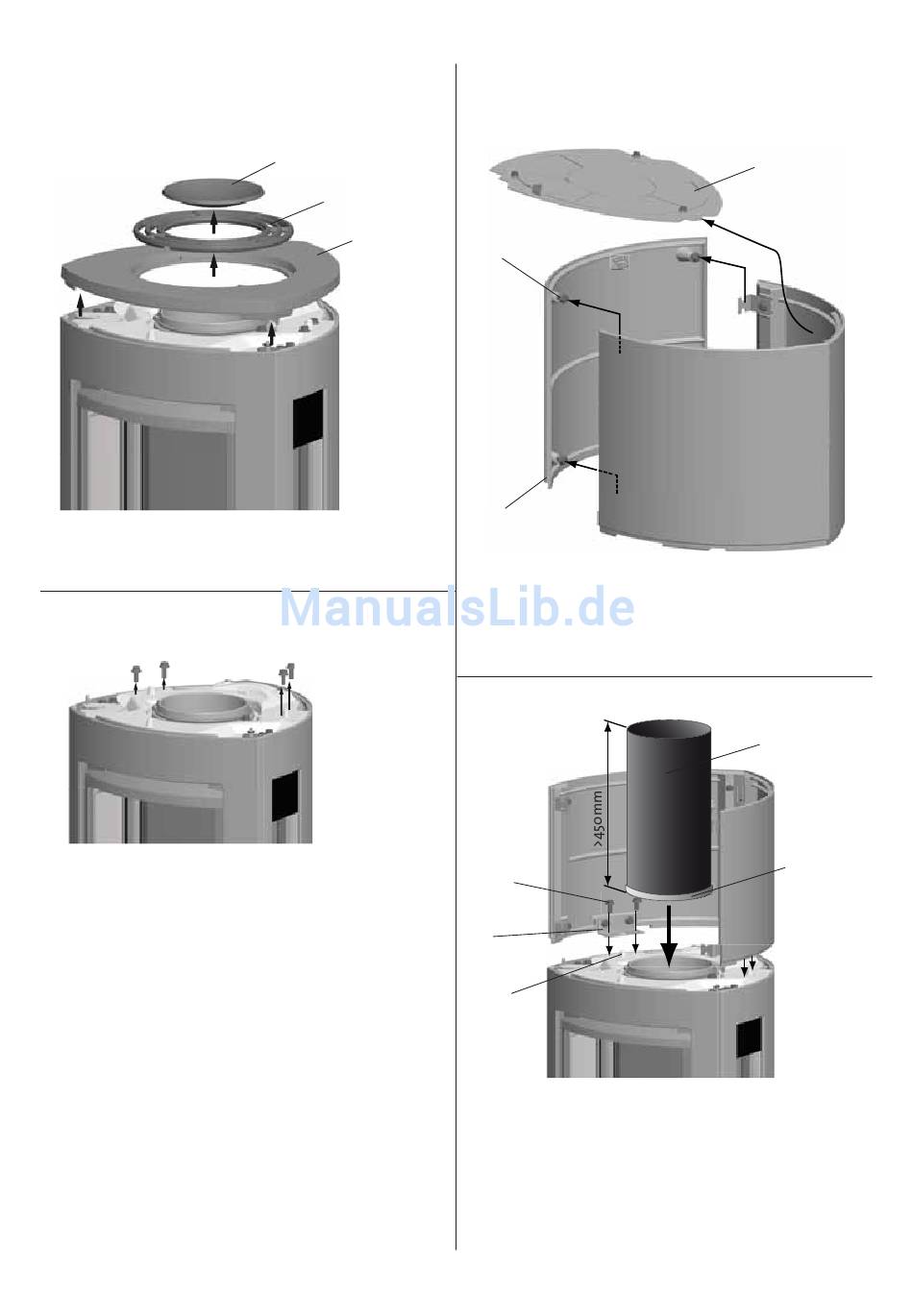

Fig. 1
Remove the top plate (C) with the top grid (B) and the bowl (A).
Fig. 2
Remove the screws (M8x25)
A
B
C
Fig. 3
B
A
1. Unpack the High Top elements.
2. Remove the front panel (A) by loosening the four screws
(M8x16) (B).
3. Remove the sector valve by tilting it out (C).
Fig. 4
C
B
A
1. Place the High Top sides on the top of the burn chamber.
Make sure that the pins (A) meet the holes in the brackets
(B).
2. Mount the four screws (C) previously removed (see fig. 2).
Tighten well.
3. With a top outlet, the flue pipe (D) and the gasket (E) have
to be mounted now.
ENGLISH
C
D
E
