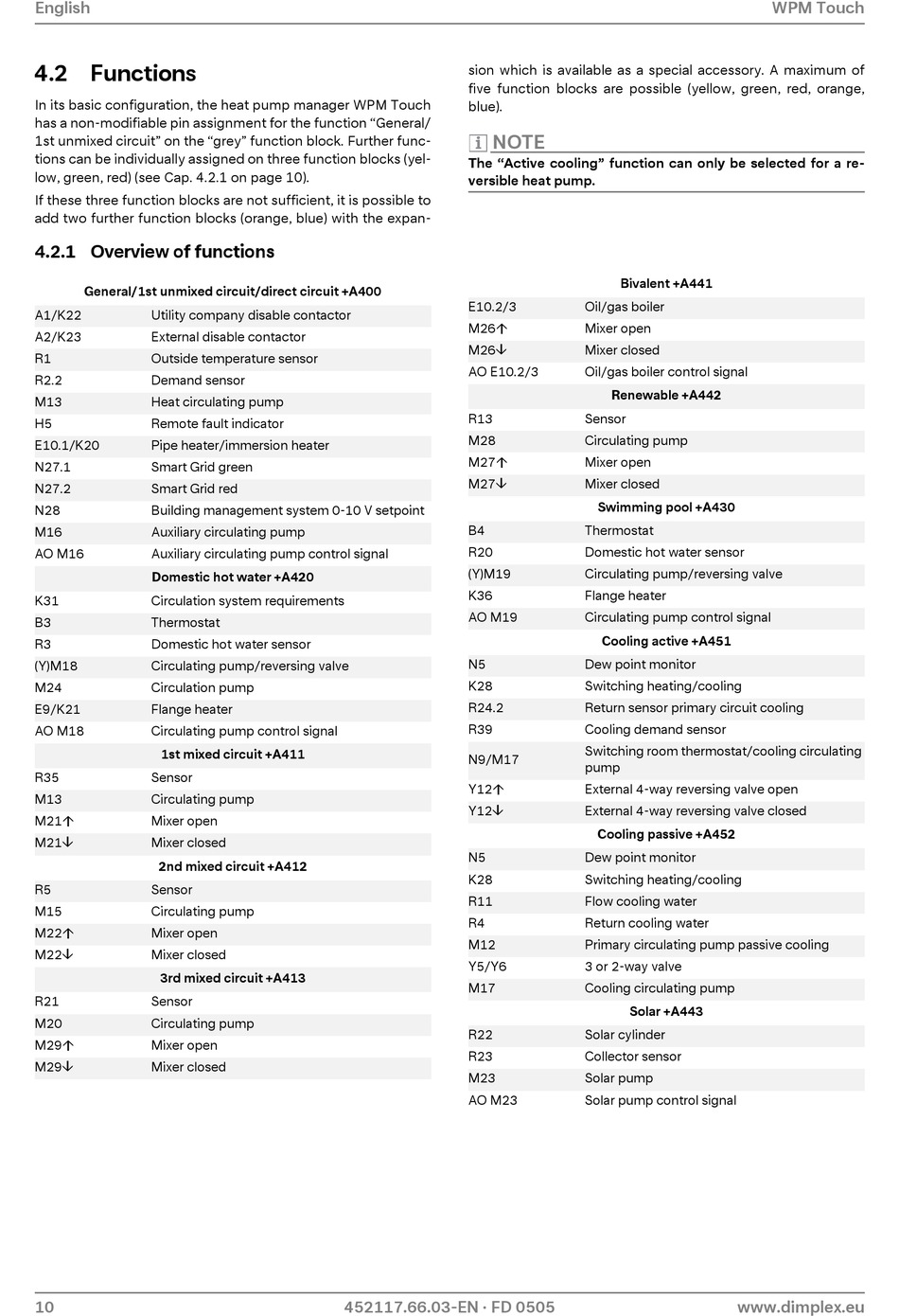

4.2 Functions

In its basic configuration, the heat pump manager WPM Touch
has a non-modifiable pin assignment for the function "General/
1st unmixed circuit" on the "grey" function block. Further func-
tions can be individually assigned on three function blocks (yel-
low, green, red) (see Cap. 4.2.1 on page 10).
If these three function blocks are not sufficient, it is possible to
add two further function blocks (orange, blue) with the expan-

4.2.1 Overview of functions

General/1st unmixed circuit/direct circuit +A400
A1/K22 Utility company disable contactor
A2/K23 External disable contactor
R1 Outside temperature sensor
R2.2 Demand sensor
M13 Heat circulating pump
H5 Remote fault indicator
E10.1/K20 Pipe heater/immersion heater
N27.1 Smart Grid green
N27.2 Smart Grid red
N28 Building management system 0-10 V setpoint
M16 Auxiliary circulating pump
AO M16 Auxiliary circulating pump control signal
Domestic hot water +A420
K31 Circulation system requirements
B3 Thermostat
R3 Domestic hot water sensor
(Y)M18 Circulating pump/reversing valve
M24 Circulation pump
E9/K21 Flange heater
AO M18 Circulating pump control signal
1st mixed circuit +A411
R35 Sensor
M13 Circulating pump
M21 Mixer open
M21 Mixer closed
2nd mixed circuit +A412
R5 Sensor
M15 Circulating pump
M22 Mixer open
M22 Mixer closed
3rd mixed circuit +A413
R21 Sensor
M20 Circulating pump
M29 Mixer open
M29 Mixer closed
10
sion which is available as a special accessory. A maximum of
five function blocks are possible (yellow, green, red, orange,
blue).
HINWEIS
NOTE
The "Active cooling" function can only be selected for a re-
versible heat pump.
E10.2/3
M26
M26
AO E10.2/3
R13
M28
M27
M27
B4
R20
(Y)M19
K36
AO M19
N5
K28
R24.2
R39
N9/M17
Y12
Y12
N5
K28
R11
R4
M12
Y5/Y6
M17
R22
R23
M23
AO M23
452117.66.03-EN · FD 0505
Bivalent +A441
Oil/gas boiler
Mixer open
Mixer closed
Oil/gas boiler control signal
Renewable +A442
Sensor
Circulating pump
Mixer open
Mixer closed
Swimming pool +A430
Thermostat
Domestic hot water sensor
Circulating pump/reversing valve
Flange heater
Circulating pump control signal
Cooling active +A451
Dew point monitor
Switching heating/cooling
Return sensor primary circuit cooling
Cooling demand sensor
Switching room thermostat/cooling circulating
pump
External 4-way reversing valve open
External 4-way reversing valve closed
Cooling passive +A452
Dew point monitor
Switching heating/cooling
Flow cooling water
Return cooling water
Primary circulating pump passive cooling
3 or 2-way valve
Cooling circulating pump
Solar +A443
Solar cylinder
Collector sensor
Solar pump
Solar pump control signal
